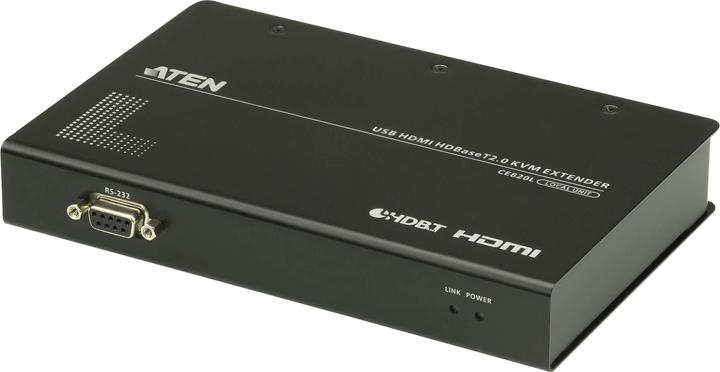

Aten CE820L-ATA-G Console Extender (local unit)

CE820-ATA is identical to the CE820, but without the Ethernet port. The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, and RS-232 signals up to 100 meters with a Cat 6/2L-2910 Cat 6 cable. The HDBaseT 2.0 guarantees the most reliable transmission on the market and enables a long range that extends Full HD 1080P signals up to 150 meters. With a simple cable installation that supports multiple signals, the CE820 is ideal for applications where convenient remote access is required, such as transport control centers, medical facilities, industrial warehouses, and advanced workstations.

Scope of delivery:

• 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Device)
• 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Device)
• 1x LIN5-28V1-V11G HDMI KVM cable set (HDMI, USB, Audio; 1.8 m/6 ft)
• 2x 0AD6-1F05-26EG power supply units
• 2x mounting sets
• 1x user manual

Supports HDBaseT 2.0 technology:

• Extends video, audio, USB, RS-232, and Ethernet signals over a single Cat 6/6a cable/2L-2910 Cat 6 cable
• Enhanced bit error detection and correction to resist signal interference in high-quality video transmissions
• Status detection and LED indication for HDBaseT signal transmission on the remote unit
• EDID buffer for smooth power-up and display in highest quality
• HDMI (3D, Deep Colour, 1080P, 4K); HDCP 2.2 compatible
• Superior video quality over long distances: HDBaseT standard mode up to 4K at 100 m (Cat 6/6a / 2L-2910), HDBaseT long range mode up to 1080P at 150 m
• Long range mode switch - switches between HDBaseT standard and long range mode
• Supports individual 2-channel stereo audio and USB 2.0 full speed ports
• Supports PC wake up function via single push button over RS-232 channel (Computer must support Wake Up Ring for this function to work)
• Built-in 8 KV/15 KV ESD protection (touch voltage 8 KV; air voltage 15 KV).
