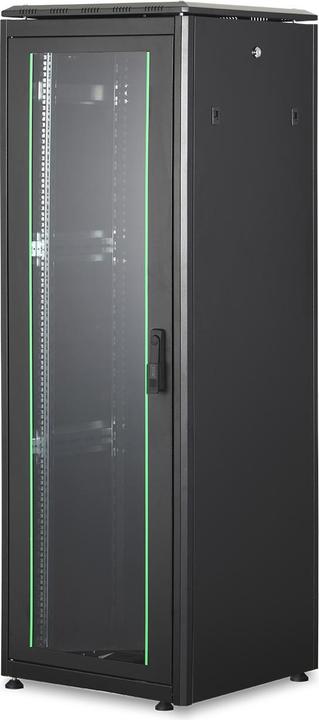

Assmann DIGITUS 36U network cabinet 1787x600x600 mm color black RAL 9005

The DIGITUS® Unique Series is designed and developed to meet the high demands of IT infrastructure.

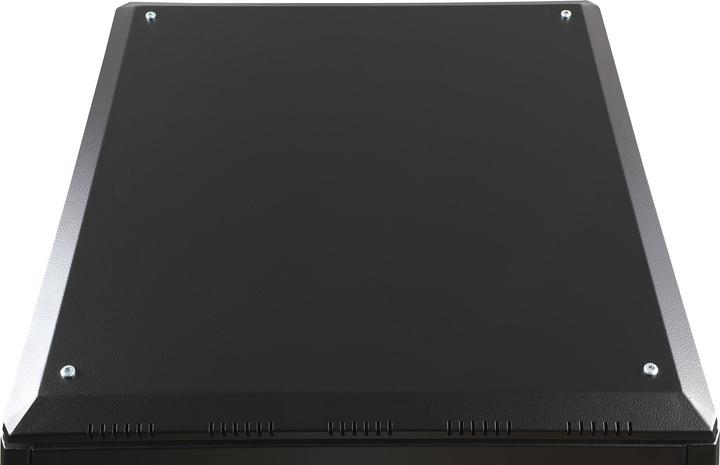

• The roof is prepared for the installation of a fan unit and features a removable cover.
• Locking system with a swivel lever handle on the front door (prepared for the installation of a profile half-cylinder; adapter included).

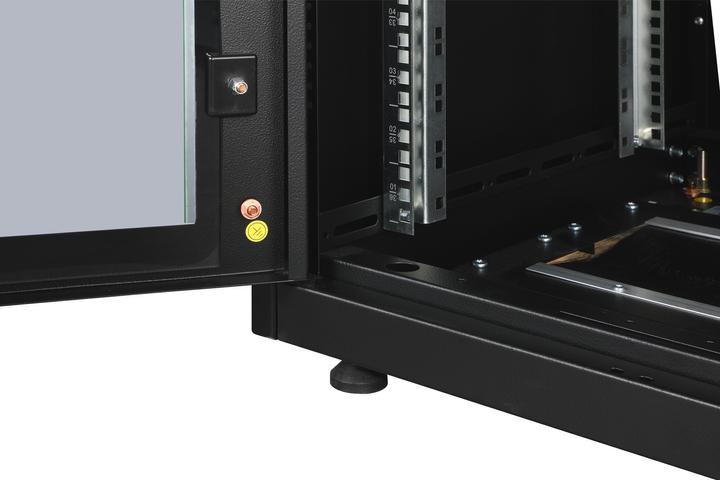

• Slide-in cable entry with foam rubber seal in the base.

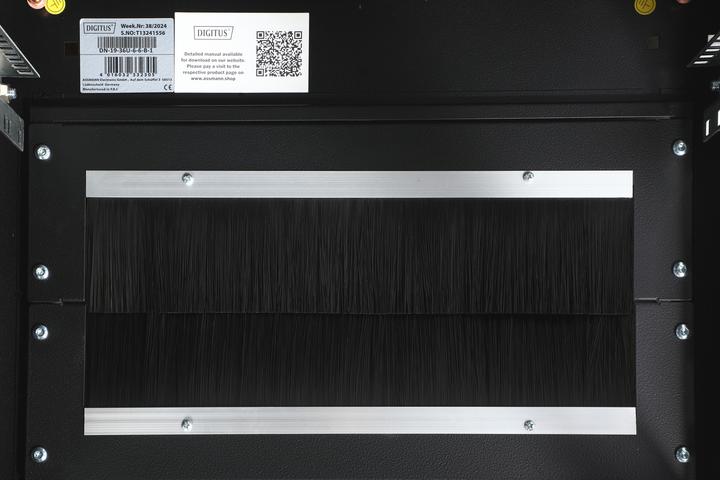

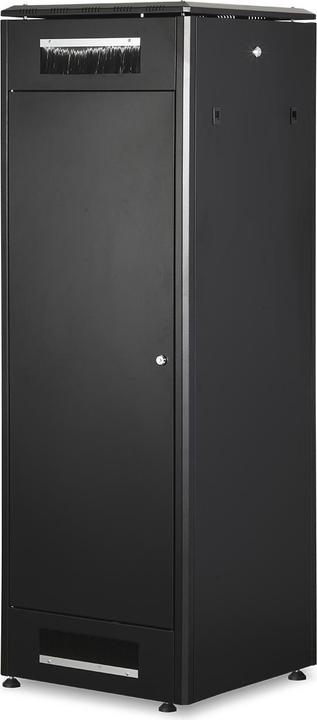

The network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Brush-equipped entries in the roof and floor (from 26U and 800 mm cabinet width), a slide-in entry in the base chassis with foam rubber seal, and rear brush strips above and below the rear door (from 26U) enable versatile use in various application scenarios. Vertical cable management channels with covers, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation. This sits above a special construction for easy installation of a fan module.

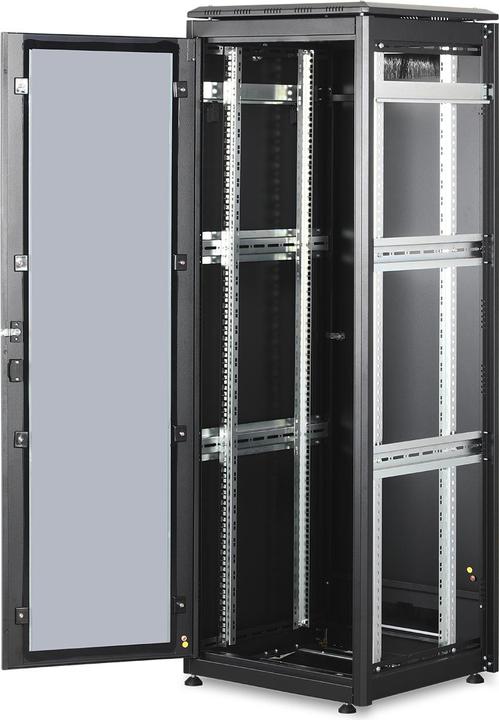

Two pairs of galvanized, height-adjustable 483 mm (19") profile rails, labeled for readability in both directions, are installed inside. They can be adjusted in depth and are connected with additional depth braces in the cabinet. Each cabinet is a robust steel construction made from up to 1.5 mm thick steel sheet. The color finish is done in the form of electrostatic powder coating in standard colors Grey (RAL 7035) and Black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge change can be made. Furthermore, the cabinets can be completely disassembled if necessary due to their modular construction.
