Arduino TSX00083 - Proto Shield Rev3 (Uno Size)

Shield
Ratings
Delivered between Fri, 6.6. and Tue, 17.6.
More than 10 items in stock at supplier

Product details

Proto Shield Rev3 (Uno Size)

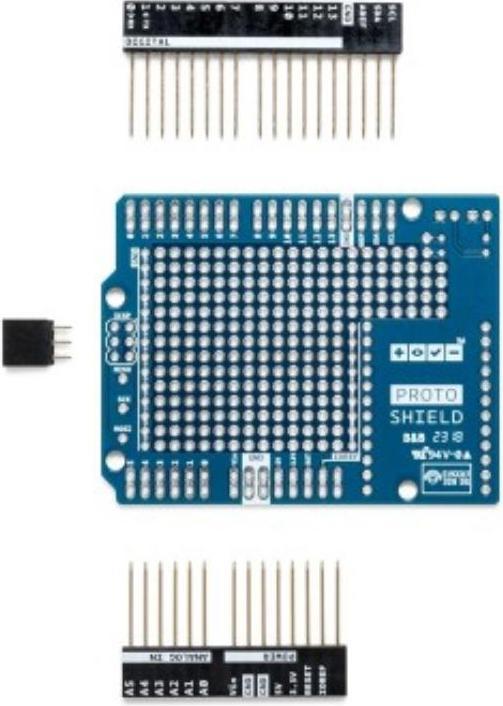

The ProtoShield makes it easy for you to design custom circuits. You can easily solder TH or SMD ICs on the prototyping area to test them with your Arduino board. The SMD area is designed for a maximum of 24 pins SOIC integrated circuit and the TH area contains a lot of space for the needed components around your project. You can even stick a mini breadboard (not included) on the protoarea for solderless operation. The proto area includes also two power lines (IOREF and GND), two LEDs pads and SPI signals breakout pads for boards with SPI only on the ICSP header like Zero.

Key Features:

  • 1.0 Arduino pinout
  • 1x ICSP connector footprint
  • 2x LEDs and resistor footprint
  • IOREF and GND power lines
  • SPI signal pads
  • 24-pin SMD footprint (50 mils pitch).

Key specifications

Compatible hardware
Arduino
Item number
22896244

General information

Manufacturer
Arduino
Category
Electronics modules
Manufacturer no.
TSX00083
Release date
1.11.2022

Compatibility

Compatible hardware
Arduino

Electronic module properties

Module type
Shield

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
16.50 cm
Width
12.40 cm
Height
2.60 cm
Weight
17 g
