Arduino A000093 - Micro without headers

Arduino Micro without Headers

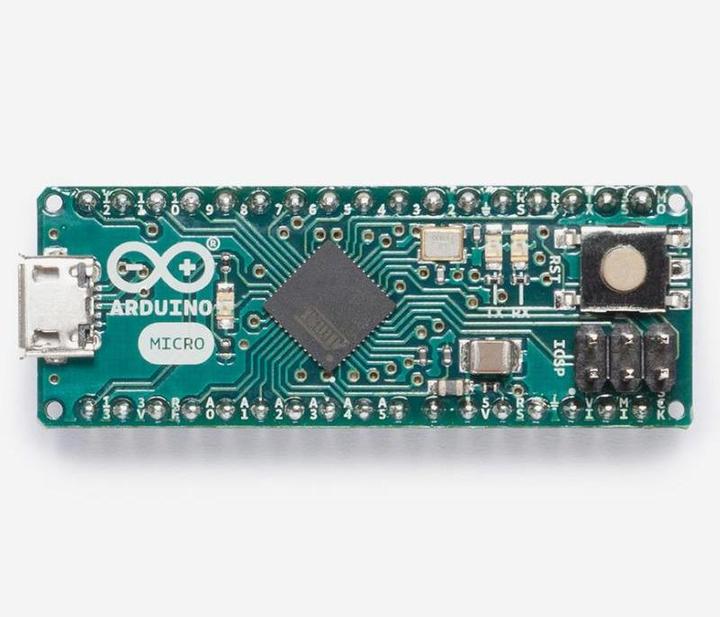

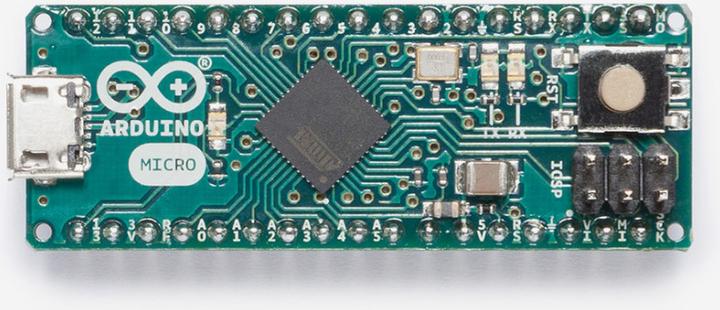

The Micro is a microcontroller board based on the ATmega32U4, developed in collaboration with Adafruit. It features 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB port, an ICSP header, and a reset button. It includes everything needed to support the microcontroller. Simply connect it to a computer using a micro USB cable. It has a form factor that allows it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo, as the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as both a virtual serial/COM port (CDC) and as a mouse and keyboard. It also has other effects on the behavior of the board.

• Microcontroller: ATmega32U4
• Operating Voltage: 5 V
• Input Voltage (recommended): 7-12 V
• Input Voltage (limits): 6-20 V
• Digital I/O Pins: 20
• PWM Channels: 7
• Analog Input Channels: 12
• Current per I/O Pin: 20 mA
• Current for 3.3 V Pin: 50 mA
• Flash Memory: 32 KB (ATmega32U4), of which 4 KB is used by the bootloader
• SRAM: 2.5 KB (ATmega32U4)
• EEPROM: 1 KB (ATmega32U4)
• Clock Frequency: 16 MHz
• Integrated LEDs: 13
• Length: 48 mm
• Width: 18 mm
• Weight: 13 g.
