Product details
Resistance: 22 Ω
Power: 300 W
Series: HS300
Housing Type: Aluminum housing
Tolerance: ±5%
Technology: Wound
Connection Type: Axial
Maximum Temperature Coefficient: -100 ppm/°C
Maximum Temperature Coefficient: +100 ppm/°C
Temperature Coefficient: ±100 ppm/°C
Total Length: 184.4 mm

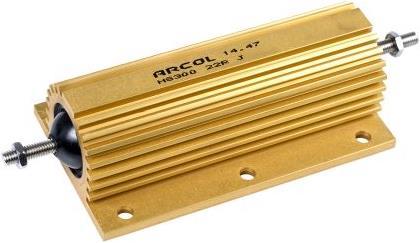

To achieve the specified maximum rated power of this power resistor, it has been designed for direct mounting on a suitable heat sink with a thermal connection. Power wire resistor 300 W in aluminum housing, series HS. Power wire resistors in aluminum housing for 300 W, manufactured according to the requirements of MIL 18546, IEC 115, and RoHS. Compact size for rated power, winding design maximizes pulse load capacity.
Nominal power | 300 W |
permissiveness | 5 ± % |
Item number | 10108405 |
Manufacturer | Arcol |
Category | Resistor |
Manufacturer no. | HS300 22R J |
Release date | 13.11.2018 |
External links |
Resistor type | Wire resistance |
Resistor | 22 Ω (ohm) |
Nominal power | 300 W |
permissiveness | 5 ± % |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Height | 0.06 m |
Width | 0.08 m |
Length | 0.20 m |
