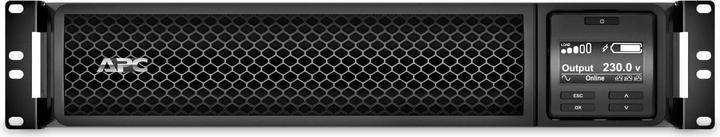

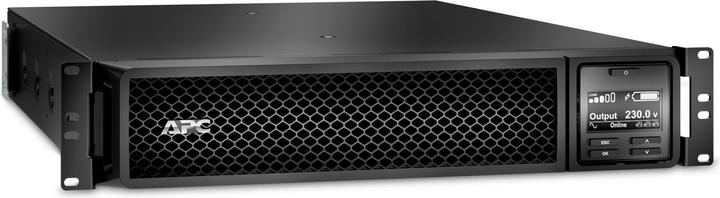

APC USV SRT2200RMXLI-NC

2200 VA, 1980 W, Online double converter UPS
Delivered between Mon, 22.12. and Tue, 23.12.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

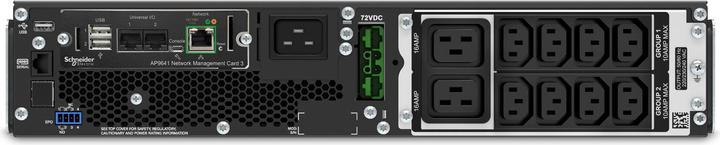

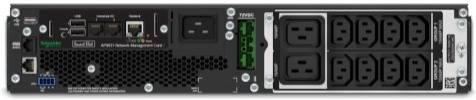

This product is part of the Smart-UPS On-Line series, which offers high-density online power protection with true double conversion. This 2200VA/1980W online UPS with pure sine wave provides scalable runtime and minimizes maintenance efforts. The 2U rack-mounted SRT features a pre-installed network management card in the Smart Slot for network-based monitoring and management of the UPS. PowerChute Network Shutdown enables a safe, unattended shutdown of critical IT devices, from physical servers and virtual machines to HCI clusters. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P input cables, 8x IEC 60320 C13 and 2x IEC 60320 C19 outputs. The Smart-UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Dimensions: 584 mm (depth) x 85 mm (height) x 432 mm (width), 25 kg. Ideal for servers, voice/data networks, medical laboratories, and light industrial applications. It complies with CE, CE marking, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE standards. Designed for IT professionals or network administrators, it offers a wide input voltage window, tight output voltage regulation, frequency regulation, an internal bypass, and input power factor correction. Not suitable for use by private customers.

Key specifications

Model
19" rack
Plug type
C13C19
Scope of application
Network cabinetServer room
Operating time at full load
4 min
Item number
9973632

General information

Manufacturer
APC
Category
UPS
Manufacturer no.
SRT2200RMXLI-NC
Release date
19.10.2018
Sales rank in Category UPS
71 of 2697

UPS properties

UPS type
Online double converter UPS
Power output
1980 W
Output power capacity
2200 VA
Model
19" rack
Rack Unit
2U
shaft type
Sine wave

Application range

Scope of application
Network cabinetServer room

Connector plug

Plug type
C13C19

Connections

USB ports
USB-C
Network connections
RJ45 (1x)

Mains supply properties

input voltage
160 - 275 V
output voltage
230 V
Input frequency
40 / 70 Hz
overvoltage protection
340 J

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 95%
Max. noise level
55 dB
Protection type (IP code)
IP20

Battery properties

Battery category
Device batteries
Battery
Battery
Battery type
VRLA
Battery size
Device specific
Number of cells
1x
Battery weight per cell
25000 g
Voltage
230 V
Capacity
367 Ah
Charging time
3 h
Operating time at full load
4 min
Operating time at half load
11.52 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x AP9641 Network Management Card1x CD with1x UPS
Items per sales unit
1x

Product dimensions

Height
85 mm
Weight
25 kg
Width
432 mm
Length
584 mm

Package dimensions

Length
82 cm
Width
60.50 cm
Height
31.50 cm
Weight
35 kg

30-day right of return
24 Months Warranty (Bring-in)
