APC Usv Smx2200hv, 2200va/1980w

2200 VA, 1980 W, Line-interactive UPS
Delivered between Tue, 28.7. and Wed, 29.7.
Only 1 piece in stock at supplier
free shipping

Product details

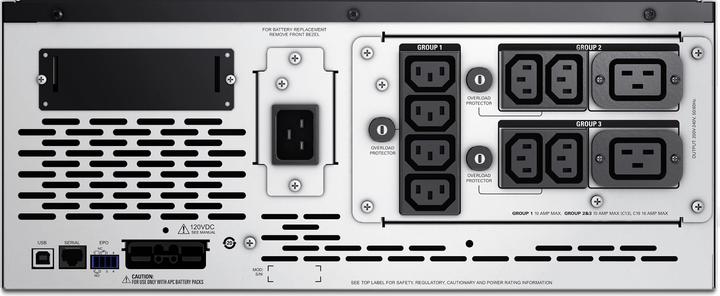

Line-interactive UPS, 2200 VA / 1980 W. Continues to supply power during outages. Up to 1980 watts of output power. Surge protection up to 645 joules. Connections: 8x C13, 2x C19, 1x C20 input. Management: USB, serial (RS-232), SmartSlot. The APC Smart-UPS series protects your critical data with reliable, uninterruptible power supply. The 19-inch chassis can also be mounted in a rack. The device offers 2200 VA capacity with a maximum output power of 1980 watts. In the event of a power outage, the device ensures independent power supply for 10 to 25 minutes (100%/50% load). Intuitive operation, simple management. Its LCD display always shows the most important parameters such as operating mode and efficiency, voltage, frequency, and energy consumption. A clear menu ensures intuitive operation of all device functions. For management via direct connection, a USB and a serial RS-232 interface are available. Low maintenance. The sealed lead-acid battery with gelled electrolyte is completely maintenance-free. The UPS calculates the estimated battery life and detects premature aging through regular battery tests. The voltage applied during the charging process is adjusted to the battery temperature, enabling particularly gentle charging, which in turn has a positive effect on battery life. High efficiency. A high efficiency of typically over 90% helps to keep power consumption and cooling requirements low, thereby saving both the environment and your budget.

APC

The warranty period of the product is 36 months. Since the battery is classified as a consumable, the warranty period of the battery is 24 months. Warranty extensions over 12 and 36 months are listed in the accessories.

Key specifications

Model
19" rack
UPS protection functions
Overvoltage protection
Scope of application
Network cabinetServer room
Plug type
C13C19IEC Jumpers

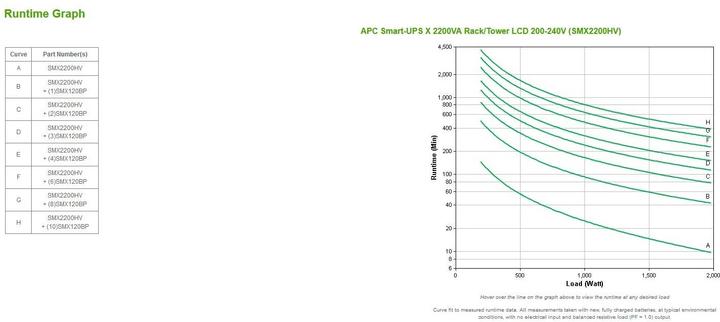

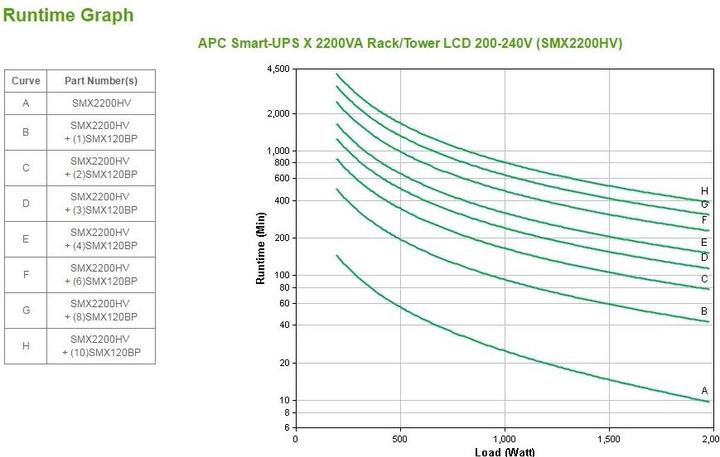

Operating time at full load
9.80 min
Operating time at half load
25.30 min
Battery type
Lead–acid battery
Documents
Note.pdf

General information

Item number
5808850
Manufacturer
APC
Category
UPS
Manufacturer No.
SMX2200HV
Release date
8.7.2013

UPS properties

UPS type
Line-interactive UPS
Power output
1980 W
Output power capacity
2200 VA
Model
19" rack
Rack height units
4 U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Network cabinetServer room

Connections

USB ports
USB-A
Data ports
RS-232 (1x)

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0% - 95%
Max. noise level
55 dB

Mains supply properties

Plug type
C13C19IEC Jumpers
Input voltage
140 - 280 V
Min. input voltage
140 V
Max. input voltage
280 V
Output voltage
208 - 240 V
Min. output voltage
208 V
Max. output voltage
240 V
Output frequency
50 - 60 Hz
overvoltage protection
645 J
Efficiency full load
98.10%

Battery properties

Operating time at full load
9.80 min
Operating time at half load
25.30 min
Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Battery weight per cell
22300 g
Charging time
3 h

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
217.79 kg
Climate contribution
CHF 5.19

Scope of delivery

Scope of delivery
CD with softwareDocumentation CDRack mounting supportRS-232. USB cable
Items per sales unit
1x

Product dimensions

Height
610 mm
Weight
38.56 kg
Width
330 mm
Length
630 mm

Package dimensions

Length
64 cm
Width
63 cm
Height
35 cm
Weight
45 kg
