APC SRT2200XLI Smart-UPS SRT 2200 VA
2200 VA, 1980 W, Online double converter UPSMore than 10 items in stock at third-party supplier
Product details

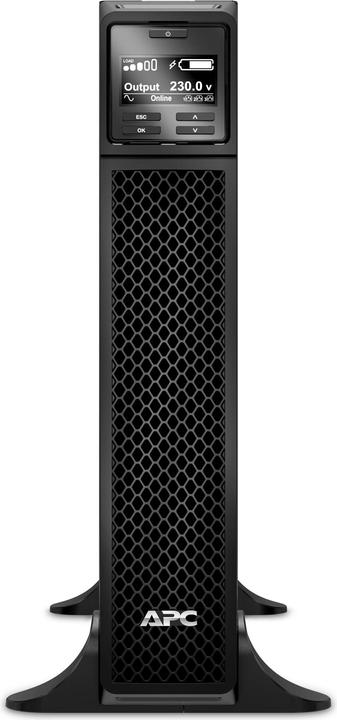

Smart UPS, 2200 VA / 1980 W, 2U. Continues to provide power during an outage with up to 1980 watts of output. Surge protection up to 340 joules. Connections: 8x C13, 2x C19, requires a power connection with at least 16 amps. Management: RJ-45 Serial, Smart-Slot, USB. Suitable for rack or tower use. The APC Smart-UPS series protects your critical data with reliable, uninterruptible power supply. The SRT2200XLI offers 2200 VA capacity with a maximum output of 1980 watts. Comprehensive protection. The Smart-UPS On-Line product family provides high value for businesses with demanding power quality requirements through features such as extensive input voltage ranges, highly precise output voltage regulation, frequency regulation, internal bypass, and input power factor correction. In the event of a power failure, the device takes over temporary power supply to ensure a smooth transition to generator operation. After an overload, no fuse needs to be replaced thanks to the resettable circuit breaker. Diligent management. The UPS continuously displays key data such as operating mode, system parameters, and alarms on its LC display. For management via computer, a USB and an RJ-45 serial interface are available. The included PowerChute software allows for convenient monitoring and control, safe operating system shutdown, and innovative energy management features. With the SmartSlot for management cards, you can further expand the device's functions according to your needs. Service options. Diagnostics for early fault detection enable proactive component replacement. The device performs automatic self-tests and notifies you if the power status changes or if a battery needs to be replaced. The battery modules are easy to connect and can be swapped out while the system is running.
APC
The warranty period of the product is 36 months. Since the battery is classified as a consumable, the warranty period of the battery is 24 months. Warranty extensions over 12 and 36 months are listed in the accessories.Operating time at full load | 3.90 min |
Model | Desktop |
Scope of application | Server room |

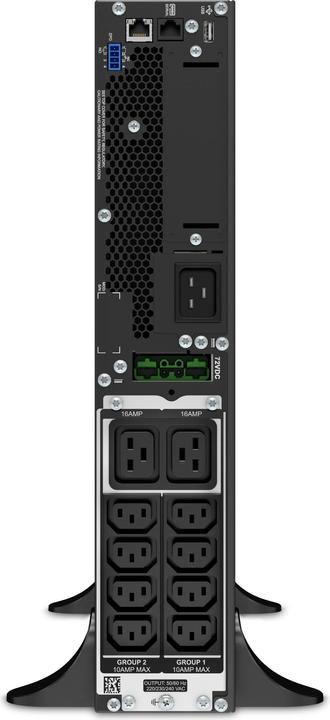

Plug type | C13, C19 |
Documents | |
Item number | 5713396 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | SRT2200XLI |
Release date | 5.11.2023 |
External links |
UPS type | Online double converter UPS |
Power output | 1980 W |
Output power capacity | 2200 VA |
Model | Desktop |
shaft type | Sine wave |
UPS protection functions | Overvoltage protection |
Scope of application | Server room |
Plug type | C13, C19 |
Connections | USB |
USB ports | USB-A |
input voltage | 100 - 275 V |
output voltage | 230 V |
Input frequency | 40 / 70 Hz |
Output frequency | 50 - 60 Hz |
overvoltage protection | 340 J |
Efficiency battery operation | 92.20 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 55 dB |
Protection type (IP code) | IP20 |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 11700 g |
Voltage | 240 V |
Capacity | 367 Ah |
Charging time | 3 h |

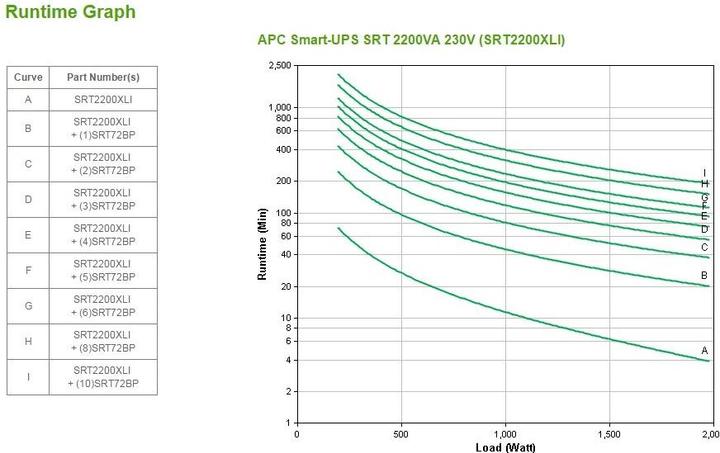

Operating time at full load | 3.90 min |
Operating time at half load | 11.60 min |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | USB cable |
Items per sales unit | 1 x |
Height | 432 mm |
Weight | 25 kg |
Width | 85 mm |
Length | 584 mm |
Length | 81 cm |
Width | 60 cm |
Height | 25 cm |
Weight | 25 kg |
