APC SMX2200RMHV2U Smart-UPS X 2200VA/1980W, Rack/Tower LCD 200-240V

2200 VA, 1980 W, Line-interactive UPS
2Ratings
BrandMore from APC
Delivered the day after tomorrow
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

Optimal UPS protection for professionally used server environments or workstations. Management via the network. To operate a UPS device of this class, a socket protected by 16 amps is required. If no suitable socket is available, the conversion must be carried out by an authorized installer.

APC

The warranty period of the product is 36 months. Since the battery is classified as a consumable, the warranty period of the battery is 24 months. Warranty extensions over 12 and 36 months are listed in the accessories.

Key specifications

Model
19" rack
UPS protection functions
Frequency change protection, Overvoltage protection, Undervoltage protection
Scope of application
Network cabinet, Server room
Plug type
C13, C19, IEC Jumpers

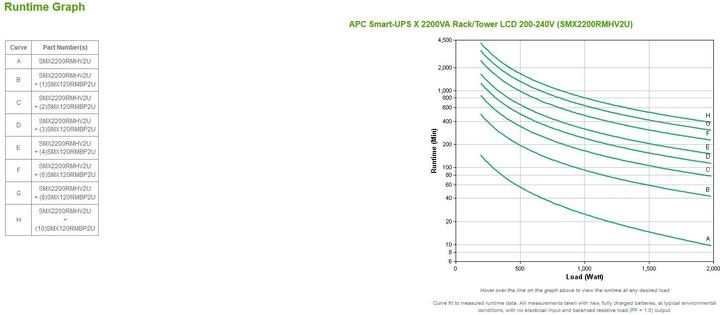

Operating time at full load
10 min
Operating time at half load
25 min
Battery type
Lead–acid battery
Documents
Note.pdf

General information

Item number
413447
Manufacturer
APC
Category
UPS
Manufacturer No.
SMX2200RMHV2U
Release date
5.3.2013

UPS properties

UPS type
Line-interactive UPS
Power output
1980 W
Output power capacity
2200 VA
Model
19" rack
Rack height units
2 U
shaft type
Sine wave

UPS functions

UPS protection functions
Frequency change protection, Overvoltage protection, Undervoltage protection

Application range

Scope of application
Network cabinet, Server room

Connections

USB ports
USB-A
Data ports
RS-232 (1x)

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0% - 95%
Max. noise level
55 dB

Mains supply properties

Plug type
C13, C19, IEC Jumpers
Input voltage
140 - 280 V
Min. input voltage
140 V
Max. input voltage
280 V
Output voltage
220 - 240 V
Min. output voltage
220 V
Max. output voltage
240 V
Input frequency
50 - 60 Hz
Output frequency
47 / 53 Hz
overvoltage protection
645 J
Efficiency full load
98.10%

Battery properties

Operating time at full load
10 min
Operating time at half load
25 min
Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Battery weight per cell
22270 g
Power capacity
702 Wh
Charging time
3 h

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
210.78 kg
Climate contribution
CHF 5.02

Scope of delivery

Scope of delivery
CD-ROM, Intelligent RS-232 cable, Manual, Rack mount kit, USB cable
Items per sales unit
1x

Product dimensions

Height
243 mm
Weight
37.32 kg
Width
667 mm
Length
869 mm

Package dimensions

Length
86 cm
Width
60 cm
Height
25 cm
Weight
46 kg
