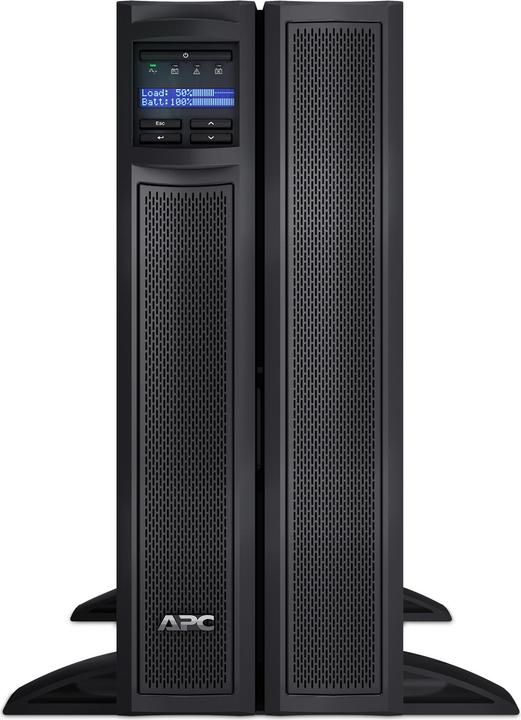

APC Smart-UPS X

3000 VA, 2700 W, Line-interactive UPS
Delivered between Wed, 25.6. and Thu, 26.6.
Only 1 item in stock at supplier
free shipping

Product details

This product is part of the Smart-UPS series, an intelligent and efficient network power protection offering ranging from entry-level models to scalable runtimes. This high-quality and reliable line-interactive UPS with 3000 VA/2700 W provides pure sine waves and scalable runtimes for critical applications. The convertible (Rack/Tower) 4U SMX UPS features an optional network management card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS is equipped with expandable batteries (up to 10) to extend runtime during longer outages. It has an IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 outputs, and 2x IEC 320 C19 outputs, as well as 2x IEC bridging cables. The Smart-UPS comes with a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Dimensions and weight: 483 mm (depth) x 432 mm (height) x 178 mm (width), 38.64 kg. Ideal for server rooms, network cabinets, business VoIP, data storage, NAS (Network Attached Storage), and small data centers. It complies with EAC, CE, IRAM, RCM, TISI, and VDE standards, EN/IEC 62040-1/62040-2. Not suitable for consumers in the EU.

APC

The warranty period of the product is 36 months. Since the battery is classified as a consumable, the warranty period of the battery is 24 months. Warranty extensions over 12 and 36 months are listed in the accessories.

Electrical safety

Due to its high performance, this device requires a 16 Ampère socket (type 23). If no suitable wall socket is available, the conversion must be carried out by an authorised installer.

Key specifications

Operating time at full load
6.30 min
Model
19" rack
Scope of application
Network cabinetServer room
Plug type
C13C19IEC Jumpers
Documents
Item number
5807624

General information

Manufacturer
APC
Category
UPS
Manufacturer no.
SMX3000HV
Release date
8.7.2013
External links

UPS properties

UPS type
Line-interactive UPS
Power output
2700 W
Output power capacity
3000 VA
Model
19" rack
Rack Unit
4U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Network cabinetServer room

Connector plug

Plug type
C13C19IEC Jumpers

Connections

Connections
RS-232USB
USB ports
USB-A
Data ports
RS-232 (1x)

Mains supply properties

input voltage
140 - 280 V
output voltage
230 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
overvoltage protection
645 J
Efficiency battery operation
98.50 %

Operating conditions

Maximum operating temperature
2726.85 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 95%
Max. noise level
55 dB

Battery properties

Battery category
Device batteries
Battery
Rechargeable battery
Battery type
VRLA
Battery size
Device specific
Number of cells
1 x
Voltage
240 V
Capacity
738 Ah
Charging time
3 h
Operating time at full load
6.30 min
Operating time at half load
18.10 min

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
RS-232USB cable
Items per sales unit
1 x

Product dimensions

Height
432 mm
Weight
38.64 kg
Width
178 mm
Length
483 mm

Package dimensions

Length
64 cm
Width
59 cm
Height
33 cm
Weight
49 kg
