Battery-supported and surge-protected outputs, integrated protection for telephone, fax, and modem lines, software for secure system shutdown with advanced power management features, as well as proactive audio-visual alerts, protect office systems and valuable data from surges, voltage spikes, and power outages. The Back-UPS CS 500 can be connected via both USB and a serial interface, allowing for quick and convenient installation. Maintenance is also user-friendly, as the battery can be replaced while the unit is in operation. With these features, the Back-UPS CS 500 provides ideal protection for your office and home office systems.
Operating time at full load | 2.40 min |
Model | Desktop |
Scope of application | Workplace + home use |
Plug type | C13, IEC Jumpers |
Documents | |
Item number | 206971 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | BK500EI |
Release date | 10.7.2003 |
Sales rank in Category UPS | 48 of 2798 |
UPS type | Standby UPS |
Power output | 300 W |
Output power capacity | 500 VA |
Model | Desktop |
shaft type | Sine wave |
UPS protection functions | Frequency change protection, Overvoltage protection, Protection for Modem/Fax/DSL, Undervoltage protection |
Scope of application | Workplace + home use |
Plug type | C13, IEC Jumpers |
USB ports | USB-A |
input voltage | 180 - 266 V |
output voltage | 230 V |
Max. input current | 7 A |
Input frequency | 50 - 60 Hz |
Output frequency | 50 - 60 Hz |
overvoltage protection | 310 J |
Efficiency battery operation | 99 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 40 dB |
Protection type (IP code) | IP20 |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 2500 g |
Voltage | 12 V |
Capacity | 7 Ah |
Charging time | 8 h |

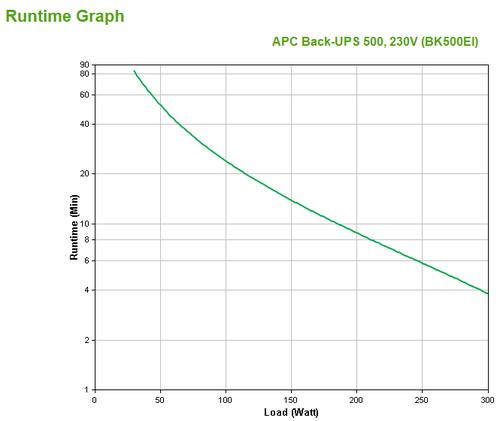

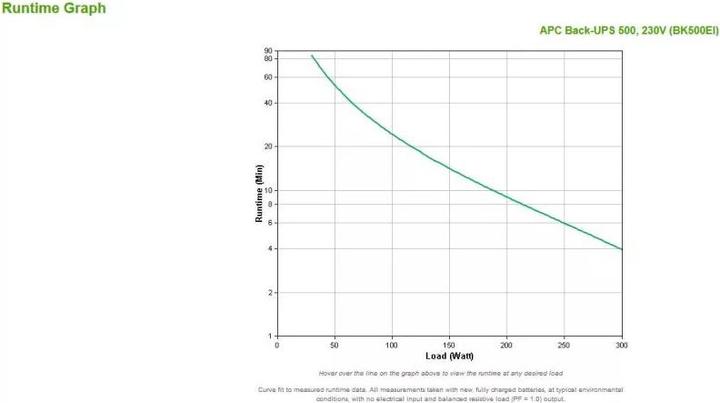

Operating time at full load | 2.40 min |
Operating time at half load | 13.90 min |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | CD-ROM, IEC power cable 1.2m, IEC power cable 1.8m, Manual CD, Telephone wires, USB cable, Warranty card |
Items per sales unit | 1 x |
Height | 91 mm |
Weight | 6.32 kg |
Width | 165 mm |
Length | 284 mm |
Length | 41.50 cm |
Width | 19 cm |
Height | 24 cm |
Weight | 6.75 kg |
