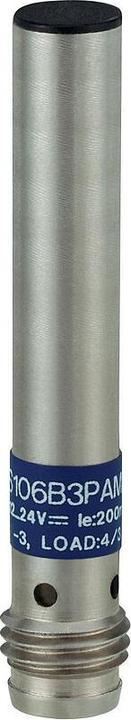

Telemechanique Sensors Inductive Proximity Switch XS106B3PAM8

Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch
Type: XS106B3PAM8
Sensor length: 42 mm
Sensor diameter: 6.5 mm
Mechanical installation condition for sensor: flush
Switching distance: 2.5 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP
Type of electrical connection: M8 connector
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: smooth cylinder
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Voltage type: AC/DC
Switching frequency: 2500 Hz
With monitoring function for downstream devices: no
Housing material: metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to static magnetic fields

Inductive proximity switch with a diameter of 6.5 mm. Length 42 mm, housing made of brass, switching distance 2 mm, 12-24 V DC, M8. EAN: 3389119036030.
