Ansmann Plugtop PSU Euro unregulated 3-12Vdc 6W

1Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

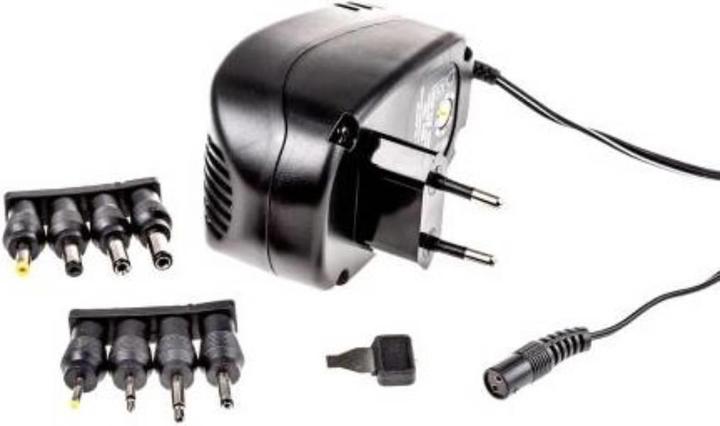

EN61558-1, EN61558-2-6 approximate 1.8 m output cable with pole inverter and 8 output plugs. Only for industrial applications, does not comply with directive 2009/125. Linear DC power supply with plug, unregulated and PWM-controlled. Linear DC power supply with plug attachment with PWM-controlled output voltages from 1.5 V to 12 V, selectable via a recessed rotary switch. These linear DC plug power supplies are available with British 3-pin plug or European 2-pin plug and are equipped with an 8-piece output connector set. Inexpensive PWM-regulated and unregulated DC mains adapter 230 V AC ±10 % 50 Hz input. Output voltages from 1.5 V to 12 V, selectable via recessed rotary switch. LED operating display. Double insulation and protection class IP20. Overtemperature fuse. Features and benefits: 615-8880 - GB, unregulated 3-12 V DC; 615-8919 - GB, regulated 1.5-12 V DC; 615-8896 - Euro, unregulated 3-12 V DC; 737-8149 - Euro, regulated 1.5-12 V DC.

Key specifications

input voltage
230 V
output voltage
12 V, 3V, 4.5V, 6V, 7.5V, 9V
Electric current output
500 mA
Item number
9910993

General information

Manufacturer
Ansmann
Category
Universal chargers
Manufacturer no.
8154015
Release date
16.10.2018

Universal charger features

input voltage
230 V
output voltage
12 V, 3V, 4.5V, 6V, 7.5V, 9V
Power
12 W
Electric current output
500 mA

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
10.30 cm
Width
9 cm
Height
5.50 cm
Weight
402 g
