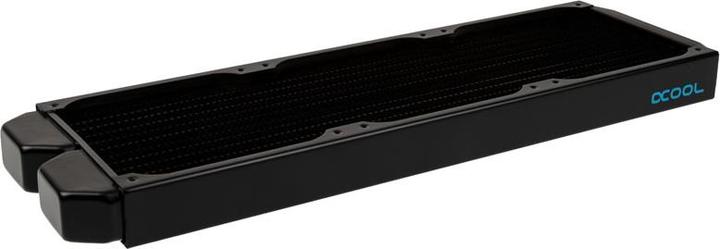

Free space during assembly is one of the central points on which the development department of the Alphacool NexXxos ST30 360mm has concentrated. All main elements, not only the fins and channels, but also the antechambers are made of copper. This already brings an increase in performance due to the material, where other radiators fall by the wayside. The internal design is at eye level with radiators from other manufacturers and separate antechambers clearly define the path of the coolant. A high flow rate increases the cooling capacity in the complete system. The flat end chamber of the NexXxos ST30 360mm also allows more space during installation, as the overall length is thus smaller.
Number of fans | 3 Fan |
fins | Copper |
Connection | 2x G1/4 |
Item number | 2448444 |
Manufacturer | Alphacool |
Category | Water cooling radiators |
Manufacturer no. | 14158 |
Release date | 30.1.2014 |
External links |
Colour | Black |
type of radiator | Special radiators |
Number of fans | 3 Fan |
gauge | S - 30mm |
cooling ducts | Copper |
fins | Copper |
Fan diameter | 120 mm |
Connection | 2x G1/4 |
Pressure tested | 1.50 bar |
Case material | Steel |
fan thread | M3 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 12x x M3x x 30 mm hexagon socket screws, 12x x M3x x 35 mm hexagon socket screws |
Length | 400 mm |
Width | 124 mm |
Height | 30 mm |
Weight | 970 g |
Length | 46.50 cm |
Width | 13.50 cm |
Height | 4 cm |
Weight | 902 g |
