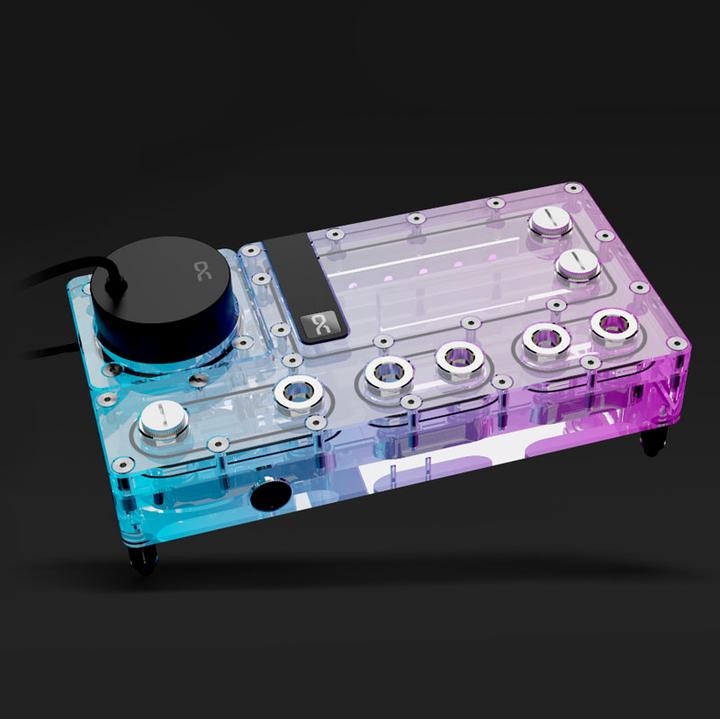

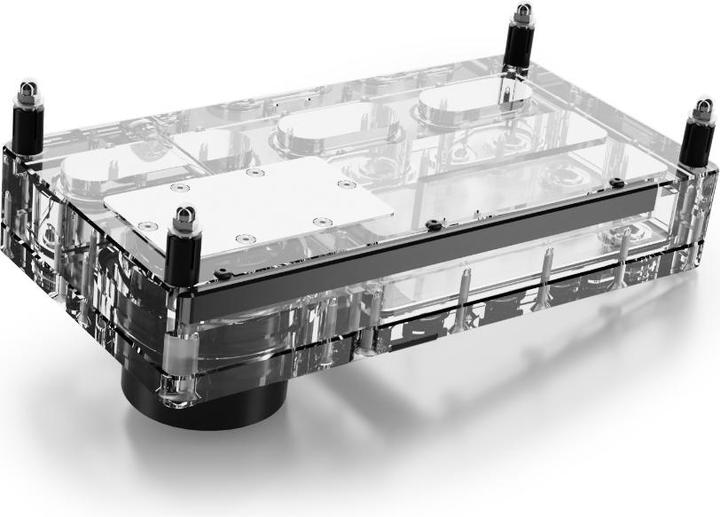

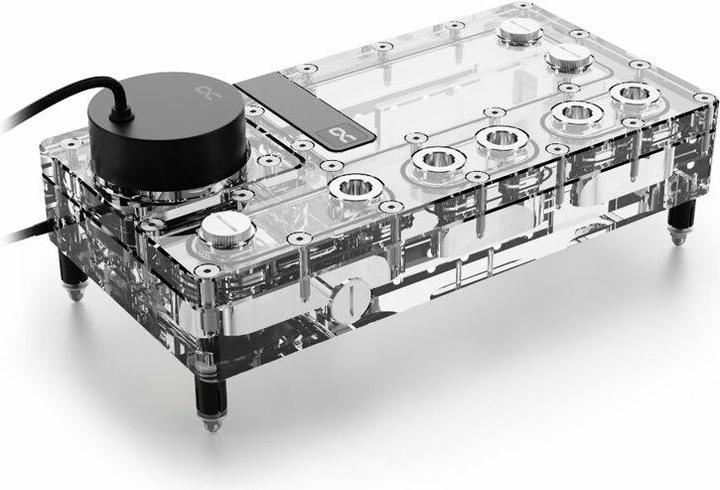

The Core Distro Plate from Alphacool with VPP Apex pump is an essential component for any custom water cooling setup. It significantly simplifies the construction, planning, and maintenance of complex water circuits, and thanks to the pre-installed VPP Apex, no additional pump installation is required.
Core Design
A core element of Alphacool's Core Design series is the chrome-plated G1/4" connections made of brass. In the Core Distro Plate, the connections are recessed rather than being screwed into a thread as is customary. This design choice helps Alphacool avoid potential leakage issues caused by cracking from the direct screwing of the connections into the acrylic. The connections are two-part, equipped with an O-ring, and lock against each other during installation in the acrylic. This not only ensures absolute tightness of each individual connection but also allows for the clear and functional aesthetic of the Alphacool Core Design series.
Easy Installation
With the help of the included components...
Max. flow | 342 l/h |
Max. delivery head | 4.25 m |
Pump Power connection | 4PIN Molex, 4PIN PWM |
water inlet | G1/4" female thread |
water outlet | G1/4" female thread |
Item number | 25296405 |
Manufacturer | Alphacool |
Category | Water cooling pumps |
Manufacturer no. | 15478 |
Release date | 23.2.2023 |
Sales rank in Category Water cooling pumps | 19 of 132 |
pump type | D5 Series |
Max. delivery head | 4.25 m |
Max. flow | 342 l/h |
Voltage | 12 V |
Pump Power connection | 4PIN Molex, 4PIN PWM |
water outlet | G1/4" female thread |
water inlet | G1/4" female thread |
Max. system temperature | 60 °C |
Exact colour description | Black, Transparent |
Material | Acrylic, Aluminium, Ceramic, Synthetic |
Approved liquids | Water, water/glycol mixture |
Possible control range | PWM |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

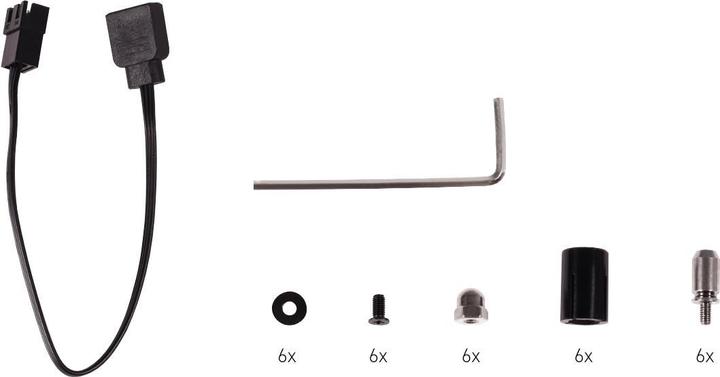

Scope of delivery | 1x 240 Distroplate 1x VPP Apex pump 1x Hexagon spanner 3x Screw Plug 6x Core Push Mount Set 1x ARGB Adapter |
Length | 240 mm |
Width | 125 mm |
Height | 93.31 mm |
Weight | 1536 g |
Length | 31 cm |
Width | 16.30 cm |
Height | 9.70 cm |
Weight | 1.84 kg |
