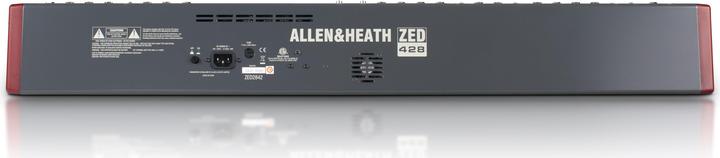

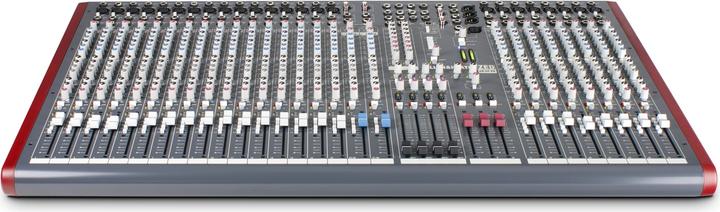

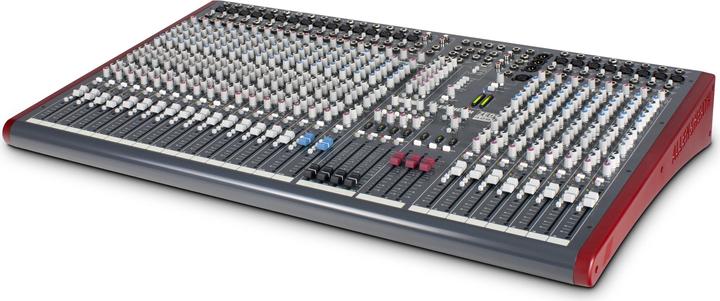

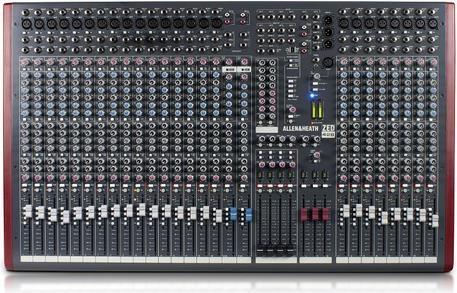

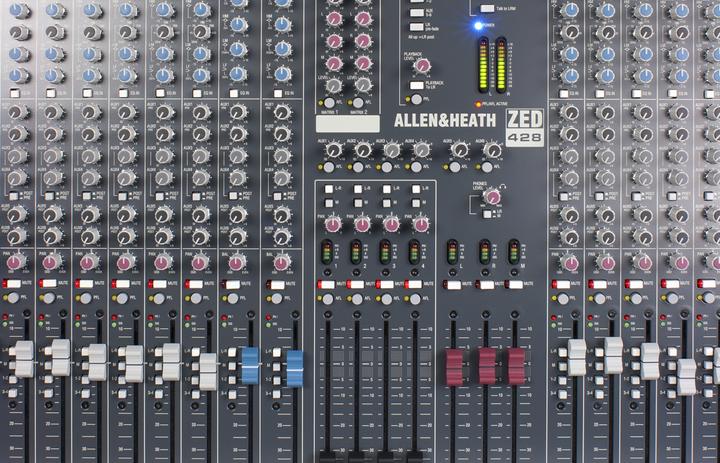

Allen & Heath ZED428 (Studio- and Livemixer) Actual product image
CHF 1559.–

Allen & Heath ZED428 (Studio- and Livemixer)


Key specifications

Main channels26
Microphone inputYes
USB interfaceYes

General information

Manufacturer Allen & Heath
Product type Mixers


In professional audio, a mixing console, or audio mixer, also called a sound board or soundboard, is an electronic device for combining (also called "mixing"), routing, and changing the level, timbre and/or dynamics of audio signals. A mixer can mix analog or digital signals, depending on the type of mixer. The modified signals (voltages or digital samples) are summed to produce the combined output signals.

Mixing consoles are used in many applications, including recording studios, public address systems, sound reinforcement systems, broadcasting, television, and film post-production. An example of a simple application would be to enable the signals that originated from two separate microphones (each being used by vocalists singing a duet, perhaps) to be heard through one set of speakers simultaneously. When used for live performances, the signal produced by the mixer will usually be sent directly to an amplifier, unless that particular mixer is "powered" or it is being connected to powered speakers.

More information...

Item number5830159
Manufacturer no.ZED428
External links Manufacturer's site (en)


Case colour

Mixer properties

Mixing console type
Studio- and Livemixer
Audio resolution
16 bit
Sample rate
44 kHz


Number of channels

Number of channels

Number of channels, which can be mixed to the master mix, including sub channels e.g. the microphone channel of a DJ mixer.

26 x
Main channels

Main channels

Number of channels (mono and combined stereo channels) which can be controlled by fader and EQ at best.

Mono channels
Stereo channels

Audio connections (inputs)

XLR (mono)
24 x
6.3mm jack (stereo)
2 x

Audio connections (outputs)

XLR R/L stereo pair (master)
1 x
6.3mm jack (stereo)
1 x
Rec Out
1 x

Other connections

USB 1.1 standard B connector
1 x
Aux/FX Out/Send
6 x
Insert jacks

Insert jacks

Three-pin jack socket, which feeds the mono input signal to an effects unit and processes it back into the mixing console.


Product dimensions

56 cm
93 cm
12 cm
18 kg


Mixer features
USB interface

USB interface

The device can be used as a USB sound card for the PC.

Microphone input
Phantom power

Phantom power

A 48V phantom power supply for condenser microphones can be connected to at least one microphone input.



The device features internal effects that can be added to the channels or the overall mix.

Sub groups

Sub groups

Channels can be combined into channel groups. This allows sound sources such as percussion, choir or orchestra parts to be combined and blended into the master signal with a single fader. Usually with its own exit.
