Alesis MultiMix 10 Wireless

The MultiMix 10 Wireless is a 10-channel rack mixer, ideal for clubs, event spaces, or mobile PA systems. The four mono channels (1-4) offer XLR microphone inputs (including switchable phantom power), balanced 6.3 mm jack inputs, and TRS insert paths.

Channels 5/6 and 7/8 are designed as balanced stereo channels (6.3 mm jack). Additionally, signals can be connected to stereo channel 7/8 via RCA inputs. Audio signals from any Bluetooth-enabled playback device are received through channels 9/10. The transmitter and receiver are connected at the push of a button on the front of the MultiMix 10 Wireless. If no Bluetooth source is available, channel 9 alternatively has a 3.5 mm jack input. Each channel also features a 2-band EQ, pre- and post-effect paths, a pan control, a smooth 60 mm volume fader, and a peak LED indicator.

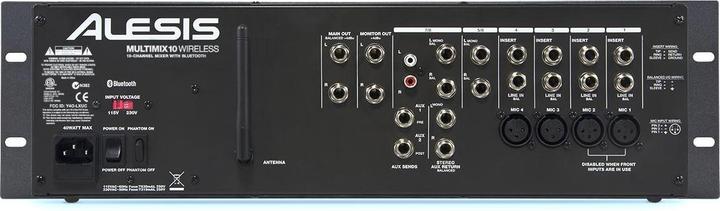

On the back of the MultiMix 10 Wireless, in addition to the balanced main out, there is another 6.3 mm stereo output, 6.3 mm aux sends, and 6.3 mm stereo returns. On the front, microphones or instruments can be connected via XLR/jack inputs (6.3 mm), which can then be controlled through channels 1 and 2 as an alternative to the rear inputs. The 10-segment LED display next to the master fader provides visual feedback on the overall signal volume. An additional headphone jack is affected by the monitor/headphone level control. The summed signal can also be directly accessed from the front of the mixer via a 3.5 mm stereo output.
