Alesis MultiMix 10 Wireless

The MultiMix 10 Wireless is a 10-channel rack mixer, ideal for clubs, event spaces, or mobile PA systems. The four mono channels 1-4 feature XLR microphone inputs (including switchable phantom power), balanced 6.3 mm jack inputs, and TRS insert paths.

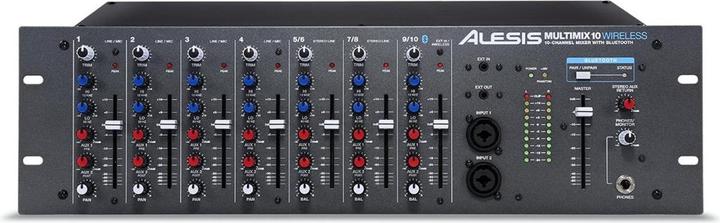

Channels 5/6 and 7/8 are designed as balanced stereo channels (6.3 mm jack). Alternatively, signals can also be connected to stereo channel 7/8 via RCA inputs. Audio signals from any Bluetooth-enabled playback device are received through channels 9/10. The transmitter and receiver are connected at the push of a button on the front of the MultiMix 10 Wireless. If no Bluetooth source is available, channel 9 also has a 3.5 mm jack input. Additionally, each channel features a 2-band EQ, pre and post effect paths, a pan control, a smooth 60 mm volume fader, and a peak LED indicator.

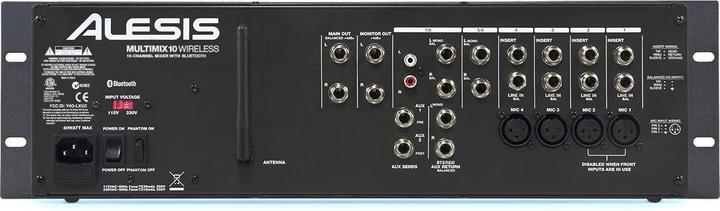

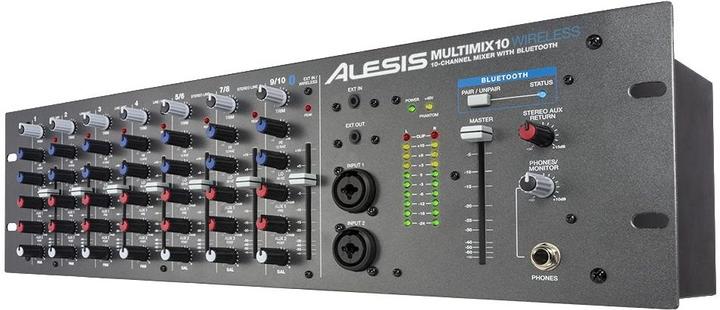

On the back of the MultiMix 10 Wireless, in addition to a balanced main out, there is another 6.3 mm stereo output, 6.3 mm aux sends, and 6.3 mm stereo returns. On the front, microphones or instruments can be connected via XLR/jack inputs (6.3 mm), which can then be controlled through channels 1 and 2 instead of the rear inputs. The 10-segment LED display next to the master fader provides visual feedback on the volume of the summed signal. An additional headphone jack is influenced by the monitor/headphone control for its volume. The summed signal can also be tapped directly from the front of the mixer via a 3.5 mm stereo output.
