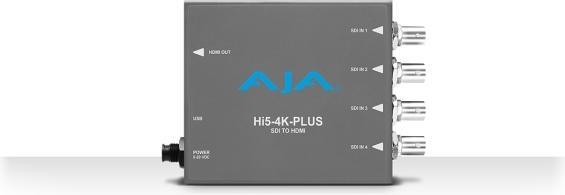

AJA Hi5-4K-Plus 3G-SDI to HDMI video and audio converter

AJA Hi5-4K-Plus - 3G-SDI to HDMI video and audio converter

Product Description: The AJA Hi5-4K-Plus is a 3G-SDI to HDMI video and audio converter.

Type: 3G-SDI to HDMI video and audio converter

Dimensions: Width 14.6 cm, Depth 10.2 cm, Height 2.3 cm

Weight: 300 g

Detailed Specifications:

General:

• Type: 3G-SDI to HDMI video and audio converter
• Width: 14.6 cm
• Depth: 10.2 cm
• Height: 2.3 cm
• Weight: 300 g

Power Supply:

• Rated voltage: AC 120/230 V
• Frequency: 50/60 Hz
• Max. power consumption: 12 W
• Low voltage: DC 5 - 20 V

Terminals:

• (4) x 3G-SDI input - BNC
• (1) x HDMI output - 19 PIN HDMI type A
• (1) x USB

Environmental Conditions:

• Min operating temperature: 0 °C
• Max operating temperature: 40 °C
• Permissible humidity during operation: 10 - 90% (non-condensing).
