Adafruit Precision LM4040 Voltage Reference Breakout

Various
Ratings
BrandMore from Adafruit
Delivered between Sat, 19.7. and Tue, 22.7.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

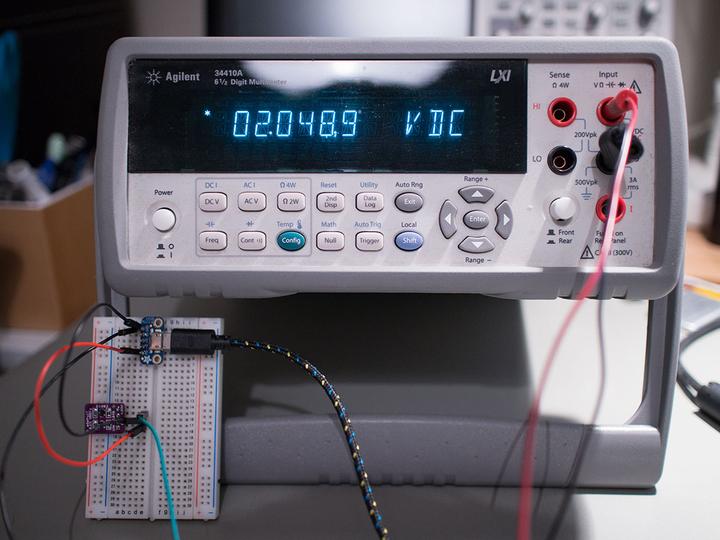

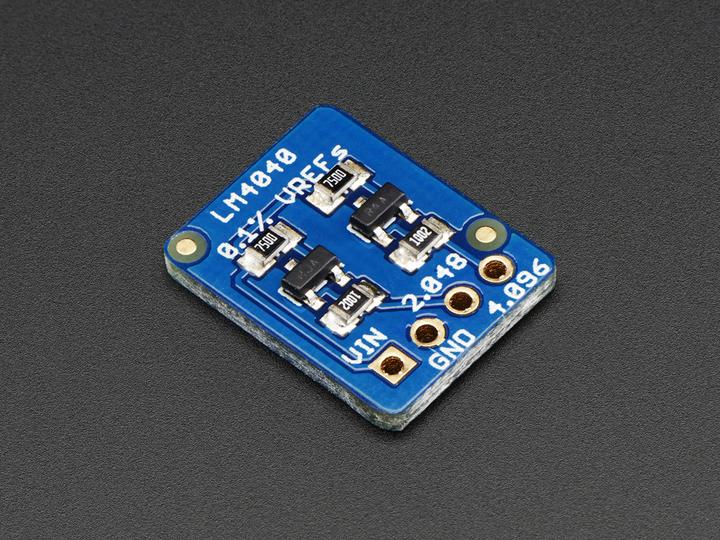

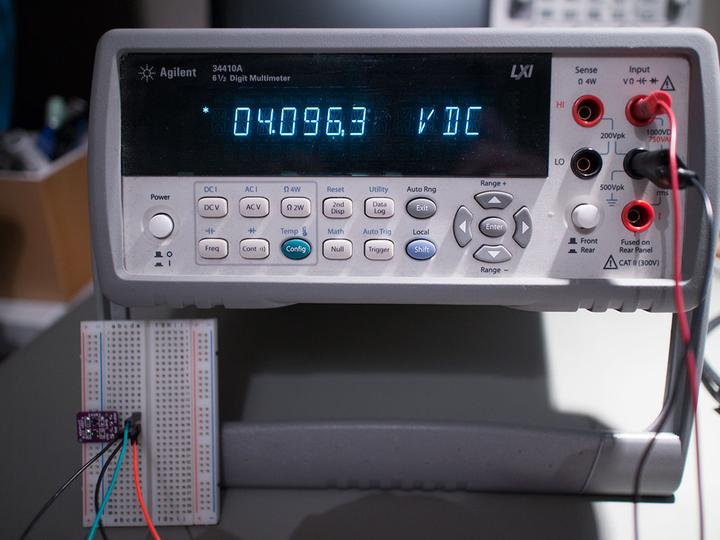

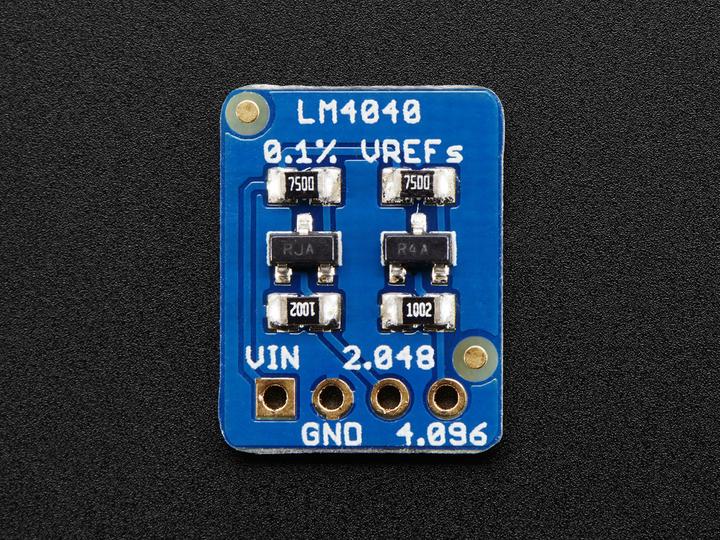

How accurate is your multimeter really? Or perhaps your analog converter needs a good reference? Or let's say you want to check the conversion accuracy and precision of your microcontroller. If you just need a reliable, high-precision, rock-solid voltage reference, you now know why we developed this very cute and useful little board. It features two very high-precision shunt voltage references with 750 Ohm bias resistors. One of them is 2.048 V (ideal for 3.3 V reference systems) and the other is 4.096 V (great for 5 V). Both have an accuracy of 0.1%!

Using it is simple: connect the power supply with about 5 V to 12 V, or 3 V if you only want to use the 2 V reference. Then measure the voltage at the output. Please note that these are not regulators - you cannot draw anything from the output.

Key specifications

Compatible hardware
Various
Item number
5998723

General information

Manufacturer
Adafruit
Category
Electronics modules
Manufacturer no.
ada-2200
Release date
24.10.2014

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Various

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
7.50 cm
Width
3 cm
Height
1 cm
Weight
1 g
