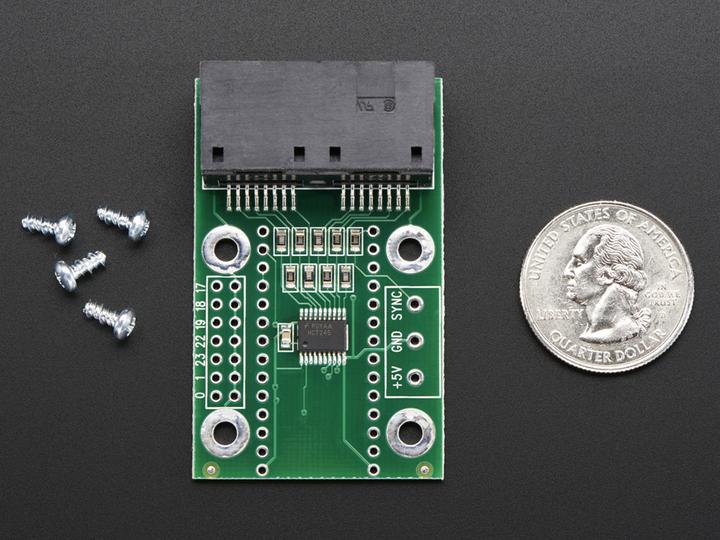

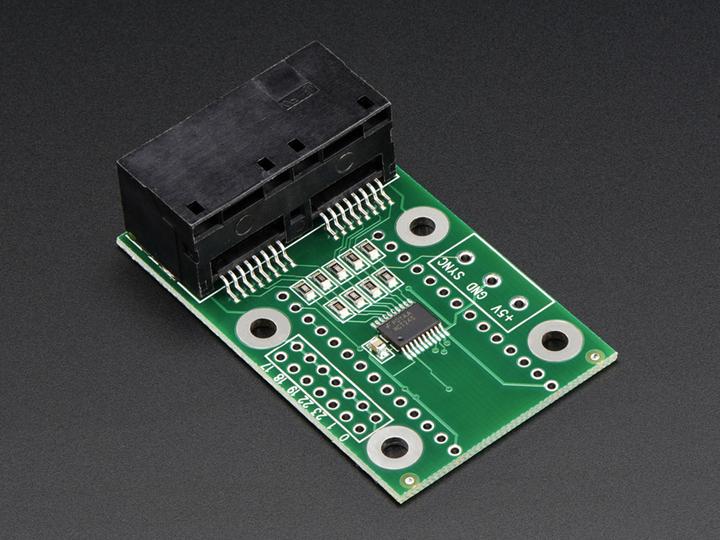

This adapter board connects the Teensy 3.1 to thousands of WS2811/WS2812 (also known as NeoPixel) LEDs using the OctoWS2811 library.

It features a 74HCT245 buffer chip and 100 Ohm series termination resistors. A CAT6 Ethernet cable is used to connect this board to the LED strip. A CAT6 cable provides very high bandwidth, minimal crosstalk between twisted pairs, and an impedance of 100 Ohms, resulting in very high signal quality.

The Teensy 3.1 is a small, breadboard-compatible development board created by Paul Stoffregen and PJRC. Teensy 3.1 offers an affordable 32-bit ARM Cortex-M4 platform for hobbyists, students, and engineers, with a customized version of the Arduino IDE (Teensyduino) or programming directly in the C language.

This product does NOT include a Teensy; it is just the adapter!

Technical details:

* Four self-tapping screws
* Eight LED outputs
* Dimensions: 56mm x 34mm x 2mm / 2.2" x 1.3" x 0.08"
* Height with Ethernet outputs: 15mm / 0.6"
* Weight: 11.1g.

Key specifications

Compatible hardware
Various
Item number
5998470

General information

Manufacturer
Adafruit
Category
Electronics modules
Manufacturer no.
ada-1779
Release date
16.2.2016

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Various
Shield
Ethernet shield

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
2 mm
Width
56 mm
Height
34 mm
Weight
11.10 g

Package dimensions

Length
9 cm
Width
5 cm
Height
2 cm
Weight
15 g
