Description

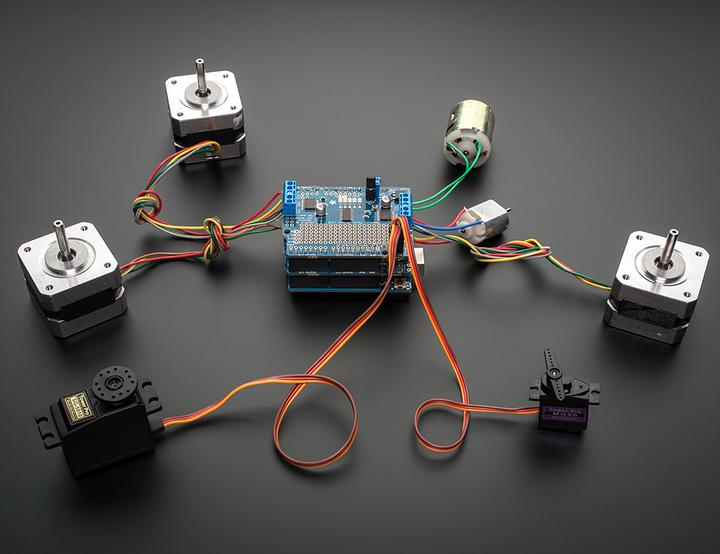

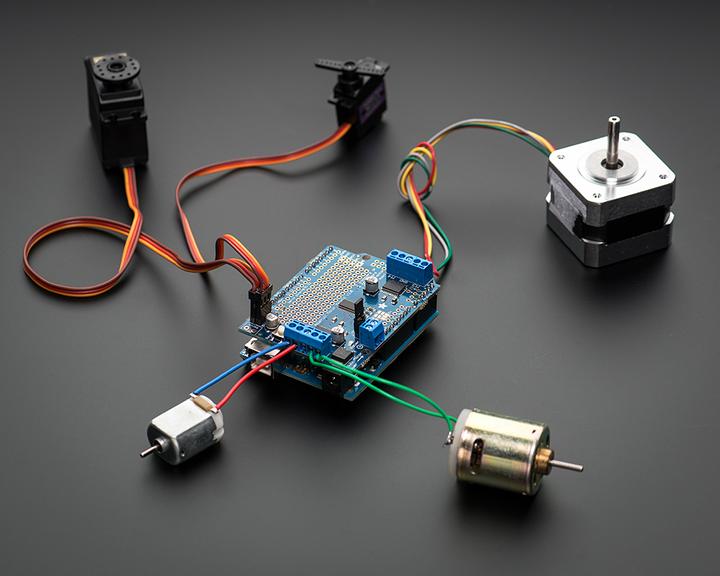

The original Adafruit Motorshield kit is one of our most beloved kits, which is why we decided to make something even better. We have upgraded the shield kit to make the bestest, easiest way to drive DC and Stepper motors. This shield will make quick work of your next robotics project! We kept the ability to drive up to 4 DC motors or 2 stepper motors, but added many improvements:

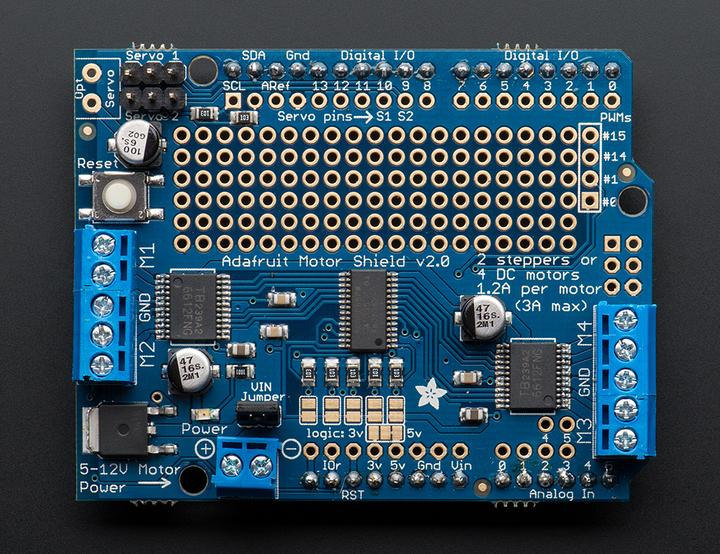

Instead of a L293D darlington driver, we now have the TB6612 MOSFET drivers with 1.2A per channel current capability (you can draw up to 3A peak for approx 20ms at a time). It also has much lower voltage drops across the motor so you get more torque out of your batteries, and there are built-in flyback diodes as well.

Instead of using a latch and the Arduino's PWM pins, we have a fully-dedicated PWM driver chip onboard. This chip handles all the motor and speed controls over I2C. Only two data pins (SDA & SCL in addition to the power pins GND & 5V) are required to drive the multiple motors, and since it's I2C you can also connect any other I2C devices or shields to the same pins. This also makes it drop-in compatible with any Arduino, such as the Uno, Due, Leonardo and Mega R3.

Completely stackable design: 5 address-select pins means up to 32 stackable shields: that's 64 steppers or 128 DC motors! What on earth could you do with that many steppers? I have no idea but if you come up with something send us a photo because that would be a pretty glorious project.

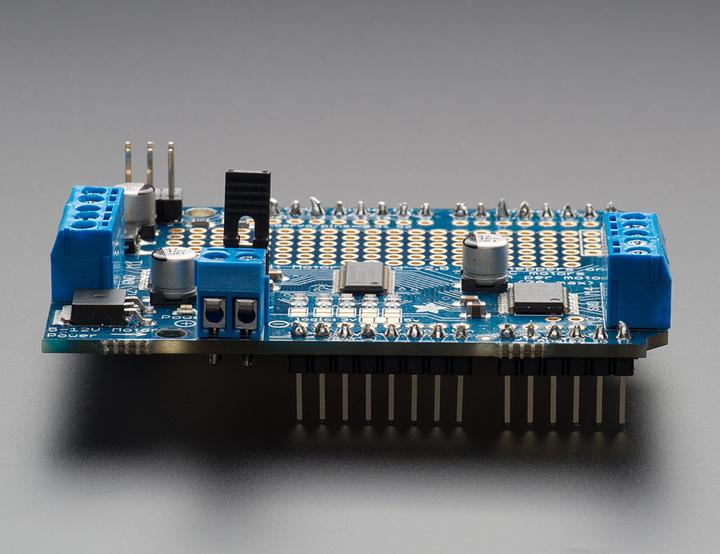

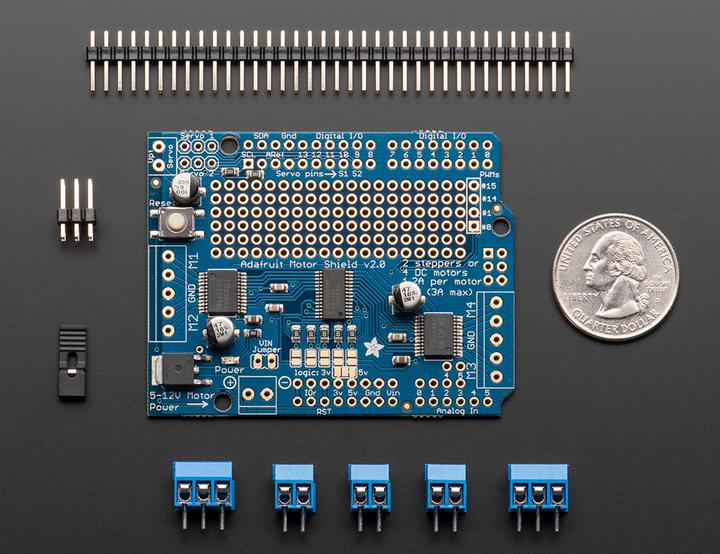

Lots of other little improvements such as a polarity protection FET on the power pins and a bit of prototyping area. And the shield is assembled and tested here at Adafruit so all you have to do is solder on straight or stacking headers and the terminal blocks.
more

Specifications

Key specifications

ShieldMotor-Shield
Signal transmissionCable
Additionally required (not included)Arduino

General information

Manufacturer Adafruit
Product type Electronics modules
Item number6056776
Manufacturer no.1438
Sales rank in Product type Electronics modules10 of 1205
External links How To (en)

Compatibility

i

Compatibility

Compatibility means parts work together.

More information...

Kompatible Hardware
Arduino

Elektronikmodul Eigenschaften

Modultyp
Shield
Shield
Motor-Shield
Signal transmission
i

Signal transmission

Mit Datenübertragung oder Informationsübertragung bezeichnet man alle Methoden, die (Nutz-)Informationen von einem Sender (Informationsquelle) zu einem Empfänger (Informationssenke) übermitteln.

More information...

Cable

Delivery contents

i

Delivery contents

The scope of delivery means the included accessories.

Additionally required (not included)
i

Additionally required (not included)

For the operation of the product required, but not included.

Arduino

Product dimensions

i

Product dimensions

Physical size of an object

Length
70 mm
Width
55 mm
Height
10 mm
