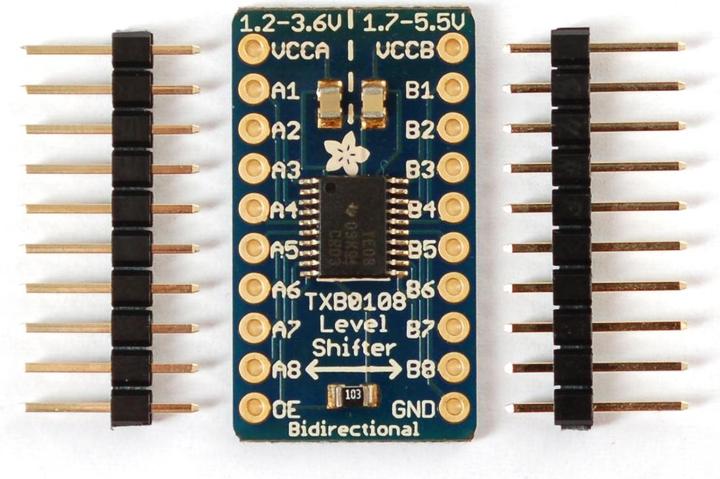

Adafruit 8-channel Bi-directional Level Converter TXB0108
DockFree shipping starting at 50.–
The battle between different levels is finally over.
With the Adafruit Level Converter (Level Shifter, Level Translator) featuring the TXB0108 IC, you can now easily convert 8 signals bidirectionally - with automatic direction detection! Simply place the circuit between the two devices. Everything will be automatically recognized and leveled correctly.
On side A, voltages from 1.2 V to 3.6 V are allowed, while side B can handle 1.7 V to 5.5 V.
With one exception: I2C circuits use a very strong pull-up (small resistor) and therefore do not work on this board! Circuits with a weak pull-up (strong resistor, starting from 50 kOhm) work without any issues!.
Compatible hardware | Various |
Item number | 5998616 |
Manufacturer | Adafruit |
Category | Electronics modules |
Manufacturer no. | ada-395 |
Release date | 22.11.2016 |
Sales rank in Category Electronics modules | 27 of 9190 |
Compatible hardware | Various |
Module type | Dock |
CO₂-Emission | |
Climate contribution |
Length | 9 cm |
Width | 6.50 cm |
Height | 0.20 cm |
Weight | 4 g |
