Adafruit 15x7 CharliePlex LED Matrix Display FeatherWing Whi

Display
Ratings
BrandMore from Adafruit
Delivered between Sat, 5.7. and Tue, 8.7.
10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

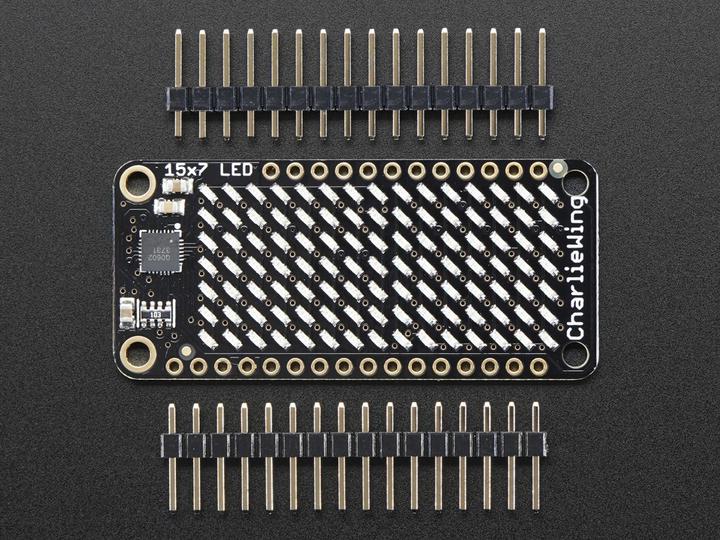

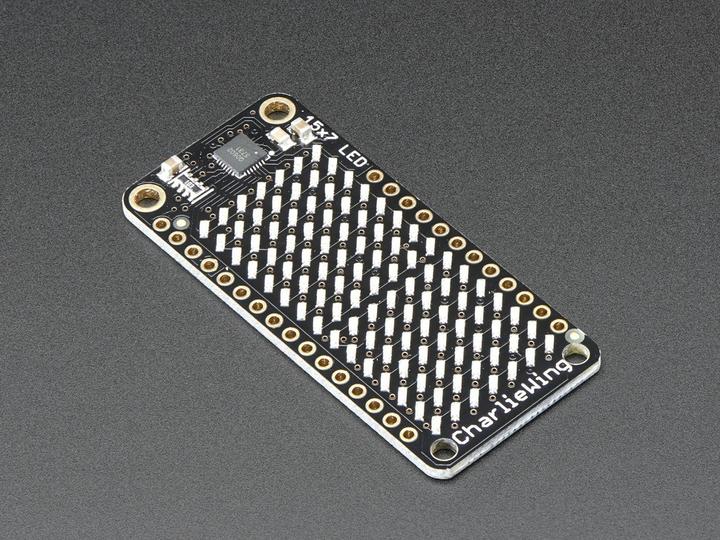

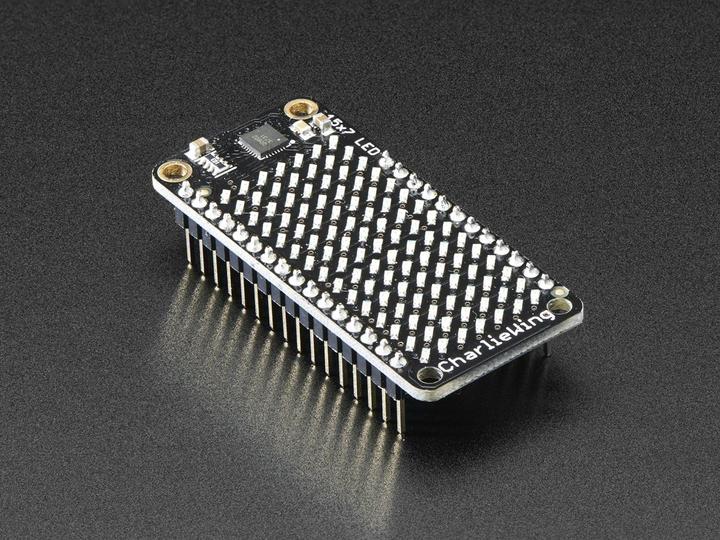

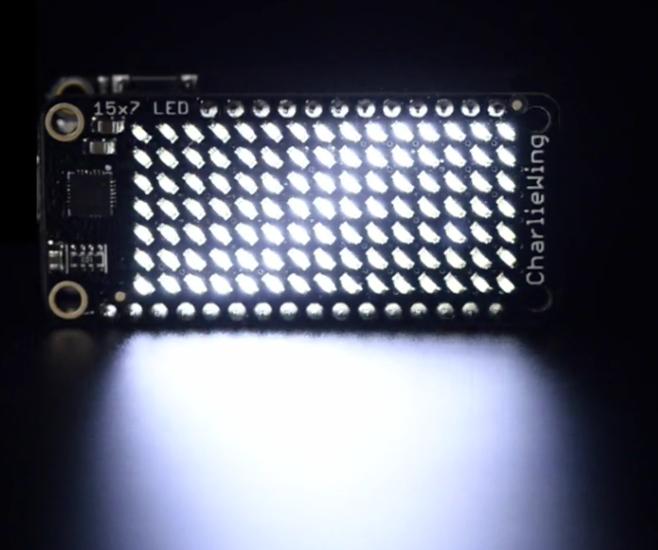

You won't be able to look away from the fascinating patterns created by this Adafruit 15x7 CharliePlex LED Matrix Display FeatherWing. This 15x7 LED display can be combined with any of our Feather boards and features a beautiful, bright grid of 105 Charlieplex LEDs. It even comes with a built-in Charlieplex driver that operates via I2C.

What’s particularly nice about this Wing is the I2C LED driver chip, which has the ability to control each individual LED in a 15x7 grid using PWM. This allows you to create beautiful LED lighting effects without using many pins. Simply tell the chip which LED on the grid you want to illuminate and at what brightness, and it will handle everything for you. You get 8-bit (256 levels) for each individual LED.

The IS31FL3731 is a nice little chip and runs happily on 3.3V power. Inside, it has enough RAM for 8 separate images of the screen memory, so you can set up multiple frames of an animation and display them with a single command. Since it uses I2C, it only requires the SDA/SCL pins of your Feather and can share these pins with other I2C devices and sensors.

Details:

* Uses I2C address 0x74 or 0x77
* Product dimensions: 51.0 mm x 23.0 mm x 3.0 mm
* Product weight: 3.8 g.

Key specifications

Compatible hardware
Various
Item number
5998630

General information

Manufacturer
Adafruit
Category
Electronics modules
Manufacturer no.
ada-3138
Release date
6.9.2016

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Display
Shield
I/O shield

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
51 mm
Width
23 mm
Height
3 mm
Weight
3.80 g

Package dimensions

Length
1 cm
Width
1 cm
Height
1 cm
Weight
1 g
