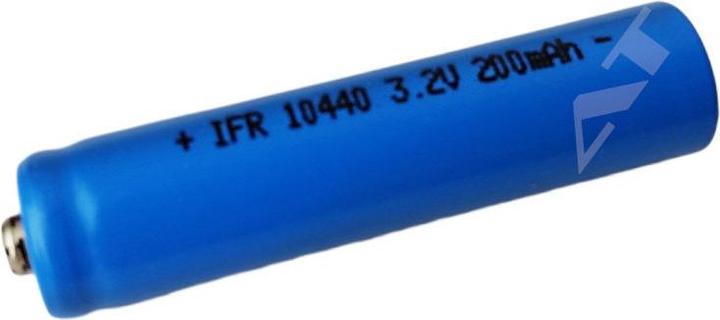

AccuCell IFR 10440 - 200mAh 3.2V LiFePo4 Battery (Button Top) unprotected

IFR 10440 Lithium Iron Phosphate Battery (Button Top, unprotected), Solar Battery. Compatible chargers: XTAR SP1, XTAR WP2H, XTAR VP2, Nitecore D4.

Capacity (mAh): 200 mAh
Min. Capacity (mAh): 200 mAh
Nominal Voltage (Volt): 3.2 V
Charge Termination Voltage (Volt): 3.6 V ± 0.05 V
Discharge Termination Voltage (Volt): 2.5 V
Positive Terminal (Design): raised (Button Top)
Protection: none
Composition (Chemistry): LiFePO4
Diameter (mm): 10.10 mm ± 0.1 mm
Height (mm): 44.30 mm ± 0.1 mm
Weight (g): 7 g ± 1 g
Charging Method: CC-CV

Safety Notes: Lithium cells must only be operated with protective electronics! Please note that lithium cells may only be used by authorized professionals. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium iron phosphate batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "IFR 10440 - 200 mAh 3.2 V LiFePO4 Battery (Button Top) unprotected":
Charging Current (Amperes): 0.xx - 100 mA
Operating Temperature for Charging: 0 °C - 45 °C
Operating Temperature for Discharging: -20 °C - 60 °C

Notes: Charging lithium batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 3.6 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 3.5 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to doubling). Only lithium chargers with a charge up to 3.6 V should be used for charging, e.g.: XTAR VP2, XTAR SP1, XTAR WP2H, Nitecore D4.

Furthermore, batteries and accumulators do not belong in household waste! Please dispose of them as required by law at municipal collection points or in the designated (usually green) containers provided by retailers.
