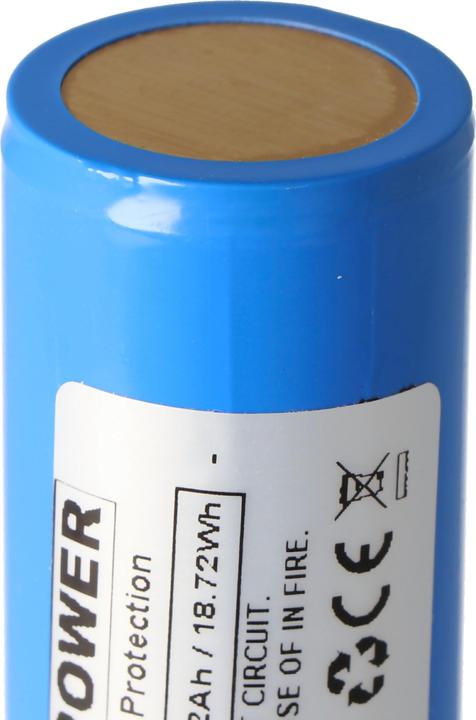

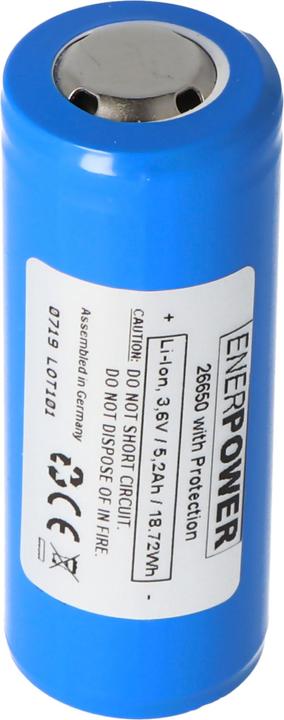

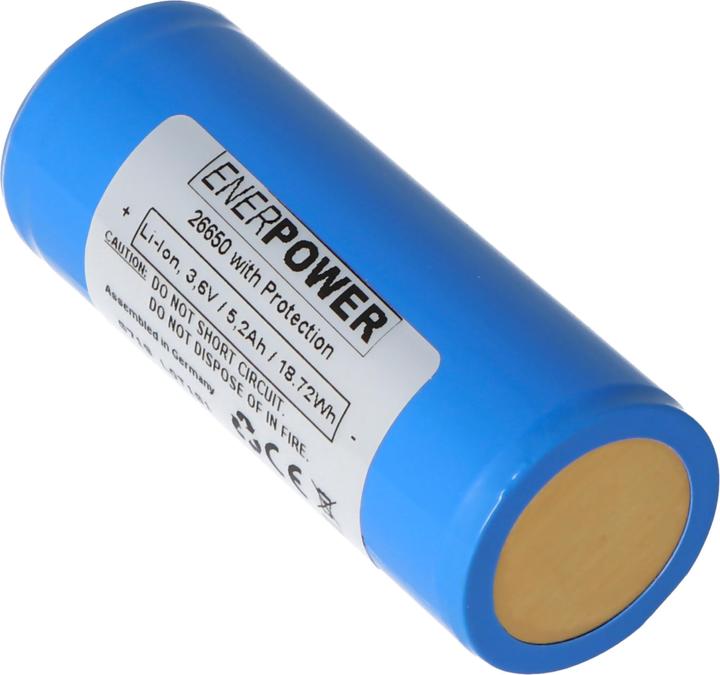

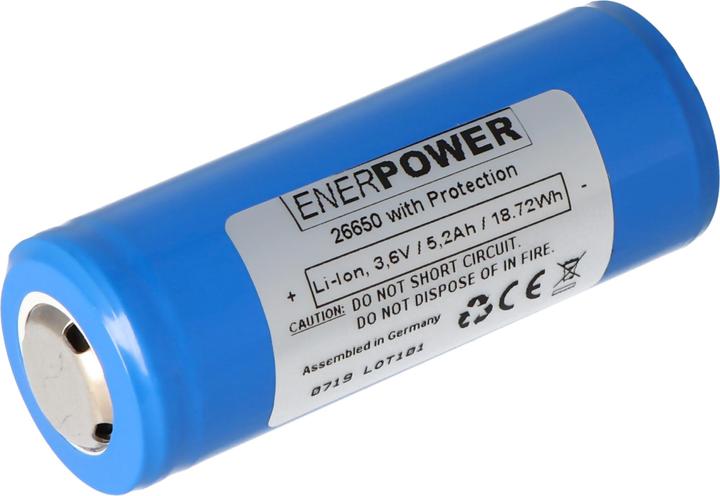

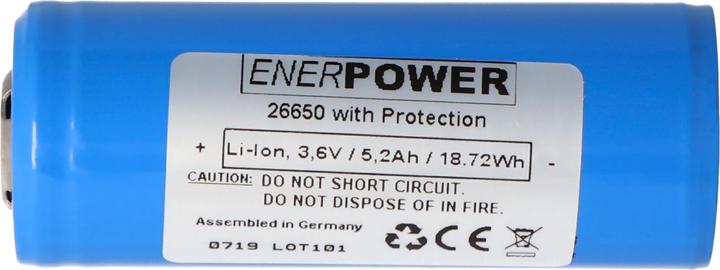

AccuCell Battery Enerpower 26650, positive terminal increased PCB protected

Plus pole raised: The well-known 26650 industrial cell from Enercig with 5200mAh has been equipped with high-quality protection electronics by Enerpower. It features 4 MOSFET PCM IC protection/PCB with short-circuit, overcharge, and deep discharge protection up to 12A for applications up to 45W. This high-quality rechargeable 26650 battery with 5200mAh is particularly recommended for flashlights, LEDs, model building, drones, and mechanical battery holders. Please check the dimensions of the cell before purchasing! Due to the built-in electronics, the cell is not suitable for every application!

Height and diameter are larger than a standard 26650 cell without PCB.
Capacity: 5200mAh
Min. Capacity: 5050mAh
Nominal voltage: 3.6V - 3.7V
Charge termination voltage: 4.2V
Max. Discharge current: 12A
Discharge termination voltage: 2.8V - 2.9V
Charge current: 0.xxA - 3A
Protection: PCB protected (integrated)
Positive terminal: flat (Flat Top)
Diameter: 26.5 mm ± 0.2 mm
Height: 70.0 mm ± 0.2 mm
Weight: 96 g
Charging method: CC-CV

Safety notes: Please note that lithium cells may only be used by qualified personnel. Improper handling or short-circuiting can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by a high energy density.

Technical specifications for "Enerpower EP-26650-5200mAh Li-Ion Battery 3.6V - 3.7V PCB Plus pole raised":
Typical capacity: 5200 mAh @ 0.2C discharge
Min. Capacity: 5050 mAh @ 0.2C discharge
Standard charging: CC/CV, 0.2C5A, 4.20V
Standard discharge: CC, 0.2C5A, 3V
Gentle charge current: 0.xxA to 2.00A
Fast charge current: 2A to 3A
Charge termination voltage: 4.20V ± 0.05V
Operating temperature charging: 0 °C - 45 °C
Operating temperature discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger.
