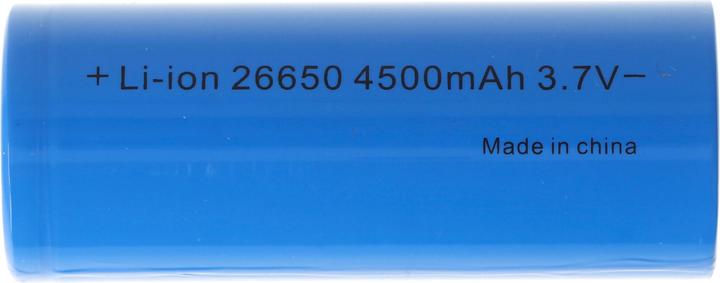

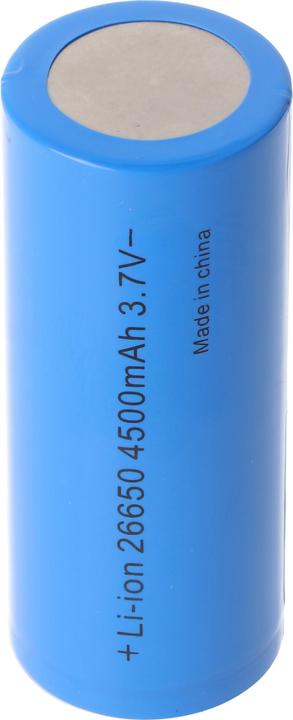

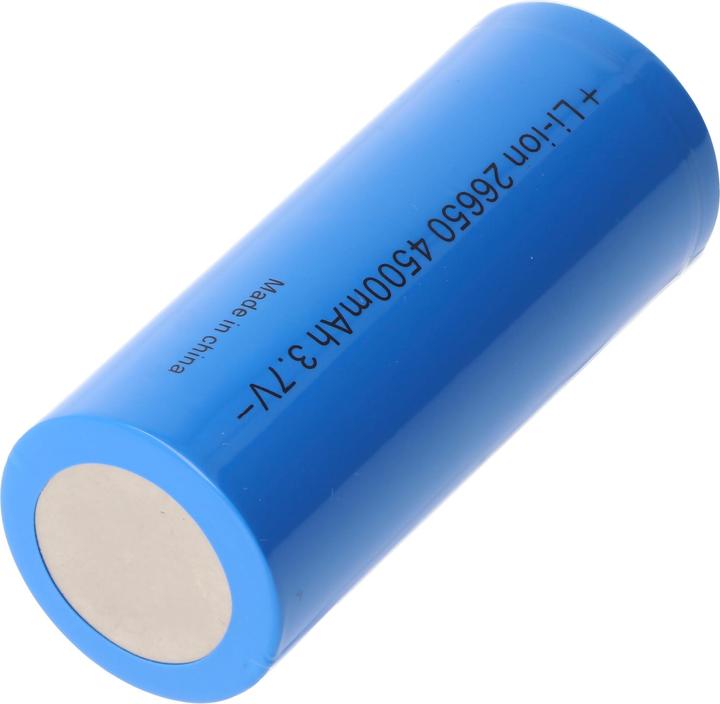

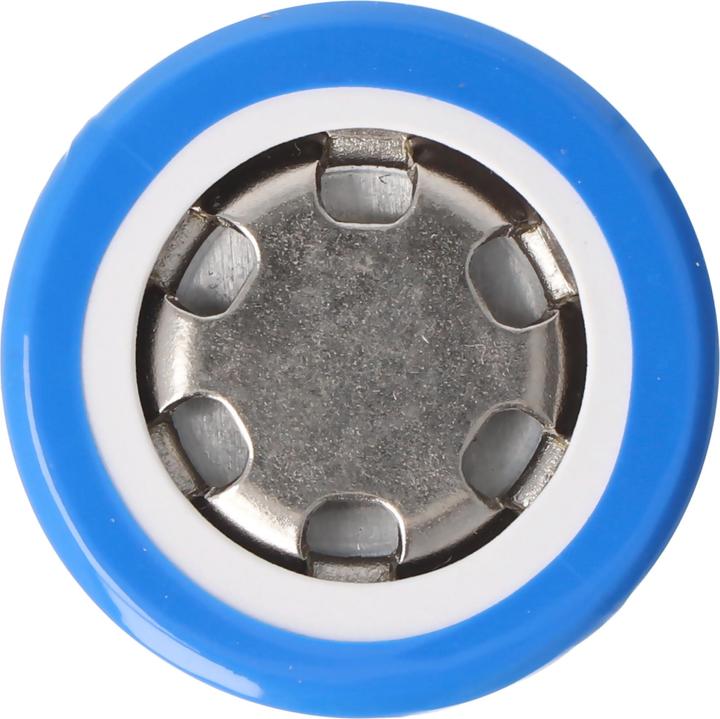

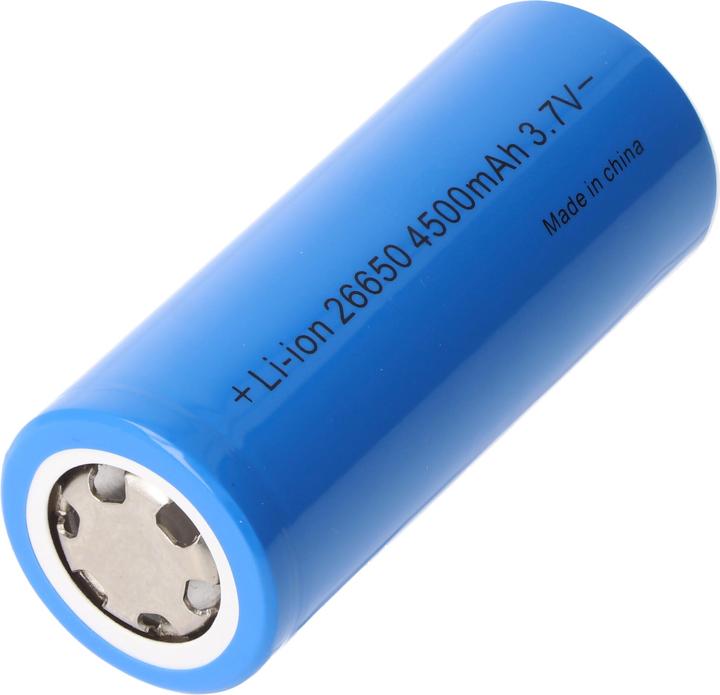

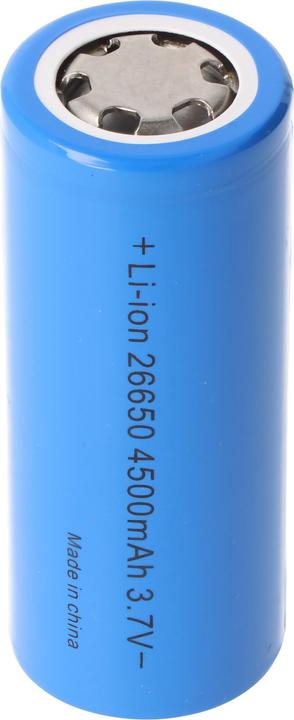

AccuCell Battery 26650A max. 15A discharge current

4500mAh Li-ion battery 26650A 3.6V, 3.7V, max. 15A discharge current, 26.5x65.2mm.

The standard 26650 industrial rechargeable cell measures 65.20 x 26.50mm and is produced in Keeppower's usual industrial quality, ensuring safety, robustness, and durability. This thermally stable Li-ion cell has no memory effect, with a capacity of 4500mAh and a constant discharge current of 9A, as well as a pulsed discharge current of 15A, indicating stable longevity.

Such cells are used in applications like power storage, mobile energy, LED applications, model making, and battery packs. The 26650A cell enables safe, long-lasting use.

The cell does not have integrated protection electronics, which are necessary for the safe use of Li-ion batteries.

Specifications:

• Capacity: 4500mAh
• Minimum capacity: 4400mAh
• Nominal voltage: 3.6V/3.7V
• Charge end voltage: 4.2V ± 0.05V
• Discharge end voltage: 2.5V
• Standard charge current: 0.xx - 2A (2000mA)
• Maximum charge current: 1C 4.5A (2000mA)
• Maximum discharge current (pulse, approx. 5 sec.): 15A
• Maximum discharge current (continuous load): 9A
• Chemistry: Li, Co, O2, Al, Cu
• Protective circuit PCB/BMS: not present
• Charge method: CC-CV
• Diameter: 26.50 mm ± 0.2 mm
• Height: 65.20 mm ± 0.3 mm
• Weight: 93 g ± 1 g

Safety instructions: Lithium cells may only be operated with protective electronics. Please note that lithium cells should only be used by qualified personnel. Incorrect handling or short-circuiting can lead to fire or explosion.

Other features: Lithium-ion batteries are thermally stable and are not subject to memory effect. They work on the basis of lithium and are characterized by a high energy density.
