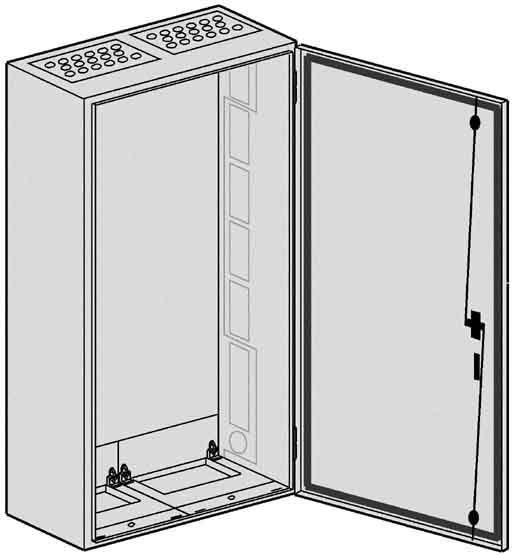

ABN SP27 System enclosure IP54 protectionis.550x1100mm

The ABN SP27 system enclosure is a robust wall-mounted cabinet specifically designed for use in demanding environments. With an IP54 protection rating, it offers effective protection against dust and splashes, making it ideal for housing electrical devices and components. The external dimensions are 550 mm in width, 1100 mm in height, and 225 mm in depth, providing ample space for a variety of applications. The enclosure is made from high-quality steel sheet and powder-coated to ensure long-lasting durability and resistance. It is suitable for devices with a maximum current of up to 400 A and offers a usable installation depth of 190 mm. The door is equipped with a 3-point locking mechanism and can be hinged on either the right or left side, allowing for flexible installation. Additionally, the enclosure is prepared for the installation of standardized modular kits and offers versatile connection options.

• IP54 protection rating for optimal protection against dust and splashes
• Made from 1.5 mm thick steel sheet for high stability
• Prepared for the installation of modular kits and mounting plates
• Door with a 270° opening angle and 3-point locking mechanism
• Pre-formed enclosure connections on both sides for easy assembly.
