ABB Weekly timer

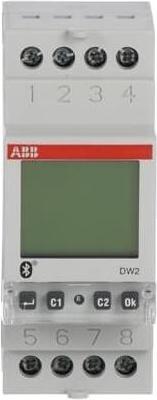

ABB Stotz S&J weekly time switch DW2

Manufacturer: ABB Stotz S&J
Designation: Weekly time switch
Type: DW2
Mounting type: DIN rail
Number of channels: 2
Supply voltage: 230 V
Supply voltage type: AC
Supply voltage frequency: 50...60 Hz
Power reserve in years: 5
Rate accuracy per day: 0.5 s
Text guidance in display: Yes
External programming: Yes
With memory card: No
60 min program: No
24 h program: Yes
Weekly program: Yes
Yearly program: No
Holiday program: Yes
Pulse program: Yes
Cycle program: Yes
Astro program: No
Random program: Yes
Operating hours counter: Yes
Mains-synchronous: Yes
Quartz-controlled: Yes
Radio controlled: No
Radio controlled (DCF77): No
GPS: No
Contact type: Changeover contact (NO/NC)
Number of contacts: 2
Shortest switching time channel 1: 1 min
Shortest switching time channel 2: 1 min
Automatic summer/winter time changeover: Yes
Suitable for manual operation: Yes
External pushbutton input: Yes
Switching preselection: Yes
Rated switching current at 250 V AC: 16 A
Max. switching capacity LED: 500 W
Potential-free switching capacity: 500 W
LED switching capacity: 500 W
Floating switching contact: Yes
Protection class (IP): IP20
Width in pitch units: 2
Width: 35 mm
Height: 87 mm
Depth: 65 mm

Digital weekly time switch with integrated Bluetooth interface for app programming with smartphone or tablet via app DBT Timer.
