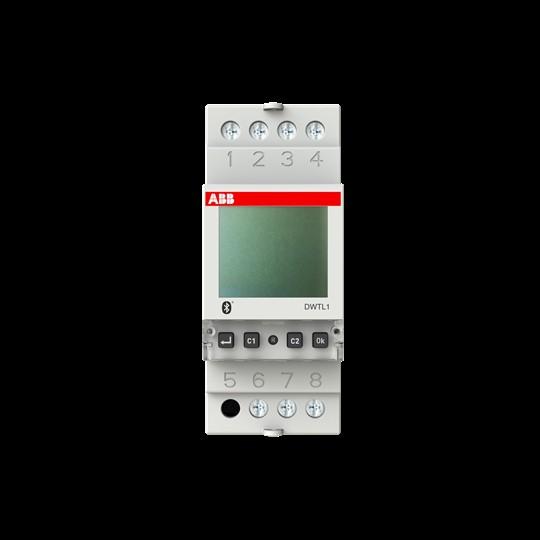

ABB DWTL1

ABB Stotz S&J Weekly time switch DWTL1 Manufacturer :ABB Stotz S&J Designation :Weekly time switch Type :DWTL1 Mounting type :DIN rail Number of channels :1 Supply voltage :230 V Supply voltage type :AC Frequency of supply voltage :50...60 Hz Power reserve in years :5 Accuracy per day :0.5 s Text guidance in the display :yes External programming :yes With memory card :no 60 min programme :no 24 h programme :yes Weekly programme :yes Yearly programme :no Holiday programme :yes Pulse programme :yes Cycle programme :yes Astro programme :yes Random programme :yes Operating hours counter :yes Mains-synchronous :yes Quartz-controlled :yes Radio-controlled :no Radio controlled (DCF77) :no GPS :no Contact type :Changeover contact (NO/NC) Number of contacts :1 Shortest switching time channel 1 :1 min Shortest switching time channel 2 :1 min Number of memory locations :400 Automatic summer/winter time changeover :yes Suitable for manual operation :yes External push-button input :yes Circuit preselection :yes Rated switching current at 250 V AC :16 A Max. switching capacity LED :500 W Potential-free switching capacity :500 W Max. switching capacity LED :500 W Floating switching contact :yes Protection class (IP) :IP20 Width in units :2 Width :35 mm Height :65 mm Depth :87 mm ABB Stotz S&J DWTL1 weekly time switch: further details Digital weekly time switch with integrated Bluetooth interface and input for light sensor for app programming with smartphone or tablet via app ¿DBT Timer¿. Light sensor for wall mounting included. Potential-free changeover contacts for time-dependent control of operating equipment. Programming of daily, weekly, holiday, pulse, cycle and random programmes with up to 900 memory locations. High security due to sealable transparent cover and access protection via PIN code. LED load switchable up to 500 W. Backlit display and automatic changeover from summer time to winter time. , EAN: 8012542224914.
