4K HDMI splitter, 1 in 4 out, EDID support

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

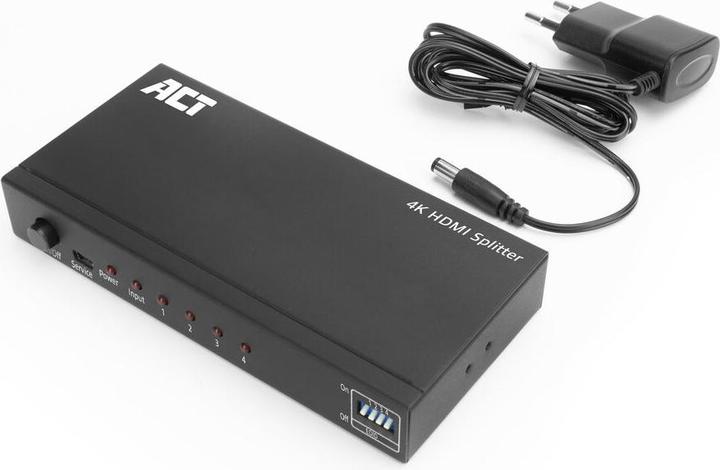

With the AC7831 4K HDMI splitter, you can transmit a single 4K HDMI signal to four separate TVs or monitors. It is ideal for digital signage in a store, waiting room, bar, or office. The maximum resolution is 3840x2160 (4K) at 30Hz and 1080p at 120Hz. The AC7831 supports EDID, Chroma Sampling 4:4:4, and HDCP 1.4, and comes with an external power supply.

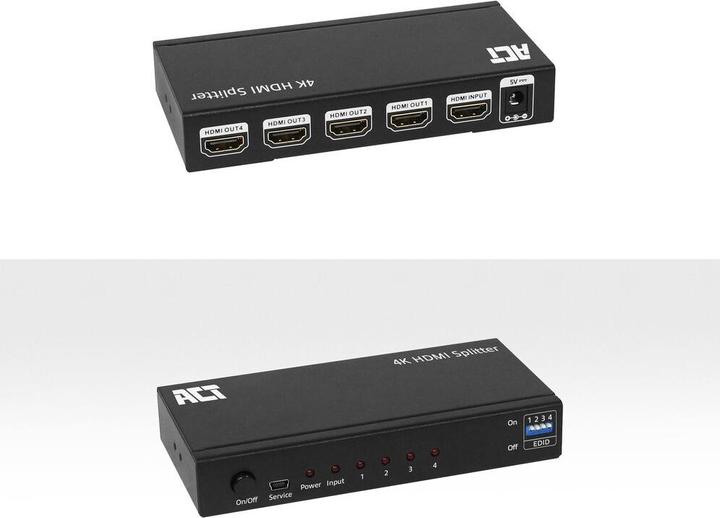

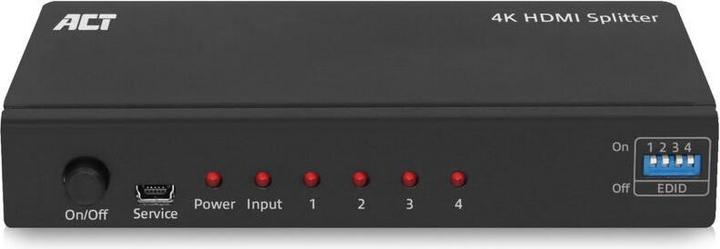

The AC7831 HDMI splitter is the perfect solution for displaying digital signage on four separate HDMI TVs or monitors. The AC7831 features one HDMI input and four HDMI outputs. The splitter distributes the video source to up to 4 target screens with a maximum distance of 5 meters without compromising video quality. The AC7831 is equipped with status LEDs that indicate which screens are connected.

The EDID copy function, also known as Extended Display Identification, ensures resolution communication between the source and output devices. By default, the AC7831 copies the resolution of the TV or monitor connected to HDMI output 1. If this is a 4K monitor, the output for all monitors will be in 4K. If a monitor does not support 4K, no image will be displayed on that monitor. If the monitor connected to HDMI output 1 is a 1080p monitor and 4K TVs or monitors are connected, those images will be displayed at a resolution of 1080p.

Key specifications

Switch Box Type
HDMI splitter
Connectable devices (input)
1
Connectable devices (output)
4
Main device port
HDMI
Video connections
HDMI (5x)
Audio Connections
HDMI (4x)
Item number
40273276

General information

Publisher
ACT
Category
Switch box
Manufacturer no.
AC7831
Release date
29.11.2023

Switch box properties

Connectable devices (input)
1
Switch Box Type
HDMI splitter
Connectable devices (output)
4
Max. picture resolution
3840 x 2160 pixels
HDMI version
1.4
Refresh rate
120 Hz

Connection main unit

Main device port
HDMI

Connection to external devices

Video connections
HDMI (5x)
Audio Connections
HDMI (4x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
External power supply
