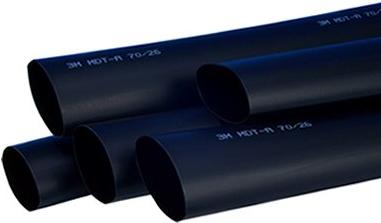

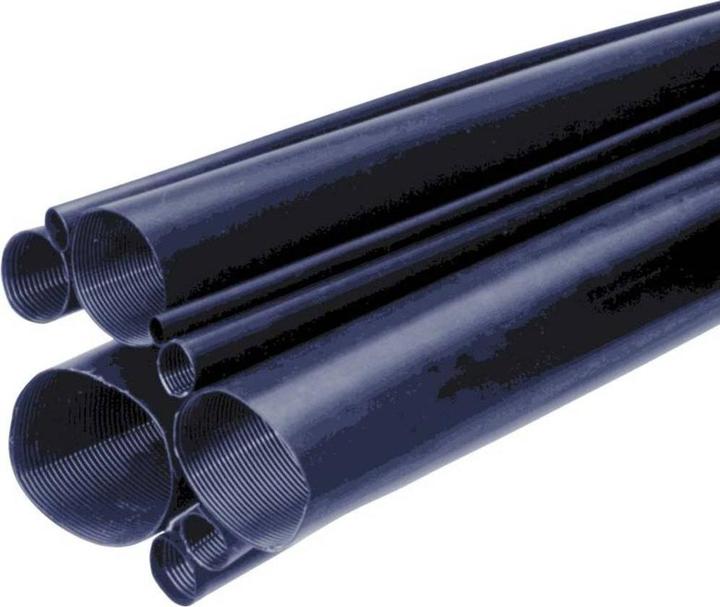

3M TE100046602 Heat shrink tubing (TE100046602)

3M Deutschland Heat Shrink Tubing MDT-A 90/36

Manufacturer: 3M Deutschland
Designation: Heat shrink tubing with 90/36 mm
Type: MDT-A 90/36
Design: medium wall
Shrink ratio: 3:1
Inner diameter before shrinking: 90 mm
Inner diameter after shrinking: 36 mm
Wall thickness after shrinking: 3.3 mm
Length: 1 m
Operating temperature: 130 °C
Color: black
Transparent: no
Material: Polyolefins (PO-X)
Halogen-free: yes
With internal adhesive: yes
Printable: no
UL approval: no

The 3M Heat Shrink Tubing MDT-A is a halogen-free, medium wall heat shrink tubing made from cross-linked polyolefin with a melt adhesive coating. The melt adhesive penetrates all irregularities and cavities, preventing moisture ingress. The tubing is suitable for insulating plastic and mass cables up to 0.6/1 kV for both outdoor and underground installation.

This aging-resistant heat shrink tubing is UV resistant and resistant to many chemical influences. It can be used in a temperature range of -55 °C to +130 °C. With its high shrink ratio of 3:1, it can accommodate large diameter jumps with just one tubing. The 3M Heat Shrink Tubing MDT-A meets technical requirements according to IEC 60684 and is approved by Lloyds Register of Shipping, Certificate 95/30032(E5). It is halogen-free and RoHS compliant.
