30 meter DisplayPort 1.4 ive Optical Cable 8K with detachable connector DisplayPort male

30 m, DisplayPort
Delivered between Tue, 17.6. and Thu, 19.6.
5 items in stock at supplier

Product details

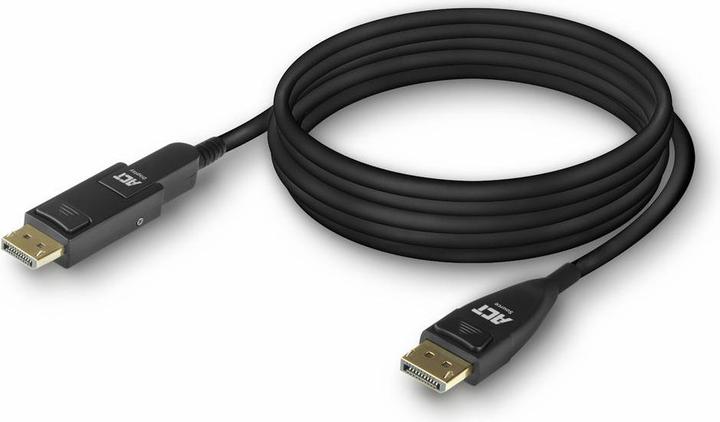

The ACT AOC 8K DisplayPort cable is made of copper and fiber to connect different devices over long distances up to 30 m without the loss of data. The Active Optical Cable has a bandwidth of 32.4 Gbps 4:4:4 to handle the resolution of 7680x4320 (8K) at 60 Hz. The cable is supplied on a coil and comes with a detachable plug for easy installation through electrical conduits and plenum spaces. Additionally, the cable supports HDR, HDCP 2.2, EDID, DDC, CEC, multi-channel audio, Dolby True HD, DTS-HD Master Audio, and ARC.

AOC: Copper and glass for longer distances and the best video and audio quality. The AOC (Active Optical Cable) is made of copper and fiber for transferring 8K at 60 Hz over long distances up to 100 m without data loss. It has a bandwidth of 32.4 Gbps 4:4:4. The cable features Kevlar protected fiber, aluminum foiled shielding, and is suitable for sensitive applications due to low RFI/EMI. The cable is supplied on a coil.

Resolution of 8K at 60 Hz. This 8K DisplayPort cable supports a resolution of 7680x4320 at 60 Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, DDC, CEC, multi-channel audio, Dolby True HD, DTS-HD Master Audio, and ARC.

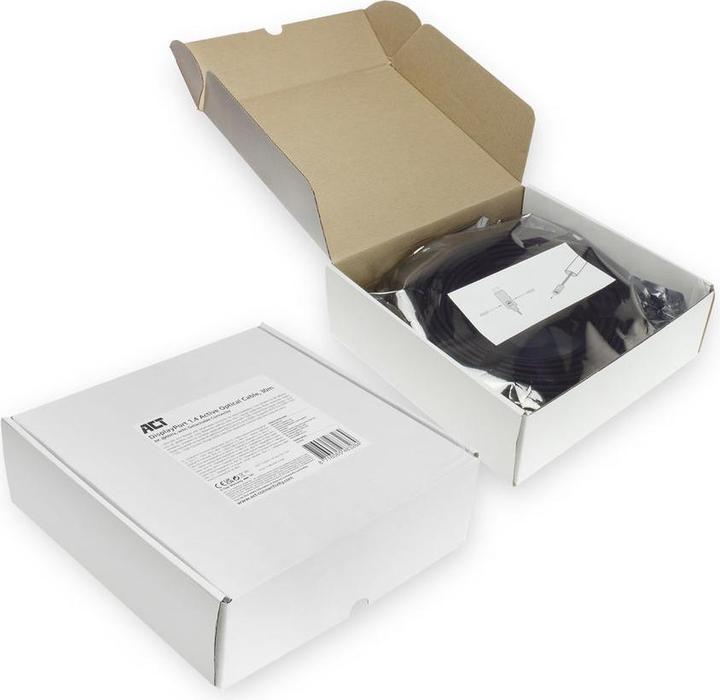

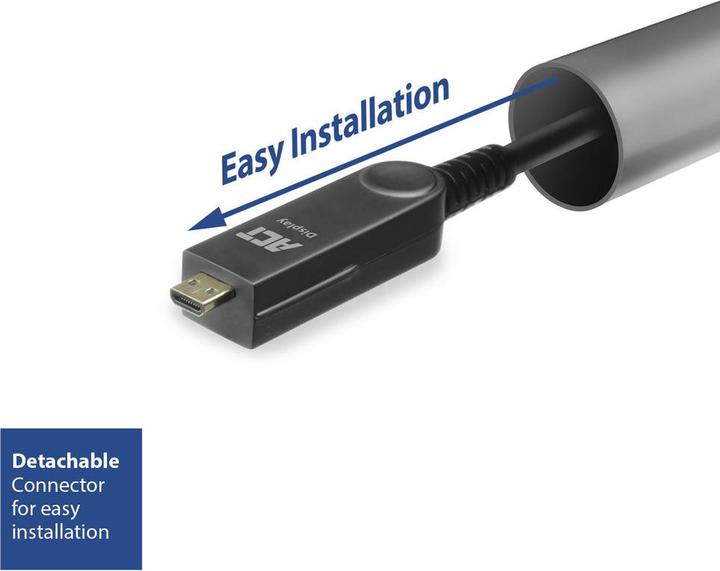

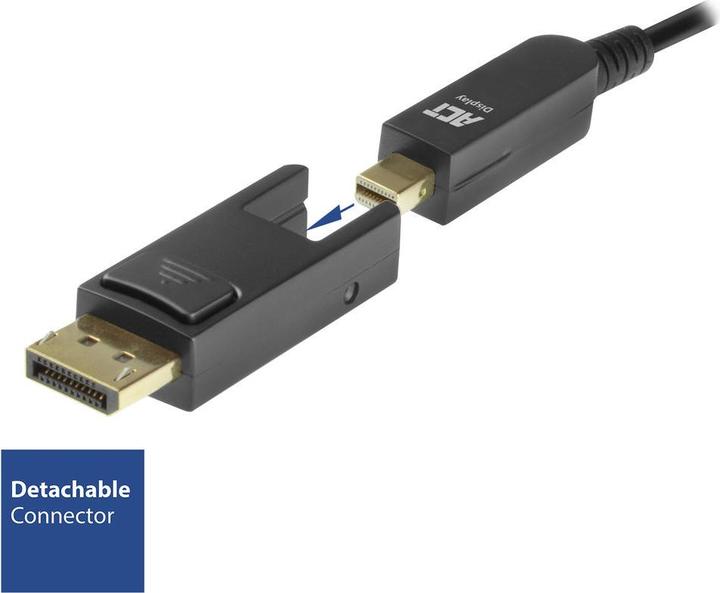

Ultra slim flexible cable with detachable connector for easy installation. The flexible cable is ultra slim and can be easily pulled through narrow electrical conduits and plenum spaces. Simply disconnect the detachable plug from the cable, pull this flexible cable through a conduit, and reconnect the detachable plug to the cable.

Additional features. It is important that the cable is connected correctly. The ACT AOC DisplayPort cable is marked to ensure easy identification of the source and display connector.

Key specifications

Video cable type
DisplayPort cable
Cable connection
Connection (m/m)
Connection A
DisplayPort
Connection B
DisplayPort
Length
30 m
Item number
17212517

General information

Publisher
ACT
Category
Video cables
Manufacturer no.
AK4154
Release date
14.10.2021

Colour

Cable colour
Black

Material

Material
CopperPolyvinyl chloride (PVC)

Video cable properties

Video cable type
DisplayPort cable
Cable version
Display port 1.4
HDMI version
1.4
Type
Cable
Cable design
PVC jacket
Cable connection
Connection (m/m)
Maximum image quality
8K
Max. Video resolution
7680 x 4320 pixels
Max. video resolution standard
8K
Maximum frame rate
50 Hz
Inner conductor Material
Copper
Cable Application
DisplayPort
Max. data transfer rate
259.20 Gbit/s

Plug type

Connection A
DisplayPort
Connection B
DisplayPort
Plug type
Flat
Color Connections
Black

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Items per sales unit
1 Piece
Length
30 m

30-day right of return
24 Months Warranty (Bring-in)
