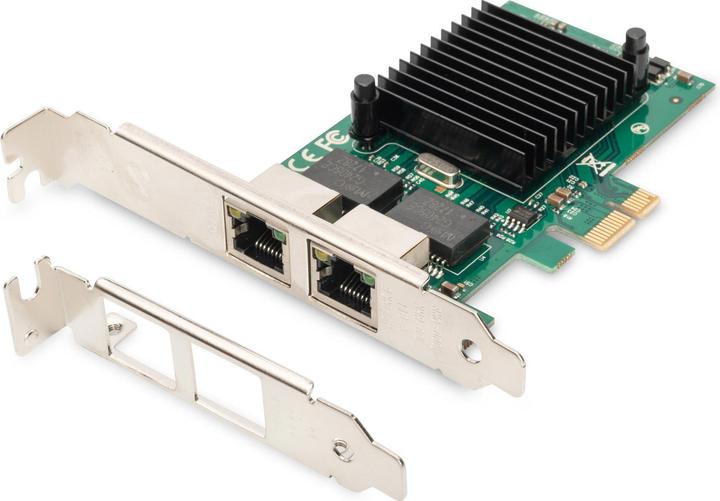

Digitus Gigabit Ethernet PCI Express Card, 2-port (PCI-E x1)
CHF29.–

Digitus Gigabit Ethernet PCI Express Card, 2-port

PCI-E x1


Question about Digitus Gigabit Ethernet PCI Express Card, 2-port

avatar
EnzoQ844

4 months ago

Is it possible to make a pastrough with Proxmox and if so, is it possible to assign the 2 ports to 2 different vm?

Avatar
avatar
digitec

4 months ago

Helpful answer

Yes, it is possible to do a passthrough with the Digitus Dual Gigabit Ethernet PCI Express card on Proxmox, but with certain limitations.

### Network card passthrough
- Each port on the network card must have its own IOMMU group in order to be passed individually to the VMs. If the ports share the same IOMMU group, you will not be able to pass them individually.

### Allocating ports to different VMs
- If ports have separate IOMMU groups, you can configure passthrough to allocate each port to a different VM. This involves configuring passthrough so that each port is associated with a specific VM, using the Proxmox configuration options for PCI devices.

### Configuration
- You need to configure the network bridges in Proxmox so that each VM uses a different port on the network card. This can be done by creating separate network bridges for each port and associating them with the corresponding VMs.

In short, if the IOMMU conditions are met, you can allocate the two network card ports to two different VMs using Proxmox's passthrough features.
