Best JUNG products in the Weather station accessories category
On this page you'll find a ranking of the best JUNG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

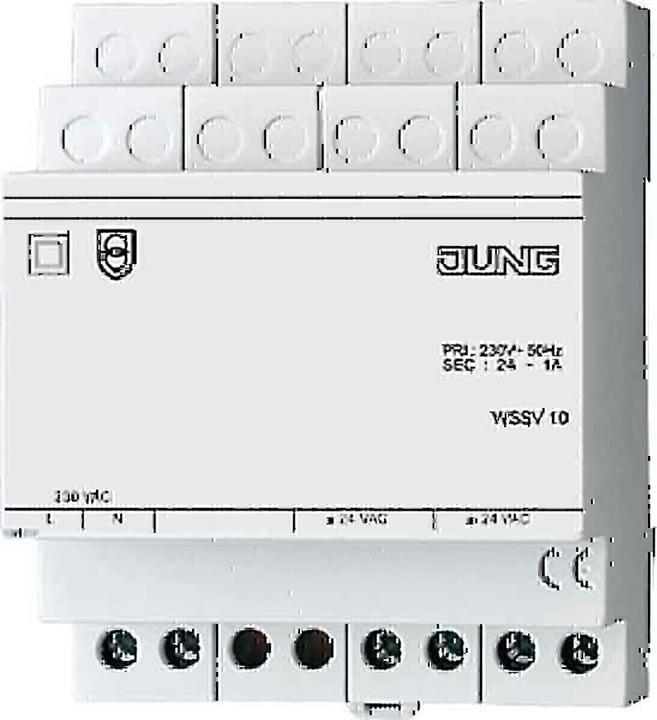

1. JUNG Power supply NaV 4TE 1000mA WSSV10
The NaV 4TE 1000mA power supply WSSV10 from JUNG is a reliable accessory for weather stations, ensuring a stable power supply. With an output voltage of 24 V and a maximum output current of 1 A, this device is ideal for use in various weather stations, including the models WSK 100 REG and WS 10 KS. The power supply is designed for mains operation and offers easy mounting on DIN rails according to DIN EN 60715. It is short-circuit proof and features overload protection through an integrated thermal switch, enhancing the safety and longevity of the device. The power supply is suitable for indoor use and can operate in a temperature range of -5 to +40 °C. Its compact design with a width of 72 mm allows for space-saving installation in distribution boards.
- Two internally connected 24 V outputs for flexible applications
- Overload and short-circuit protection through integrated thermal switch
- Suitable for rail mounting, facilitating installation
- Operation possible at an ambient temperature of -5 to +40 °C
- High relative humidity of up to 93 % r. F. without condensation.

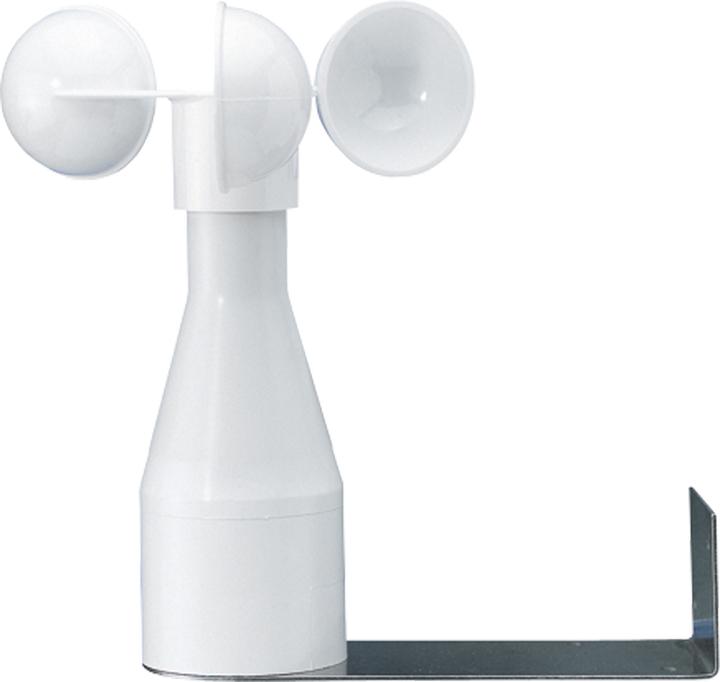

2. JUNG Wind sensor
The wind sensor from JUNG is a highly advanced measuring device specifically designed for connection to converters such as item no.: 17 USW UP, 17 USW REG, and 17 UW REG. This product serves to protect against storm damage to electrically operated blinds and awnings by enabling precise wind speed measurements. The sensor is equipped with a swiveling arm that can move ±90°, allowing for flexible adaptation to different installation conditions. Made in Germany, the wind sensor offers a reliable and durable solution for monitoring wind conditions. It is an essential accessory for weather stations and helps ensure the safety and functionality of outdoor installations. With this wind sensor, users can proactively respond to changing weather conditions, thereby minimizing potential damage to their facilities.

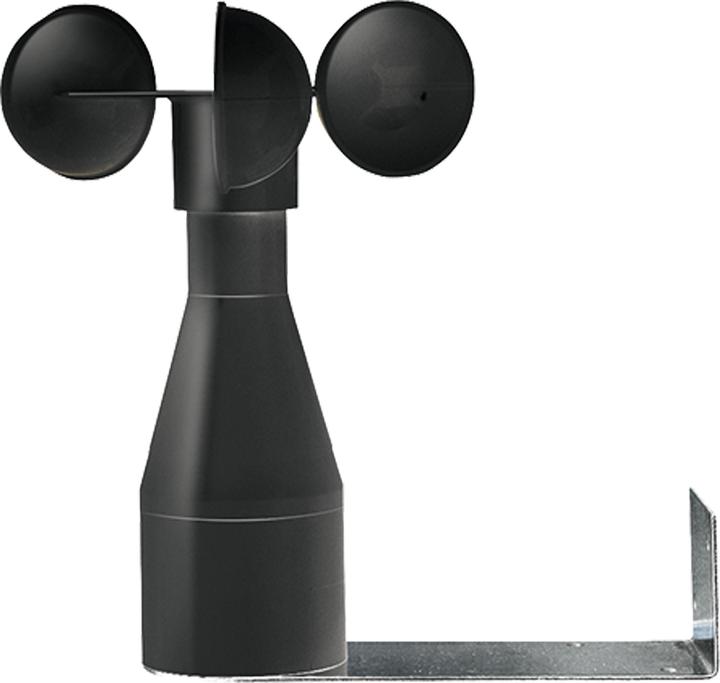

3. JUNG Wind sensor AP sw mt 132WS
Jung Wind Sensor 132 WS
Manufacturer: Jung
Designation: Wind Sensor
Type: 132 WS
Version: Wind Sensor
Further details for connection to converter Art. No.: 132 U. The connection cables must always be shielded. Either a 2-wire cable or a 4-wire cable, e.g., Siemens MSR control LSYCY or telephone cable J-Y(St)Y 2x2x0.6 should be used. Connection cable approximately 3 m pre-assembled.
EAN: 4011377145054.

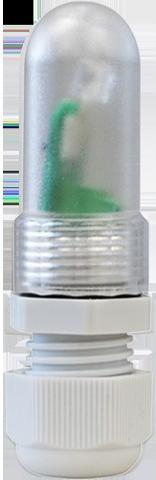

4. JUNG ARB1 TEST WS10R
Jung WS10R Rain sensor 24VAC/DC.

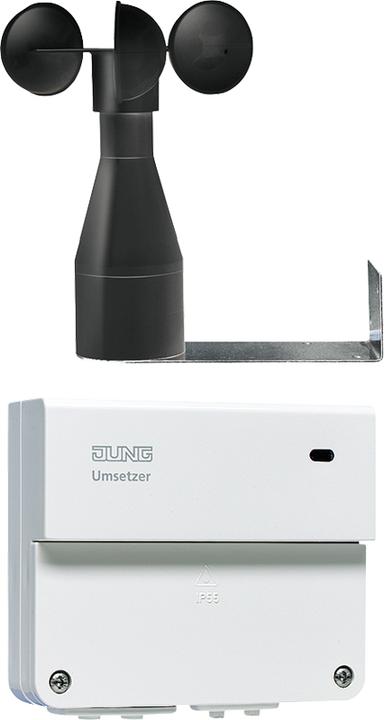

5. JUNG Wind sensor converter 132 U WS
Jung Wind Sensor Converter 132 U WS
Manufacturer: Jung
Designation: Wind Sensor Converter
Type: 132 U WS
Version: Wind Sensor
Further details:
Intended use
The converter and wind sensor are designed to protect a covering from damage caused by strong winds. The covering is moved to a secure end position and locked there until the set wind strength value is fallen below. The converter operates in conjunction with a universal blind insert or binary inputs of the KNX system.
Product features:
- Detection and evaluation of wind speeds
- 8 adjustable wind strengths
- Wind alarm is triggered 15 seconds after exceeding the set wind strength threshold
- Test operation for functional testing
Color of the wind sensor: black (similar to RAL 9005)
EAN: 4011377145061.
6. JUNG EIB multiple sensor bw, IP65 WS10KS
The combination sensor records weather data such as wind speed, precipitation, and brightness separately for the directions East, South, and West. It is suitable for outdoor mounting on a mast or wall. The transmission of measurement data to the weather station occurs via a 4-wire cable. Parameterization and data evaluation are carried out in the weather station itself. The operational reliability of the wind and rain sensors is of particular importance and is therefore monitored cyclically. The heating of the combination sensor protects the electronics from dew and condensation within the specified temperature range. However, it does not protect against ice formation on the housing or moving parts. To protect against penetrating moisture, the 10-meter long connection cable (6-core) is directly connected to the device. The combination sensor requires the power supply Art. No.: WSSV 10. Power supply for the sensor unit (including heating): AC 24 V ~ ± 15 %, 50/60 Hz Max. current consumption: 600 mA Connection cable: LiYCY, 6 x 0.25 mm², shielded Length: 10 m, max. 50 m Environmental conditions Ambient temperature: -40 ... +60 °C (ice-free) Storage/transport temperature: -40 ... +60 °C Humidity: outdoor area Protection class: IP55 Protection class: III Dimensions (Ø x H): 130 x approx. 200 mm (without stainless steel mounting bracket) Mounting: stainless steel mounting bracket on mast or wall Weight: approx. 330 g (without stainless steel mounting bracket) Sensor signals: Wind sensor Measurement range: approx. 1 ... 40 m/s Accuracy: ± 0.5 m/s, -20 ... +60 °C Rain sensor Measurement range: Precipitation yes / no Sensitivity: fine drizzle Switch-on delay: approx. 3 precipitation particles Switch-off delay: approx. 2 min Brightness sensor Measurement range: approx. 1 ... 110 klx Spectral range: approx. 700 ... 1050 nm Directions: East, South, West Twilight sensor Measurement range: approx. 0 ... 674 lx.
7. JUNG Sonnensensor
The JUNG sun sensor is an innovative accessory for weather stations, specifically designed to optimize sun protection and enable the automatic control of electrically operated blinds and awnings. This product enhances living comfort by regulating indoor lighting conditions, thereby creating a pleasant atmosphere. The sun sensor is easily connected to the actuator models 17 USW UP, 17 USW REG, and 17 USD REG and comes with the necessary mounting materials, making installation straightforward. Made in Germany, the sun sensor represents quality and durability. It is a practical solution for anyone who values intelligent control of their shading systems while promoting energy efficiency. With this product, users can enjoy the benefits of automated control that adjusts to sunlight, optimizing energy consumption.

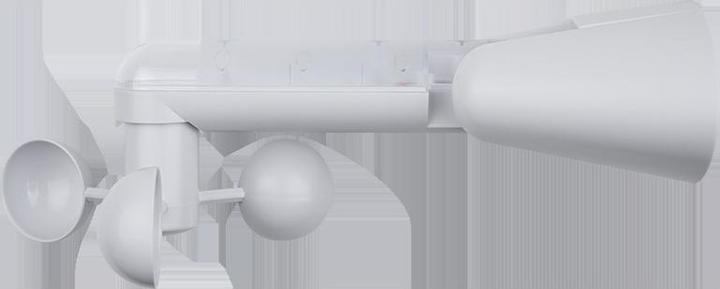

8. JUNG EIB wind sensor ws, IP65 WS10W
Jung WS10W Wind sensor 24VAC/DC.

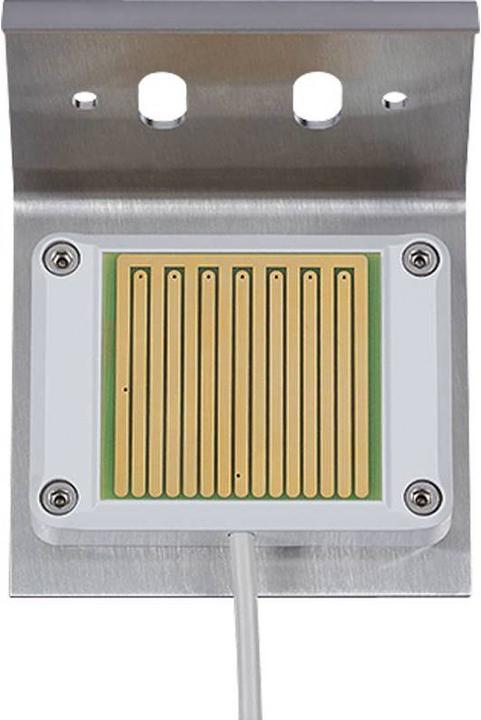

9. JUNG RW95 Precipitation sensor 230V, 6A, 50Hz
Jung Rain Sensor RW 95
Manufacturer: Jung
Designation: Rain sensor for weather data
Type: RW 95
Execution: Precipitation sensor
Nominal voltage: 230 V
Rated current: 6 A
Frequency: 50-60 Hz
Intended use: Sensor for detecting and evaluating precipitation. Allows for actions such as retracting awnings when rain begins, in conjunction with blind control systems. Surface-mounted device for outdoor installation.
Product features: Meander-shaped sensor surface detects wetting from precipitation. Changeover relay remains activated until the sensor dries, for at least 10 minutes. Integrated heating accelerates the drying of the sensor surface and melts snow and ice.
Potential-free changeover contact. Direct connection to universal blind control possible.
Nominal voltage: AC 230 V, 50/60 Hz
Current consumption: approx. 15 mA (with preheating)
Power consumption: max. 4.5 W (including additional heating)
Switch-off delay: approx. 10 min
Relay output dry: contact open
Rain: contact closed
Switching capacity of the relay: max. 1500 W (ohmic)
Relay contact load capacity: 6 A / AC 250 V
Ambient temperature: -30 to +50 °C
Protection class: II
Protection rating: IP65
Connection cable: hose cable, 2.9 m, JZ-600, 3 x 0.75 mm², 2.9 m, JZ-600, 2 x 0.75 mm²
Dimensions: 130 x 90 x 90 mm (including mounting bracket)
Weight: approx. 600 g (including mounting bracket)
Mounting position: specified by 110° mounting bracket.
