JUNG RW95 Precipitation sensor 230V, 6A, 50Hz

Jung Rain Sensor RW 95

Manufacturer: Jung
Designation: Rain sensor for weather data
Type: RW 95
Execution: Precipitation sensor
Nominal voltage: 230 V
Rated current: 6 A
Frequency: 50-60 Hz

Intended use: Sensor for detecting and evaluating precipitation. Allows for actions such as retracting awnings when rain begins, in conjunction with blind control systems. Surface-mounted device for outdoor installation.

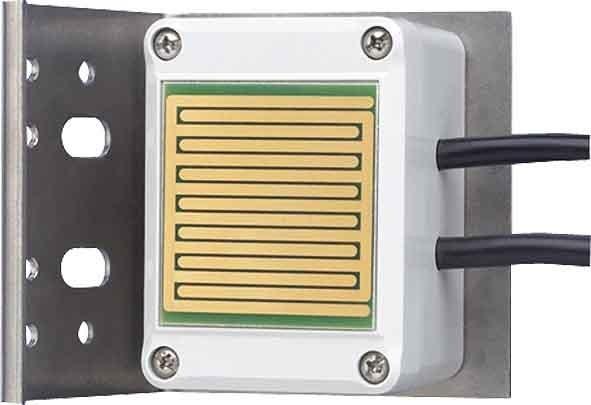

Product features: Meander-shaped sensor surface detects wetting from precipitation. Changeover relay remains activated until the sensor dries, for at least 10 minutes. Integrated heating accelerates the drying of the sensor surface and melts snow and ice.

Potential-free changeover contact. Direct connection to universal blind control possible.
Nominal voltage: AC 230 V, 50/60 Hz
Current consumption: approx. 15 mA (with preheating)
Power consumption: max. 4.5 W (including additional heating)
Switch-off delay: approx. 10 min
Relay output dry: contact open
Rain: contact closed
Switching capacity of the relay: max. 1500 W (ohmic)
Relay contact load capacity: 6 A / AC 250 V
Ambient temperature: -30 to +50 °C
Protection class: II
Protection rating: IP65
Connection cable: hose cable, 2.9 m, JZ-600, 3 x 0.75 mm², 2.9 m, JZ-600, 2 x 0.75 mm²
Dimensions: 130 x 90 x 90 mm (including mounting bracket)
Weight: approx. 600 g (including mounting bracket)
Mounting position: specified by 110° mounting bracket.
