Best EKWB products in the Water cooling radiators category
On this page you'll find a ranking of the best EKWB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

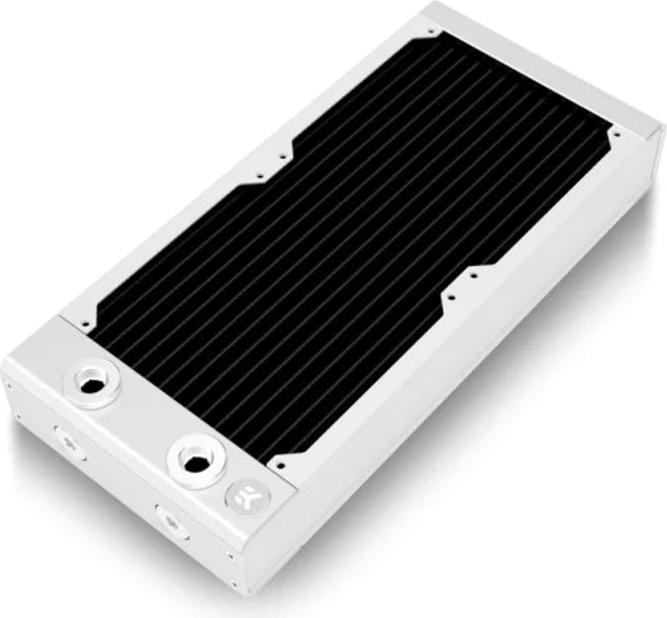

1. EKWB EK Quantum Surface X280M
The EK-Quantum Surface X280M is a highly advanced water cooling radiator designed for efficient heat dissipation in computer systems. With a robust stainless steel housing and a thick copper core, this radiator delivers outstanding performance. The use of copper fins ensures optimal heat transfer, while the durable coating enhances the product's longevity. The radiator is designed for use with two 140 mm fans, allowing for flexible cooling options. With a maximum operating pressure of 1 bar, the EK-Quantum Surface X280M is suitable for both beginners and experienced users who value reliable and powerful cooling. The easy disassembly of the radiator supports modding projects and customizations, making it ideal for individual builds.
- Thick copper core for optimal heat dissipation
- Durable coating for increased longevity
- Sixteen 2 mm copper tubes for high water flow
- Compatible with two 140 mm fans
- Easy disassembly for modding suitability.
2. EKWB EK-CoolStream XE 120 (Single) Radiator
EK-CoolStream XE is an extreme-performance computer liquid cooling radiator that combines EK's unique CSQ design with the latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range, delivering exceptional performance at both low and high airflow operation.
With assured quality, an optimal price-performance ratio, and a unique minimalistic design, the EK-CoolStream XE series radiators are a perfect choice for any computer water-cooled system.
This radiator offers the best cooling capacity in the 60mm thick radiator class. Triple stack copper fins provide a massive surface area while the parallel flow cooling chambers minimize hydraulic flow resistance. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation, further increasing cooling performance.
This product features four recessed G1/4 threaded ports with two pre-installed extenders from the front side to allow any G1/4 threaded fitting to be used. The ports are closed with two G1/4 plugs from the back side. EK recommends EK-ACF series compression fittings.
3. EKWB EK-Quantum Surface S120 Single Fan Radiator
The EK-Quantum Surface S120 Single Fan Radiator from EK Water Blocks is a highly advanced solution for cooling computer systems. With a copper core and a thickness of just 30 mm, this radiator offers excellent heat dissipation, ensuring efficient cooling. The 20 FPI fin density provides an optimal balance between heat exchange and air resistance, further enhancing the performance of the cooling system. The radiator is designed for easy disassembly, allowing modding enthusiasts to make custom modifications and personalize the system's design. The durable coating ensures longevity and protects the radiator from wear and tear. With a diameter of 120 mm, the radiator is designed for a single fan, providing effective cooling for compact systems.
- Copper core for optimal heat dissipation
- 20 FPI fin density for efficient heat exchange
- Easy disassembly for modding adjustments
- Durable coating for increased longevity
- Brass cooling channels for improved water flow.

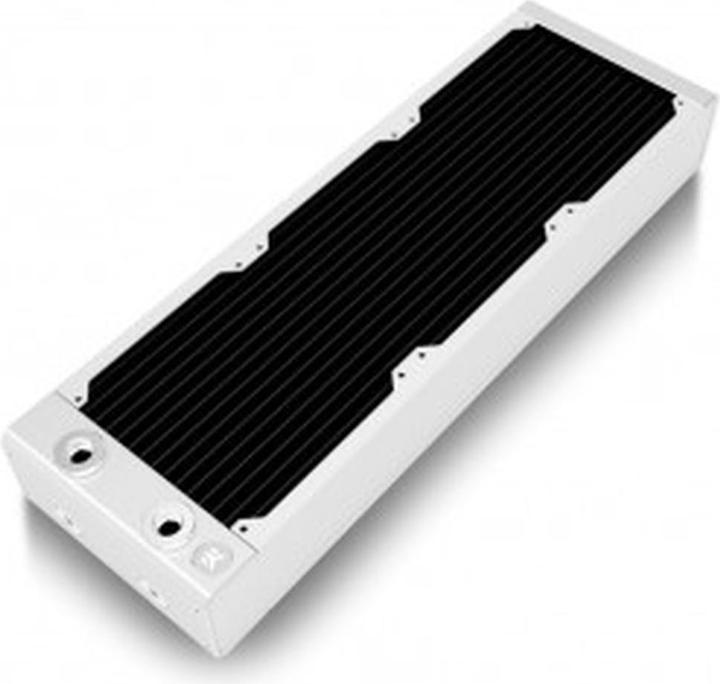

4. EKWB EK Quantum Surface X360M
The EK-Quantum Surface X360M radiator from EK Water Blocks is a highly advanced solution for cooling computer systems. It is distinguished by its excellent heat dissipation, achieved through a thick copper core and a dense arrangement of copper fins. With a multiport layout, this radiator offers flexibility in installation and allows for optimal adaptation to various cooling configurations. The robust coating ensures durability and protects the radiator from external influences. The radiator is designed for use with up to three 120 mm fans, ensuring efficient cooling. With a maximum operating pressure of 1 bar and a weight of 2.07 kg, the EK-Quantum Surface X360M is both powerful and stable, making it an ideal choice for demanding PC builders and gamers.
- Thick copper core for optimal heat dissipation
- 16 cooling tubes with a diameter of 2 mm for high water flow
- Robust coating for increased durability
- Multiport layout for flexible installation options
- Compatible with up to three 120 mm fans.
5. EKWB EK Quan Surface P360 bk Edition 3831109892060
Completely black 360 mm radiator with 44 mm thickness, fins and channels made of copper, exclusive modding design, 5 G1/4 connections, high-quality workmanship, suitable for custom loops.
6. EKWB EK Quantum Surface P280M X-Flow
280mm radiator with 44mm thickness, fins and channels made of copper, exclusive modding design, 8 G1/4 connectors, high quality finish, suitable for custom loops.

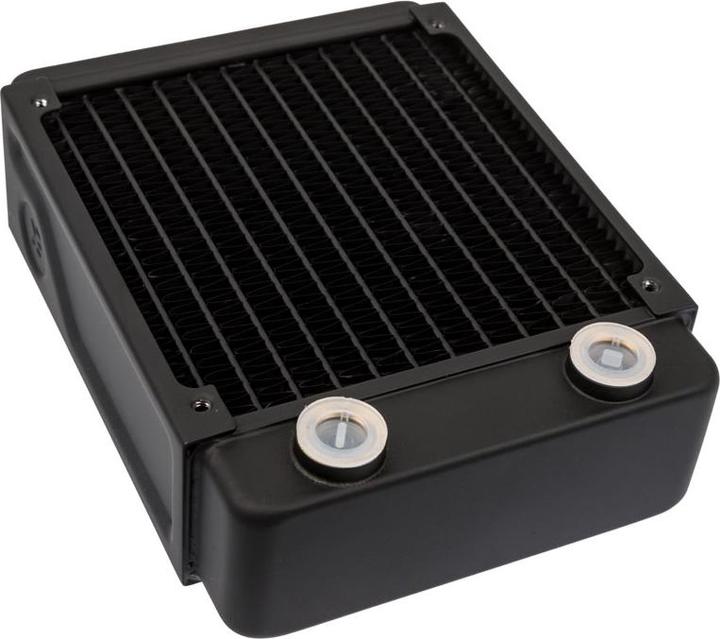

7. EKWB EK-CoolStream Classic PE 120
The EK-CoolStream Classic PE 120 is a powerful 120mm single radiator specifically designed for the efficient cooling of PC systems. With a robust construction made of copper and brass, along with a sturdy black steel frame, this radiator offers both durability and an appealing aesthetic. It supports up to two 120mm fans in a push/pull configuration, significantly enhancing cooling performance. With a thickness of 45 millimeters and 13 FPI (Fins Per Inch), the radiator ensures optimal heat dissipation, making it ideal for demanding applications. The two G1/4 connections allow for easy integration into existing water cooling systems.
- Robust construction of copper and brass for improved heat transfer
- Supports push/pull configuration with up to two 120mm fans
- Pressure tested up to 1 Bar for increased reliability
- Compatible with common water cooling systems via G1/4 connections.
8. EKWB EK Quan.Surface X240M bk
The EK Water Blocks EK-Quantum Surface X240M is a highly advanced water cooling radiator designed for efficient heat dissipation. With a thick copper core and copper fins featuring a density of 18 FPI, this radiator offers an optimal balance between heat exchange and airflow resistance. The construction includes sixteen 2 mm cooling tubes that ensure excellent water flow, maximizing cooling performance. The multiport layout with a total of five G1/4 inch connections allows for flexible integration into various cooling loops and future builds. The durable coating ensures longevity and protects the radiator from external influences. With the ability to mount two 120 mm fans, the EK-Quantum Surface X240M is an excellent choice for anyone seeking a powerful and customizable water cooling solution.
- Thick copper core for optimal heat dissipation
- 16 cooling tubes with a diameter of 2 mm for high water flow
- Flexible multiport layout with five G1/4 inch connections
- Durable coating for increased longevity
- Easy disassembly for modding and maintenance.

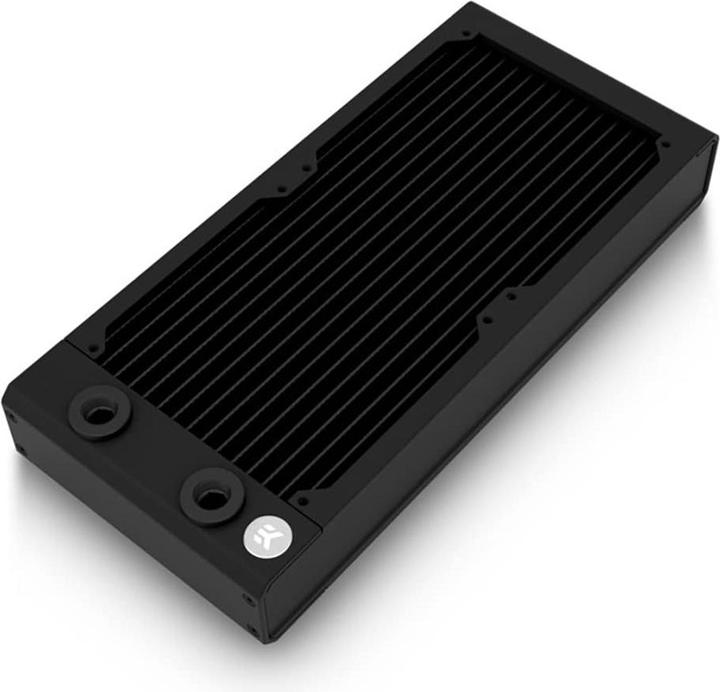

9. EKWB EK Quantum Surface P280M
280mm radiator with 44mm thickness, fins and channels made of copper, exclusive modding design, 5 G1/4 connectors, high quality finish, suitable for custom loops.
10. EKWB EK-Pro Radiator P480 Multiport - 480 mm, black
480 mm copper radiator with a depth of 45 mm. Compatible with 120 mm fans. 4x G1/4-inch threads. 14x 2 mm copper heat pipes ensure optimal cooling.
EK-Pro P Series: The all-rounder. With a slim depth of just 45 mm, the EK-Pro P radiators are the best solution for low noise levels while delivering high performance. Additionally, they allow for a push/pull configuration that optimizes cooling efficiency.
The multiport layout. Each side of the radiator features two G1/4-inch ports, providing high flexibility so you can freely design your loop.
Optimal cooling flow. The copper fins in the radiator have a density of 18 FPI, which leads to an excellent balance between heat exchange and air resistance. The copper core with an improved fin structure further maximizes the performance of the radiators.
Technical details:
- Color: Black
- Dimensions: 515 x 45 x 120 mm (W x H x D)
- Material: Copper (fins, channels), brass (end cap cover), steel (frame)
- Weight: 1.15 kg
- Connections: 4x G1/4 inch
- Pressure tested up to: 1 bar
- Fan compatibility: 120 x 120 x 25 mm fans
- Package includes: EK-Pro Radiator P360 Multiport – Black, 12x M4x30 mm screws for 25 mm deep fans, 12x M4x5 mm screws for mounting the radiator directly to the case, 6 mm steel Allen wrench, 9 mm steel Allen wrench.
