Best Rs Pro products in the Transformer category
On this page you'll find a ranking of the best Rs Pro products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Rs Pro 1.65kVA Wall Mount Transformer 230V-110V
Primary nominal voltage: 230 V ac
Secondary nominal voltage: 110 (55 V-0 V-55 V) V
Nominal power: 1.65 kVA
Output current: 2 x 16 A
Socket type: BS EN 60309
Length: 270 mm
Width: 180 mm
Depth: 244 mm
Dimensions: 270 x 180 x 244 mm
Mounting type: Wall mount
Minimum operating frequency: 50 Hz
BS EN 61558, BS EN 61558-20-23, BS EN 60529, RoHS Directive 2011/65/EU. Single-phase wall-mounted transformers from RS Pro with 230 V ac input and 110 V ac output. High-quality continuously single-phase wall-mounted transformers from RS Pro are designed for the safe electrical connection of power tools, etc., in industrial settings, workshops, and other fixed installations. These site transformers are continuously single-phase, with a 230 V ac input and a 110 V ac output. The wall-mounted transformers from RS Pro feature a robust painted IP22 steel housing with mounting flanges and conduit entries. Features: UK quality manufacturing, 230 V ac input – 110 V ac output, 110 V with center tap to earth (CTE) secondary winding, thermal-magnetic trip to reduce the likelihood of overload, Class 1.
2. Rs Pro Transformer Toroidal 15VA 2x12V
Primary rated voltage: 115 V AC, 230 V AC
Secondary rated voltage: 2 x 12 V AC
Rated power: 15 VA
Number of outputs: 2
Secondary current: 625 mA
Height: 31 mm
Weight: 365 g
Diameter: 60 mm
Dimensions: 60 (Dia.) x 31 mm
Operating frequency min.: 50 Hz
Operating frequency max.: 60 Hz
Connection type: Connection wire with copper conductor
Under no circumstances should both ends of the fixing screw touch the metal housing or the metal frame at the same time, as this would lead to a dangerous short circuit. Mounting parts not included, available separately. Toroidal core, open type, dual 115 V primary winding. High quality open type toroidal transformers with dual 115 VAC, 50/60 Hz primary windings. The two independent secondary windings can be connected individually, in series or in parallel as required.
Features and advantages:
- Small size and light weight compared to traditional laminated stack designs
- Very low radiated magnetic field
- Very low induced noise (hum)
- Very low iron loss
- Double insulated primary terminals.
3. Rs Pro 250VA Panel Isolation Transformer 2x115V
Primary rated voltage: 15 to 400V AC
Secondary rated voltage: 12V AC, 115V AC
Rated power: 250VA
Mounting type: DIN rail mounting, screw mounting
Length: 96mm
Width: 105mm
Depth: 110mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Weight: 3.7kg
RS Pro panel isolating transformers are designed for use in general purpose applications. These single phase transformers feature screw terminals for multiple inputs and brackets for screw mounting or DIN rails. They have a standard primary winding for 0-230-400V AC with adjustment capabilities of +/- 15V around 0, and they are 100% electrically and flash tested.
Features:
- High quality safety and isolation transformers
- Second section coil core for complete separation between primary and secondary windings
- Low noise sheet packs
- Grounding terminal supplied
- High efficiency
- Lacquer impregnated.
4. Rs Pro 3Ph 10A Enclosed Variable Transformer
Primary nominal voltage: 415V
Secondary rated voltage: 0 → 415 V, 0 → 470 V
Rated power: 8.14 kVA
Mounting type: Surface mount
Knob rotation direction: Clockwise
Number of phases: 3
Number of outputs: 3
Connection type: Cable termination
Weight: 33.5 kg
Dimensions: 200 x 250 x 425 mm
Secondary current: 10 A
Depth: 425 mm
Length: 200 mm
Protections: Overload protection
Encapsulated regulating transformer. Professional transformers with potted design in single-phase or three-phase versions. The transformers are not designed for line isolation but operate on line voltage. All transformers must be grounded through the ground connection studs. A rugged series of encapsulated variable transformers for SMD floor or wall mounting. Single and three-phase versions available in a variety of current ratings. Infinitely variable AC output voltage with overvoltage connection. Heavy-duty construction, high efficiency, excellent regulation, no waveform distortion, silver-plated commutator, overload capacity, uniform linear output, low maintenance, trouble-free, and long life.
5. Rs Pro 3Ph 20A Enclosed Variable Transformer
Primary nominal voltage: 415V
Secondary rated voltage: 0 → 415 V, 0 → 470 V
Rated power: 16.3kVA
Mounting type: Surface mount
Knob rotation direction: Clockwise
Number of phases: 3
Number of outputs: 3
Connection type: Cable termination
Weight: 50.1kg
Dimensions: 250 x 300 x 445mm
Secondary current: 20A
Depth: 445mm
Length: 250mm
Operating frequency min: 50Hz
Encapsulated regulating transformer. Professional transformers with encapsulated design in single-phase or three-phase versions. The transformers are not designed for mains isolation but operate with mains voltage. All transformers must be grounded through the ground connection studs. A rugged series of encapsulated variable transformers for SMD floor or wall mounting. Single and three-phase versions available in a variety of current ratings. Infinitely variable AC output voltage with overvoltage connection. Heavy-duty construction, high efficiency, excellent regulation, no waveform distortion, silver-plated commutator, overload capacity, uniform linear output, low maintenance, trouble-free, and long life.

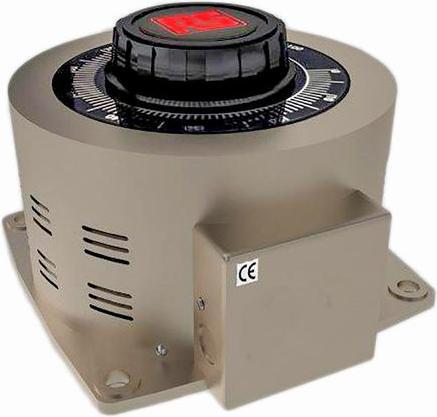

6. Rs Pro 1Ph 28A Enclosed Variable Transformer
Rated primary voltage: 240V
Rated secondary voltage: 0 → 240V, 0 → 270V
Rated power: 6.72kVA
Mounting type: Surface mounting
Knob direction of rotation: Clockwise rotation
Number of phases: 1
Number of outputs: 1
Connection type: Cable termination
Weight: 25kg
Dimensions: 300 x 300 x 225mm
Secondary current: 28A
Depth: 225mm
Length: 300mm
Operating frequency min.: 50Hz
Potted regulating transformer. Professional transformers with encapsulated design in single-phase or three-phase configurations. The transformers are designed to work with mains voltage but are not developed for mains insulation. All transformers must be earthed via the earthing connection bolts. This rugged series of encapsulated variable transformers is suitable for SMD floor or wall mounting. Single and three-phase versions are available in a variety of rated currents. Features include continuously variable AC output voltage with overvoltage connection, heavy-duty construction, high efficiency, excellent regulation, no waveform distortion, silver plated commutator, overload capacity, uniform linear output, low maintenance, and long life.
7. Rs Pro Clamp mount transformer,20VA 2x0-24V o/p
The RS PRO chassis-mounted transformer is a reliable device designed for various applications in electrical engineering. With a rated power of 20 VA and a secondary output voltage of 24 V AC, this transformer provides efficient conversion of electrical energy. It is suitable for use in systems with a primary voltage of 115 V AC or 230 V AC. The terminal mounting allows for easy installation in different enclosures or chassis. The transformer features an efficiency of 80%, making it an energy-efficient choice for your projects. With a compact design and robust construction, this transformer is ideal for applications that require a reliable power supply.
- Two output channels for flexible applications
- Energy-efficient with an efficiency of 80%
- Simple terminal mounting for straightforward installation
- Suitable for various primary voltages (115 V AC and 230 V AC).
8. Rs Pro Clamp mount transformer,20VA 2x15V o/p
Primary rated voltage: 230V AC
Secondary rated voltage: 15V AC
Rated power: 20VA
Number of outputs: 2
Mounting type: Chassis
Length: 59mm
Width: 57mm
Depth: 50mm
Dimensions: 59 x 57 x 50mm
Mounting hole diameter: 4.7 x 8.7mm
Weight: 550g
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Chassis mount, clamp type, 230 Vac, 6 VA to 50 VA. Power transformers for chassis mounting with primary windings for 230 Vac and 50/60 Hz. The two independent secondary windings can be connected in series or parallel as required, allowing many combinations of output voltage and output current. Features include a double chamber coil core, fully jacketed windings, fully enamel impregnated, clamp fixing with two mounting holes, solder lug terminals, and optional terminal covers. The product undergoes 100% electrical and breakdown testing, with test methods to BS3535 and EN60742.
9. Rs Pro Modular DIN-rail Transformer 24Vac 35VA
Primary nominal voltage: 230V AC
Secondary rated voltage: 24V AC
Rated power: 35VA
Mounting type: DIN rail
Number of outputs: 1
Length: 90mm
Width: 88mm
Depth: 58mm
Dimensions: 88 x 58 x 90mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Temperature max.: +130°C
Weight: 900g
RS isolation transformer M36 series. Encapsulated single-phase transformer to IP20 with screw terminals. Mounting on 35 mm DIN rails (TS35). Protected against short-circuits and overload. Designed for continuous load with 100% electrical testing and breakdown testing. Temperature class E (120°)/ta 40 °C.
10. Rs Pro Fastening discs, ∅120mm, pack of 5 pieces
The mounting discs with a diameter of 120 mm are specifically designed for use in ring core transformers. These mounting plates serve as essential accessories to ensure a safe and stable installation of the transformers. The package contains five pieces, providing a practical solution for various applications. With a width of 150 mm, a height of 10 mm, and a length of 130 mm, these mounting discs are versatile and offer the necessary support for transformers. The use of high-quality materials and precise manufacturing guarantees high reliability and durability. These mounting discs are an indispensable element for professionals working in the field of electrical engineering who aim for efficient transformer installation. They help optimize the safety and functionality of electrical systems.
