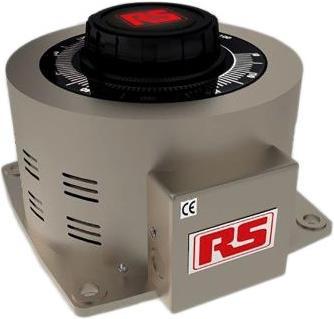

RS PRO 1Ph 28A Enclosed Variable Transformer

Rated primary voltage: 240V
Rated secondary voltage: 0 → 240V, 0 → 270V
Rated power: 6.72kVA
Mounting type: Surface mounting
Knob direction of rotation: Clockwise rotation
Number of phases: 1
Number of outputs: 1
Connection type: Cable termination
Weight: 25kg
Dimensions: 300 x 300 x 225mm
Secondary current: 28A
Depth: 225mm
Length: 300mm
Operating frequency min.: 50Hz

Potted regulating transformer. Professional transformers with encapsulated design in single-phase or three-phase configurations. The transformers are designed to work with mains voltage but are not developed for mains insulation. All transformers must be earthed via the earthing connection bolts. This rugged series of encapsulated variable transformers is suitable for SMD floor or wall mounting. Single and three-phase versions are available in a variety of rated currents. Features include continuously variable AC output voltage with overvoltage connection, heavy-duty construction, high efficiency, excellent regulation, no waveform distortion, silver plated commutator, overload capacity, uniform linear output, low maintenance, and long life.
