Delock Mounting set 31 pieces for M.2 SSD / module
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
Delock screws fixing set 31 pieces for M.2 SSD modules.
Delock Mounting set 31 pieces for M.2 SSD / module
This Delock converter allows for the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD in 2280, 2260, 2242, and 2230 formats and can be connected to a PC or notebook via USB.
The major advantage of this Delock M.2 converter is that both SATA and PCIe (NVMe) M.2 SSDs can be used in the converter. The storage is automatically recognized by the chipset and can then be utilized.
Due to the USB-A connector and the direct installation of the SSD on the board, without a case, the Delock converter can be excellently used as testing equipment.
Specifications
Connections:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A connector
1 x 67 Pin M.2 Key M Slot
Chipset: Realtek RTL9210B
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on SATA or PCIe (NVMe)
Supports NVM Express (NVMe)
Data transfer rate up to 10 Gbps
LED indicator for power and access
Bootable
Dimensions (LxWxH): approx. 110 x 22 x 6 mm
Plug and Play
System Requirements
Android 11.0 or higher
Chrome OS
Linux Kernel 5.13 or higher
Mac OS 12.3.1 or higher
Windows 8.1/8.1-64/10/10-64/11
PC or notebook with a free USB Type-A port
Package Contents
M.2 Converter
Mounting materials
Screwdriver
User manual
Packaging
Retail Box.
Delock Combo converter for M.2 NVMe PCIe or SATA SSD with USB 3.2 Gen 2
This HDD docking station from Delock is designed for the external connection of two 2.5" or 3.5" SATA HDDs via the USB interface. With this solution, you do not need an external enclosure, as the HDD is directly inserted into the docking station. Additionally, the cloning function allows the contents of one hard drive to be copied to another hard drive without the use of a PC.
This converter by Delock enables the simultaneous operation of an M.2 NVMe SSD in 2280, 2260, 2242, and 2230 formats, and a 2.5 or 3.5 SATA HDD or SSD via the USB interface.
Clone function without PC
The integrated clone function allows you to clone storage without the use of a PC. It is possible to clone from NVMe to SATA and SATA to NVMe.
Specifications
Connectors:
- 1 x USB 10 Gbps USB Type-C socket
- 1 x M.2 Key M slot
- 1 x SATA 6 Gb/s 22 pin socket
- 1 x DC power socket
Chipset: JMicron JMS581D
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M on PCIe (NVMe) basis
Maximum height of the components on the module: 1.5 mm, use of double-sided modules possible
For 2.5 and 3.5 SATA HDDs/SSDs
Supports NVM Express (NVMe)
Supports S.M.A.R.T.
Supports TRIM
Supports Native Command Queuing (NCQ)
Data transfer rate up to 10 Gbps
Supports UASP
7 x LED display for power, access, and copy status
Bootable
Function keys:
- 1 x clone button
- 1 x on/off switch
- 1 x switch for clone mode
Dimensions (LxWxH): approx. 107 x 35 x 24 mm
Hot Plug, Plug & Play
Power supply specification
Plug-in power supply unit
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
Output: 12 V / 3 A
Earth outside, plus inside
Dimensions:
- Inside: ø approx. 2.5 mm
- External: ø approx. 5.5 mm
- Length: approx. 10 mm
System requirements
- Android 11.0 or higher
- Chrome OS
- Linux kernel 5.15 or higher
- Mac OS 12.4 or higher
- Windows 10/10-64/11
- iPad Air (4th generation) or higher
- iPad Pro (3rd generation) or higher
- Surface Pro 7
- PC or notebook with a free USB Type-A port or
- Device with a free USB Type-C port or with a free Thunderbolt 3 or Thunderbolt 4 port
Package contents
- USB Type-C converter
- Cable USB-C plug to USB-C plug, length approx. 80 cm
- Cable USB-C plug to USB Type-A plug, length approx. 80 cm
- 3 x rubber nipples
- External power supply 12.0 V / 3.0 A
- Operating instructions.
Delock USB Type-C converter for 1 x M.2 NVMe SSD + 1 x SATA SSD / HDD with clone function
This practical protective case from Delock not only impresses with its modern design but also offers space for SSDs, external enclosures, or hard drives up to 12 x 8 x 2 cm. Additionally, cables can be securely and space-savingly stored thanks to the inner mesh pocket.
Water-resistant and shockproof
The material of the case is water-resistant and protects the contents from light impacts due to its hard shell. The zipper allows for easy opening and closing.
Specifications
- Suitable for 2.5-inch SSDs, external enclosures, or hard drives up to 12 x 8 x 2 cm
- Material: Polyester
- Dimensions (LxWxH): approx. 14.5 x 10 x 3.5 cm
- Color: gray
- Water-resistant surface
Package contents
- Protective case for 2.5-inch devices.
Delock Protective bag for 2.5 SSD
With this dual docking station, you can transfer the contents of hard drives from all common SATA HDDs and SSDs in 2.5" and 3.5" form factors without having to install the drives in the PC or access an external enclosure. The connection to the computer is made via a USB 3.1 Type-C port (Gen. 2), allowing you to utilize the full data transfer rate of the SATA standard (6 Gbps).
Additionally, the clone function enables you to copy the contents of one hard drive to another at the push of a button without the need for a PC.
This heatsink from Delock is designed for heat dissipation of the M.2 module and can be attached to an M.2 module using the included self-adhesive thermal pads.
Note: If the heatsink is only attached to the SSD with the thermal pad, it may come loose if mounted upside down.
Specifications:
- Heatsink
- Material: Aluminum
- Color: Black
- Dimensions (LxWxH): approx. 70.0 x 22.0 x 5.2 mm
System Requirements:
- M.2 Module
Package Contents:
- Heatsink
- 3 x Thermal Pads.
Delock M.2 heat sink, 70x22x5.2mm
This M.2 docking station from Delock allows the operation of two M.2 SATA SSDs and can be connected to a PC or notebook via USB. The included USB cable enables connection to a free USB-C™ port.
M.2 SATA SSD Clone Function
The clone function allows data to be copied from one SSD to another without the need for a PC.
Ideal Testing Equipment
The robust housing allows for easy insertion of the storage, making it ready for immediate use. No screws, tools, or additional accessories are required, allowing for quick SSD swaps.
Specifications
- Connections:
1 x USB 10 Gbps USB Type-C™ port
2 x M.2 Key M slots
1 x USB Type-C™ port (power supply)
- Chipset: Asmedia ASM1352R, VIA VL160
- Supports M.2 modules with Key B+M based on SATA
- Data transfer rate up to 6 Gbps
- Supports UASP
- LED indicators for power, access, and copy status
- Function buttons:
1 x Clone button
1 x Power switch
- Bootable
- Dimensions (LxWxH): approx. 72 x 79 x 18 mm
- Hot Plug, Plug and Play
Power Supply Specification
- Plug-in power supply
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
- Output: 5.0 V / 3.0 A
System Requirements
- Android 10.0 or higher
- Chrome OS 83.0 or higher
- iPad Pro (2018)
- Linux Kernel 5.4 or higher
- Mac OS 10.15.6 or higher
- Windows 8.1/8.1-64/10/10-64/11
- Device with a free USB Type-C™ port or a free Thunderbolt™ 3 port
Package Contents
- M.2 Docking Station
- USB-C™ to USB-C™ cable, length approx. 45 cm
- USB-C™ to USB Type-A cable, length approx. 80 cm (power supply)
- External power supply
- User manual
Packaging
- Retail Box.
Delock M.2 docking station for 2 x M.2 SATA SSD with clone function

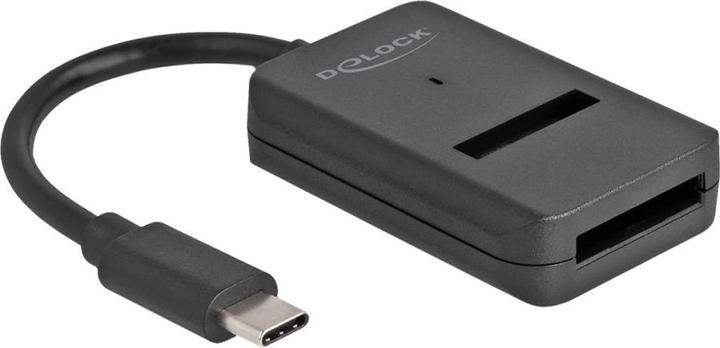

This Delock converter allows the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD and can be connected to a PC or laptop via USB.
Combo Converter
The major advantage of this Delock M.2 converter is that both SATA and PCIe (NVMe) M.2 SSDs can be used with it. The storage is automatically recognized by the chipset and can then be utilized.
Ideal Testing Equipment
The M.2 SSD is simply inserted into the slot and connected to the device via a USB-C connector. Therefore, the converter is excellent for use as testing equipment.
Specifications
- Connections:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C connector
1 x 67 Pin M.2 Key M slot
- Chipset: Realtek RTL9210B
- Supports M.2 modules with Key M or Key B+M based on SATA or PCIe (NVMe)
- Supports NVM Express (NVMe)
- Data transfer rate up to 10 Gbps
- LED indicators for power and access
- Bootable
- Plug & Play
- Cable length without connectors: approx. 10 cm
System Requirements
- Android 11.0 or higher
- Chrome OS
- Linux Kernel 5.13 or higher
- Mac OS 12.3.1 or higher
- Windows 8.1/8.1-64/10/10-64/11
- iPad Air (4th generation) or higher
- iPad Pro (3rd generation) or higher
- PC or laptop with a free USB Type-C or Thunderbolt 3 port
Package Contents
- M.2 Converter
- User manual.
This handy box from Delock is suitable for storing and transporting a 3.5-inch HDD. The hard drive is protected from damage and remains free from dirt and dust.
Delock Protective box for 3.5" HDD
