Delock Combo converter

This Delock converter allows for the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD and can be connected to a PC or notebook via USB.

The major advantage of this Delock M.2 converter is that it can accommodate both SATA and PCIe (NVMe) M.2 SSDs. The storage is automatically recognized by the chipset and can then be used.

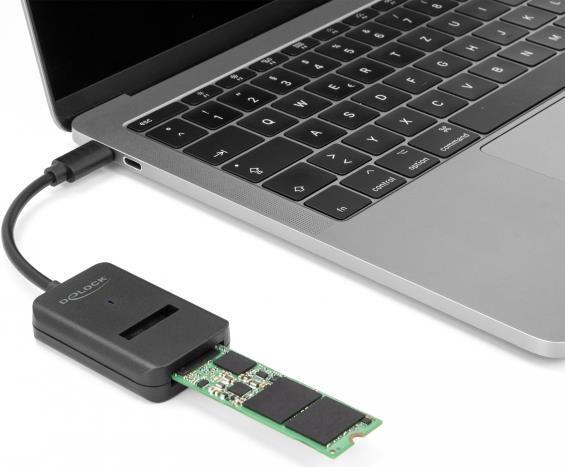

The M.2 SSD is simply inserted into the slot and connected to the device via a USB-C connector. Therefore, the converter is excellent for use as testing equipment.

Specifications

• Connections:

1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C connector
1 x 67 Pin M.2 Key M slot

• Chipset: Realtek RTL9210B
• Supports M.2 modules with Key M or Key B+M based on SATA or PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicators for power and access
• Bootable
• Plug & Play
• Cable length without connectors: approx. 10 cm

System Requirements

• Android 11.0 or higher
• Chrome OS
• Linux Kernel 5.13 or higher
• Mac OS 12.3.1 or higher
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th generation) or higher
• iPad Pro (3rd generation) or higher
• PC or notebook with a free USB Type-C or Thunderbolt 3 port

Package Contents

• M.2 converter
• User manual.
