Best selling Resistors from Dehn
On this page you'll find a ranking of the best Dehn products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

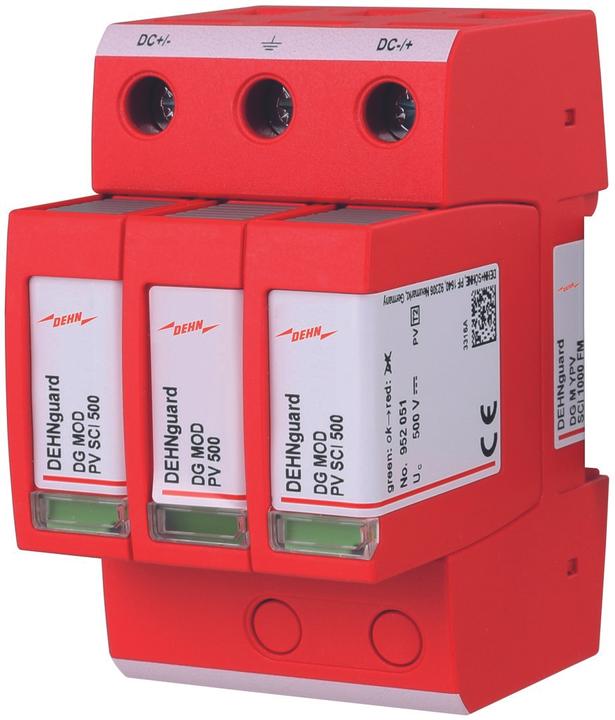

1. Dehn Type 2 DC PV SPD 1000v +rem
Suppressor type: Arrester type 2
Operating voltage max.: 1000 V
Mounting type: DIN rail
Peak current max.: 25 kA
Series: DG
Length: 54 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 54 x 66 x 90 mm
Operating temperature min.: -40°C
Operating temperature max.: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.

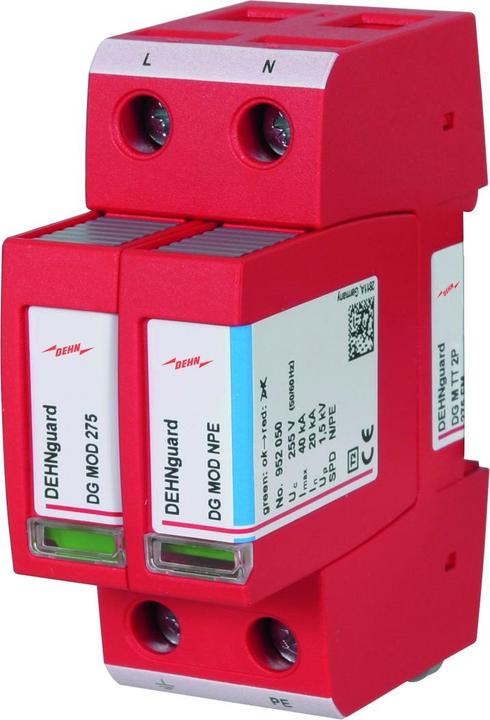

2. Dehn Surge Arrester TT SPD Type 2 SPN +Alarm
Suppressor type: Arrester type 2
Operating voltage max: 275 V AC
Mounting type: DIN rail
Peak current max: 40 kA
Series: DG
Length: 36 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 36 x 66 x 90 mm
Operating temperature min: -40°C
Operating temperature max: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.

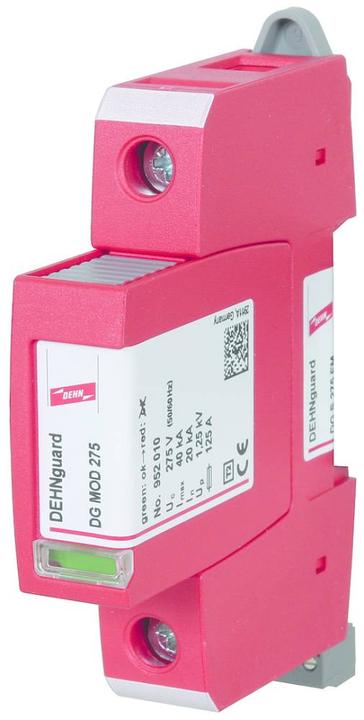

3. Dehn Surge arrester 1pole SPD Type 2
Suppressor type: Arrester type 2
Operating voltage max: 275 V ac, 350 V dc
Mounting type: Plug-in connection
Peak current max: 40 kA
Series: DG
Length: 90 mm
Depth: 18 mm
Height: 66 mm
Dimensions: 90 x 18 x 66 mm
Operating temperature min: -40°C
Operating temperature max: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.
4. Dehn Surge Arrester TT SPD Type 2 SPN
Surge protection type: Arrester Type 2
Maximum operating voltage: 275 V AC
Mounting type: DIN rail
Maximum discharge current: 40 kA
Series: DG
Length: 36 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 36 x 66 x 90 mm
Minimum operating temperature: -40 °C
Maximum operating temperature: +80 °C
Modular surge arrester DEHNguard Type 2, delivered as a pre-assembled base with plug-in modules. Energetically coordinated with other Dehn Redline products according to BS 7671 Amendment 1. High discharge capacity thanks to robust metal oxide varistors and spark gaps. Status indicator with Thermo Dynamic Control for monitoring the surge protection. Tool-free replacement of connectors for repair and testing.
5. Dehn Surge Arrester TN SPD Type 2 SPN +Alarm
Suppressor type: Arrester type 2
Operating voltage max: 275 V AC
Mounting type: DIN rail
Peak current max: 40 kA
Series: DG
Length: 36 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 36 x 66 x 90 mm
Operating temperature min: -40°C
Operating temperature max: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.

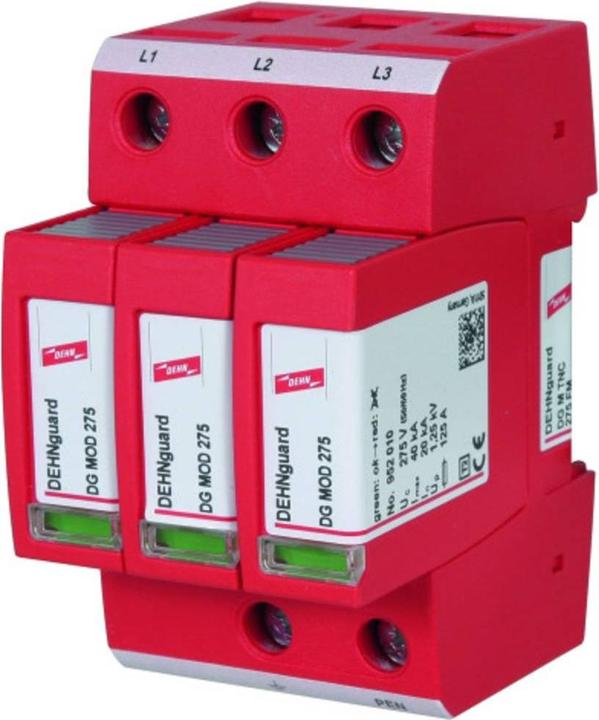

6. Dehn Type 2 230/400V SPD for 3 pole TNC/S
Surge protection type: Discharger Type 2
Maximum operating voltage: 275 V
Mounting type: DIN rail
Maximum surge current: 40 kA
Series: DG
Length: 54 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 54 x 66 x 90 mm
Minimum operating temperature: -40°C
Maximum operating temperature: +80°C
Modular surge arresters DEHNguard Type 2, delivered as a pre-assembled base with plug-in modules. Energetically coordinated with other Dehn Redline products according to BS 7671 Amendment 1. High discharge capacity thanks to robust metal oxide varistors and spark gaps. Status indication with Thermo Dynamic Control for monitoring the surge protection. Tool-free replacement of connectors for repair and testing.
7. Dehn Modular combined lightning current and surge arrester
Space-saving, modular combination terminal with a width of 6 mm and push-in connection technology, featuring a status indicator for the protection of 2 individual conductors with a common reference potential, as well as asymmetrical interfaces. Includes signal separation for maintenance purposes.
8. Dehn Type 2 230/400V SPD 3 pole TNC/S+rem
Suppressor type: Arrester type 2
Operating voltage max.: 275 V
Mounting type: DIN rail
Peak current max.: 40 kA
Series: DG
Length: 54 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 54 x 66 x 90 mm
Operating temperature min.: -40°C
Operating temperature max.: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.

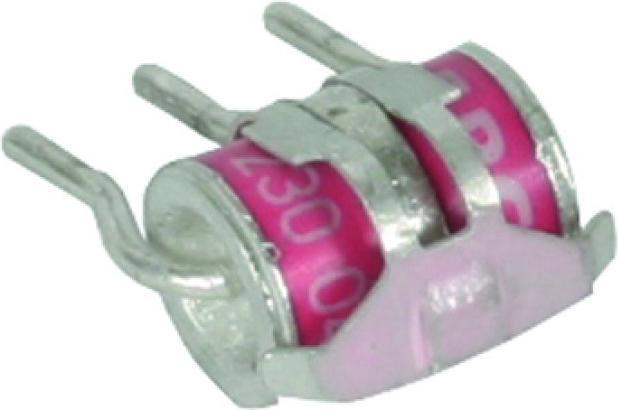

9. Dehn Gas discharge tube 230V for DEHNrapid 907217
The gas discharge arrester 230V for DEHNrapid 907217 by Dehn is a highly advanced protection device specifically designed for use in surge protection systems. With a rated power of 230 volt-amperes, this three-pole arrester provides effective protection both between the conductors and between conductor and ground. The common arc chamber ensures a uniform protection level, enhancing the safety and reliability of the electrical installation. The gas discharge arrester is an essential accessory for information and control technology, ensuring robust performance in critical applications. Manufactured in Germany, this product meets high quality standards and is suitable for long-term use in demanding environments.
- Three-pole design with common arc chamber
- Effective protection for both conductor-conductor and conductor-ground
- Suitable for surge protection in information and control technology.
10. Dehn Surge arrester 1pole SPD Type 2 +Alarm
Suppressor type: Arrester type 2
Operating voltage max: 275 V ac, 350 V dc
Mounting type: Plug-in connection
Peak current max: 40 kA
Series: DG
Length: 90 mm
Depth: 18 mm
Height: 66 mm
Dimensions: 90 x 18 x 66 mm
Operating temperature min: -40°C
Operating temperature max: +80°C
Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.
