Dehn Surge Arrester TT SPD Type 2 SPN
Delivered between Thu, 9.4. and Tue, 14.4.
Only 2 pieces in stock at supplier
Only 2 pieces in stock at supplier
free shipping
Product details
Surge protection type: Arrester Type 2
Maximum operating voltage: 275 V AC
Mounting type: DIN rail
Maximum surge current: 40 kA
Series: DG
Length: 36 mm
Depth: 66 mm
Height: 90 mm

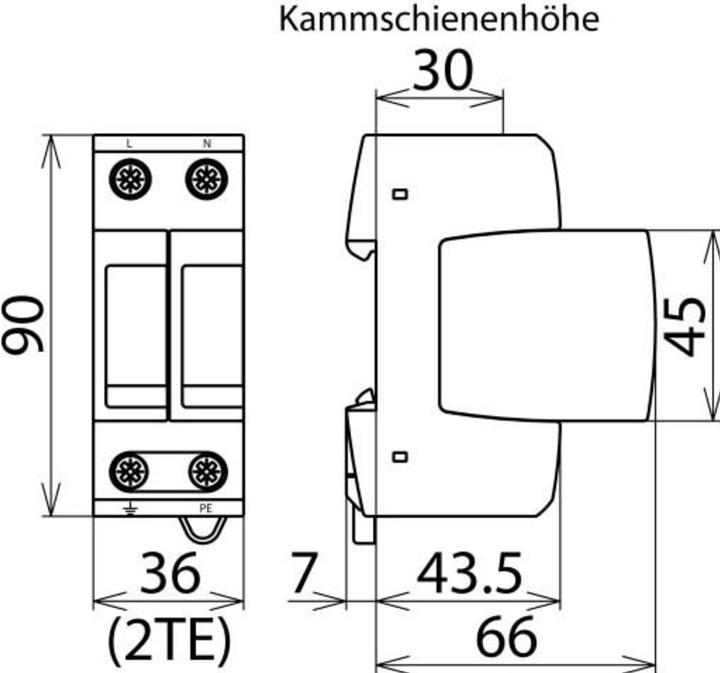

Dimensions: 36 x 66 x 90 mm
Minimum operating temperature: -40 °C
Maximum operating temperature: +80 °C

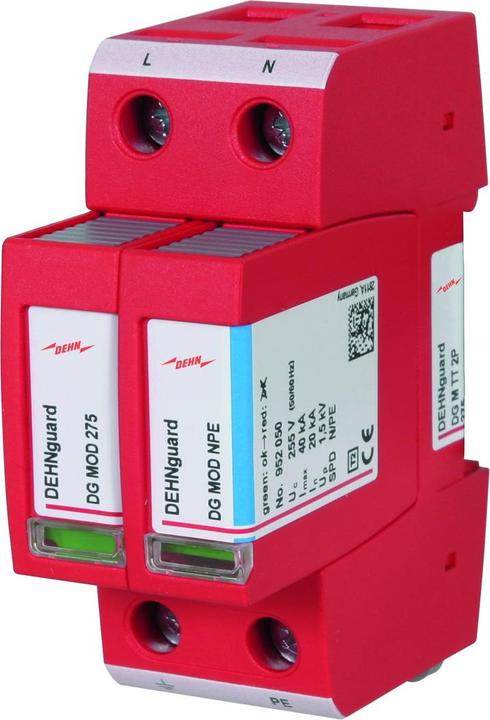

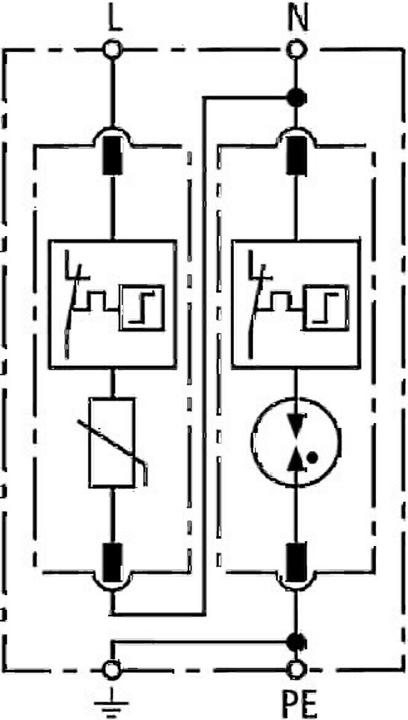

Modular surge arresters DEHNguard Type 2, delivered as a pre-assembled base with plug-in modules. Energetically coordinated with other Dehn Redline products according to BS 7671 Amendment 1. High discharge capacity thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring surge protection. Tool-free replacement of connectors for repair and testing.
Items per sales unit | 1x |
Item number | 9950237 |
Manufacturer | Dehn |
Category | Resistor |
Manufacturer no. | DG M TT 2P 275 |
Release date | 22.10.2018 |
Resistor type | Resistor network |
Country of origin | China |
CO₂ emissions | 31.32 kg |
Climate contribution | CHF 0.75 |
Items per sales unit | 1x |
Height | 0.09 m |
Width | 0.04 m |
Length | 0.07 m |
Length | 10 cm |
Width | 7.50 cm |
Height | 4 cm |
Weight | 248 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
1 additional offer
