Best Stahl products in the Relays category
On this page you'll find a ranking of the best Stahl products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

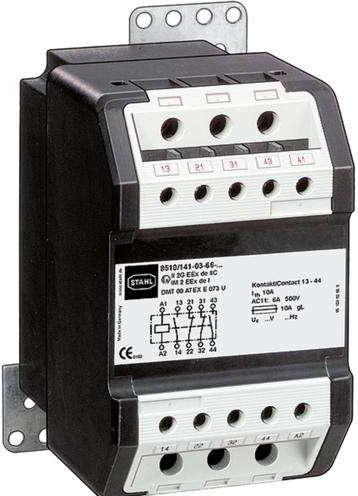

1. Stahl Auxiliary contactor 24 V DC
STAHL 145751 Auxiliary contactor 8510/141-03.

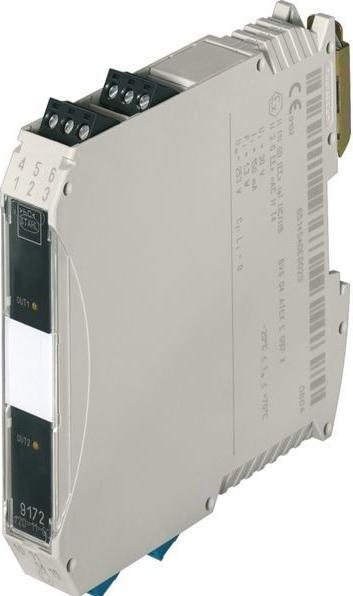

2. Stahl 9172/20-11-00k
The Ex i Relay Module 9172/20-11-00k from Stahl is an explosion-proof relay specifically designed for use in hazardous environments. It offers reliable control in field circuits and is suitable for use in Zone 2. With two channels and a spring-loaded terminal for connection type, it allows for easy installation and handling. The module is designed for temperatures ranging from -20 °C to +70 °C and meets safety requirements according to SIL 2. It is designed for both gas and dust explosion protection, making it an ideal choice for industrial applications where safety and reliability are of utmost importance.
- Two channels, each with a changeover output
- Suitable for use in Zone 2
- Temperature range from -20 °C to +70 °C
- Meets SIL 2 safety requirements.

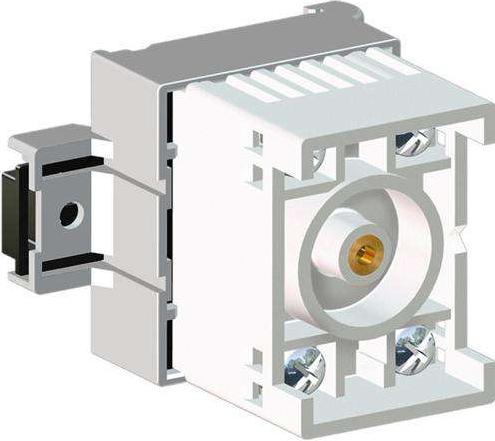

3. Stahl 140672 Control unit with relay 230V AC (closer)
The STAHL 140672 control unit is a highly advanced auxiliary relay designed for use in explosive environments. With a rated operating voltage of 230 V AC and a frequency of 50 Hz, this device offers reliable switching performance of up to 5A at 250V AC1. The polyamide housing ensures high resistance to environmental influences, while the gas explosion protection class II 2 G Ex db eb IIC Gb provides additional safety. The control unit is suitable for operation in zones 1 and 2 and can be used in a temperature range of -40 °C to +60 °C. With a single normally open relay, it is ideal for applications that require precise control.
- Explosion-proof according to II 2 G Ex db eb IIC Gb
- Temperature resistant from -40 °C to +60 °C
- Housing material made of robust polyamide
- Switching capacity of 5A at 250V AC1
- Suitable for use in zones 1 and 2.

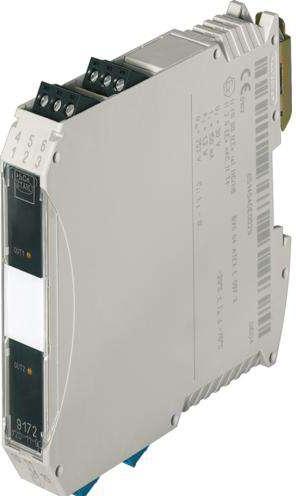

4. Stahl 9172/20-11-00s
The monitoring relay 9172/20-11-00s from Stahl is an explosion-protected relay module specifically designed for use in hazardous areas. It provides reliable monitoring and control of electrical signals in explosive environments. With two channels and a robust design, this relay is suitable for use in Zone 2 and meets the requirements for gas and dust explosion protection. The connection type is via screw terminals, allowing for easy installation. The relay operates with an input voltage of 24 volts and can provide an output voltage of up to 250 volts, with each channel equipped with a changeover contact. The operating temperature ranges from -20 °C to +70 °C, ensuring high flexibility in various environments. This product is ideal for applications where safety and reliability are of utmost importance.
- Two channels for flexible applications
- Suitable for use in Zone 2 for explosive environments
- Robust design with screw terminal connection
- SIL 2 certification for enhanced safety
- Gas and dust explosion protection according to II (1) G and II (1) D standards.

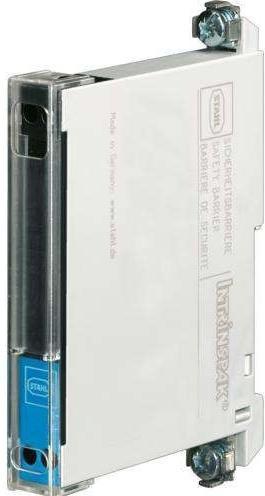

5. Stahl Safety barrier 158418
Stahl safety barriers 9001/01-086-150-101
Manufacturer: Stahl
Designation: Safety barriers single-channel
Type: 9001/01-086-150-101
Type of power supply: Passive
Rated supply voltage at AC: 0 V
Rated operating frequency: 0 Hz
Rated supply voltage at DC: 0 V
Switching voltage: 0 V
Switching current: 0 A
Switching capacity: 0 VA
Switching frequency: 0 Hz
Number of channels: 1
Fault signalling output: No
Intrinsically safe to EN 60947-5-6 NAMUR: No
Galvanic isolation between inputs: No
Galvanic isolation between input and output: No
Galvanic isolation between output to output: No
Galvanic isolation between supply voltage and all other circuits: No
Suitable for safety functions: No
SIL to IEC 61508: None
Performance level to EN ISO 13849-1: None
Width: 12 mm
Height: 103 mm
Input voltage tolerance: 0 %
Power consumption: 0 W
Operating temperature: -20 to 60 °C
Device design: Built-in device
Electrical connection design: Screw connection
Mounting type: Snap-on mounting
Mounting rail depth: 72 mm
Protection class (IP): IP20
Further details: The single-channel INTRINSPAK safety barriers of the 9001 series enable the intrinsically safe operation of almost all field devices. The extensive portfolio and the combination of safety barriers cover a wide range of signals. The devices are characterised by high robustness and low space requirements. A convenient feature is the standardised back-up fuse for all variants.
Single-channel safety barriers, explosion-proof, type: 9001/01-086-150-101, max. voltage Uo: 8.6 V. Voltage Uo: 8.6 V, Max. Current Io: 150 mA, Max. Power Po: 322.5 mW, Number of channels: 1, Potential: Positive potential, Application area (zones): 2, Gas explosion protection: II 3 (1) G Ex nA [ia Ga], Dust explosion protection: II (1) D [Ex ia Da] IIIC, Rated operating voltage DC: 6 V, Maximum output current Imax: 82 mA. EAN: 4046827025204.
6. Stahl 9172/21-11-00s
The installation relay 9172/21-11-00s from Stahl is an explosion-proof relay module specifically designed for use in hazardous areas. It provides a reliable solution for controlling non-explosive signals in explosive environments. With two channels, it allows for flexible applications in various industrial scenarios. The relay is designed for use in Zone 2 and meets the requirements for gas and dust explosion protection. Its robust construction and high temperature resistance make it ideal for demanding environments. Connection is made via screw terminals, ensuring easy installation and maintenance. This product is an excellent choice for applications that require the highest safety standards.
- Two channels for flexible applications
- Suitable for Zone 2 with gas and dust explosion protection
- Operating temperature range of -20 °C to +70 °C
- Easy installation via screw terminal connection.
