Best Finder products in the Relays category
On this page you'll find a ranking of the best Finder products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Finder Interposing relay
Coil voltage = 230V ac. Contact arrangement = 1-pole normally open contact. Switching current = 12 A. Connection type = Screw. Series = 13 Series. Switching voltage AC max. = 400V ac. Application type = Intermediate switching lighting circuit. Length = 37mm. Depth = 22.7mm. Height = 39mm. Dimensions = 37 x 22.7 x 39mm. Lifetime = 70000 cycles (electrical). Series 13.31 - electromechanical monostable relays. Interposing monostable relay series 13.31, switch box 1-pole mounted. Can be mounted behind blanking plates, as is common practice in residential wiring 1 NO contact (SPST-NO) For mounting in residential switch boxes Cadmium-free contact material.
2. Finder Modular contactor 2NO 25A 12V ac/dc
The Modular Contactors 2NO 25A 12V AC/DC from Finder is a reliable installation relay designed for mounting on a 35 mm rail. With two normally open contacts and a maximum switching capacity of 6250 VA at 230 V AC, this product is ideal for various applications in electrical engineering. The contact material made of silver-tin oxide (AgSnO2) ensures a long lifespan and reliability. The coil operates with an input voltage of 12 V AC/DC and offers a wide range of switching options for different loads, including motors, incandescent and halogen lamps, as well as LED lights. Its compact design, with a width of 17.5 mm, and the integrated LED indicator for switching position make installation and monitoring simple and efficient. With an IP 20 protection rating, the device is suitable for use in dry indoor environments.
- Maximum switching capacity of 6250 VA at 230 V AC
- Contact material made of AgSnO2 for high reliability
- Suitable for motor loads up to 1 kW
- Integrated LED indicator for switching position
- Compact design with a width of 17.5 mm.
3. Finder Interfacerelais
SEV, VDE, CSA, UL-recognised component for Canada and USA, GOST, IMQ, RINA. Miniature relays for PCB mounting 8-10-12-16 A. A selection of miniature relays for PCB mounting from Finder. Features and benefits. 8 mm, 6 kV insulation coil/contact. Flux resistant: RT II. Dimensions (HxWxD): 25 x 29 x 12.4 mm. Information on product application. Medicine and dentistry. Control panels. Panels for power distribution. Toys. Automation for blinds, grilles and shutters. Door and gate openers. Electronic circuit boards. Vending machines.
4. Finder Time relay multifunction type 80.01
Supply voltage: 12 to 240 Vac/dc
Time range: 0.1 to 20 min, 0.1 to 20 s, 0.1 to 24 h
Mounting type: DIN rail
Number of time functions: Multifunction
Number of contacts: 1
Series: 80 Series
Time period: Hours, minutes, seconds
Power supply: External
Contact arrangement: 1-pole changeover switch
Current max: 16 A
Connection type: Screw mounting
Voltage min: 250 Vac
Voltage max: 400 Vac
Width: 17.5 mm
Series 80 offers multipurpose functions and multiple voltages. Functions include:
- AI: Timing at switch on
- BE: Timing at pause with control signal
- CE: Timing at switch on and off with control signal
- DE: Interval with control signal
- DI: Interval
- SW: Blinker with symmetrical cycle
Contact material: AgCdO
Width: 17.5 mm
Features six time scales from 0.1 s to 24 hrs, high insulation between input and output, screw terminal, and IP20 protection.
5. Finder Time relay Multifunctional 230
This module is a combination of a conventional 4 x UM relay and a time relay. Additionally, it allows for the setting of 7 time ranges. Compatible accessories: Screw base for DIN rail, item no. 50 30 28/type 94.04 and item no. 50 34 00/type 94.84.3.

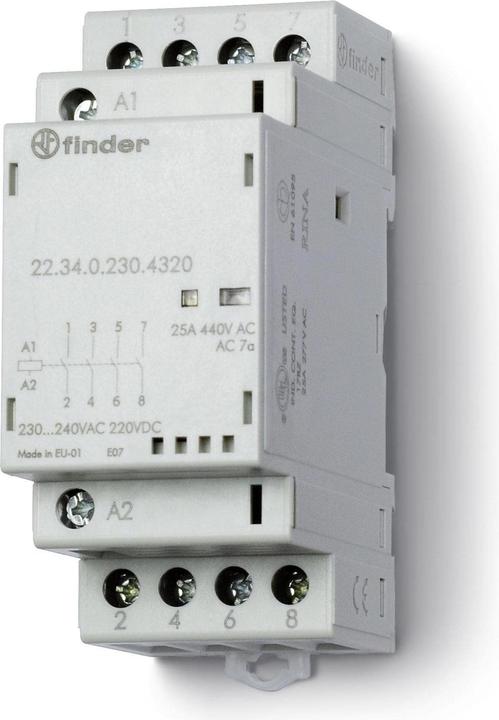

6. Finder Contactors Series 22 4x 25A Installation
The Finder installation relay 22.34.0.230.4320 is a reliable and powerful device designed for controlling electrical loads in various applications. With a rated operating voltage of 250 to 440 V and a rated operating current of 25 A, this relay is ideal for use in industrial and commercial environments. The LED display allows for easy monitoring of the operating status. The relay is suitable for mounting on a 35 mm rail and offers four normally open contacts, providing high flexibility in controlling electrical devices. The protection class IP20 ensures adequate protection against contact, while the noise-free operation minimizes the sound level during use. The Finder installation relay is an excellent choice for anyone seeking a reliable and efficient solution for their electrical control needs.
- Maximum switching capacity at 230 V AC: AC1 6250 VA, AC15 1800 VA
- Suitable for 3-phase motor loads up to 4 kW at 400-440 V AC
- Contact material made of AgSnO2 for improved durability
- Input voltage of 230 V AC/DC for versatile applications
- Additional devices are possible to expand functionality.
7. Finder Contactors Series 22 2S, 25A 12 V
The Finder Series 22 2S relay is a reliable installation relay specifically designed for mounting on a 35 mm rail. With two contacts, each rated for a current of up to 25 A at 250 V AC, this product offers high switching performance for various applications. The maximum switching capacity at 230 V AC is up to 6250 VA for AC1 and 1800 VA for AC15. The relay is optimized for use with different lamp loads, including incandescent and halogen lamps as well as energy-saving compact fluorescent lamps. The integrated LED indicator and mechanical switching position indicator allow for easy monitoring of the operating status. With an input voltage of 12 V AC/DC and reinforced insulation between the coil and contacts, the relay ensures safe and efficient control of electrical loads.
- Mechanical indicator and LED for status monitoring
- Internal wiring for AC/DC control
- Reinforced insulation between coil and contacts
- Suitable for high inrush currents up to 120 A
- Optimized for lamp loads and various light sources.
8. Finder Contactor
Finder contactor 22.32.0.230.4420
Manufacturer: Finder
Designation: Contactor 2NC, 25A
Type: 22.32.0.230.4420
Rated operating voltage: 250...440 V
Rated operating current: 25 A
Utilisation category: 1
Rated operating voltage: 230 V
Operating voltage type: AC
Operating voltage type: AC/DC
Number of contacts as NC contacts: 2
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load: 800 VA
Max. fluorescent lamp load (duo circuit): 800 VA
Max. fluorescent lamp load (parallel compensated): 500 VA
Slider for manual switching: No
Width in pitch units: 1
Installation depth: 60.8 mm
Additional equipment possible: Yes
Protection class (IP): IP20
Further details: Installation contactor for 35 mm rail, 2 NC contacts for 25 A / 250 V AC, contact material AgSnO², max. switching capacity at 230 V AC: AC. Switching capacities at 230 V AC: AC1 6250 VA, AC15 1800 VA, 1-phase motor load, AC3 (230 V AC) 1 kW, rated current AC AC-7c 10 A, incandescent and halogen lamps 2000 W, compact fluorescent lamp (energy-saving lamp) 200 W, fluorescent lamp with electronic ballast 800 W, fluorescent lamp with electronic ballast 500 W, LED (230 V AC) 200 W, LV halogen lamps or LED with electronic ballast 200 W, LV halogen lamps or LED with electronic ballast 800 W. Coil: 230 V AC/DC, width 17.5 mm, with LED and mechanical switch position indicator, relay protection class: IP 20.
9. Finder Electronic step relay 16A 1 NO, 230vac
Coil voltage: 230V AC
Contact arrangement: 1 pole normally open
Switching current: 16 A
Connection type: Screw
Series: 13 Series
Application type: High inrush current/latching
Length: 17.5 mm
Depth: 60.8 mm
Height: 88.8 mm
Dimensions: 17.5 x 60.8 x 84 mm
Switching capacity AC max: 3.7 kVA
Series 13.81 - electronic impulse relays. Finder 13.81 series electronic impulse relays are rail mounted with 1 pole. They are suitable for use with 3 or 4-wire connections, featuring automatic detection by the relay. The control input can be applied continuously, providing a longer mechanical and electrical life and quieter operation compared to electromechanical impulse relays. They allow load switching at zero crossing and are designed for 35 mm rail mounting with cadmium-free contact material and screw terminals.
10. Finder Modular contactor 1NO+1NC 25A 230V ac/dc
Coil voltage: 240V AC
Contact arrangement: 1 pole changeover
Mounting type: DIN rails
Connection type: screw
Coil resistance: 4.2 kΩ
Switching voltage AC max: 440V
Application type: Power
Length: 17.5mm
Depth: 60.8mm
Height: 84mm
Dimensions: 60.8 x 17.5 x 84mm
Operating temperature max: +50°C
22 series - modular monostable relays. 25A modular contactors, 2/4 pole available. Continuous operation for coil and contactors AC/DC quiescent coil (with varistor protection). Mechanical and LED indicators as standard. Protective separation (reinforced insulation) between coil and contacts. Mounting on 35mm rail (EN 60715). According to EN 6109:2009.
