Best selling PoE injectors from Allnet
This page always stays fresh and updates automatically.
1. Allnet ALL95100 PoE Surge Protector
Short info: ALLNET ALL95100 - PoE surge protector. Manufacturer: ALLNET. Product No: 99305. Model: ALL95100. EAN/UPC: 4038816001504.
Product Description: ALLNET ALL95100 - PoE surge protector. Device Type: PoE surge protector - external. Weight: 200 g. Input Connectors: RJ-45. Dimensions (Width x Depth x Height): 8.2 cm x 2.5 cm x 2.5 cm.
Detailed Details: General Type: PoE surge protector - external. Power Supply Input Connectors: RJ-45. Data Line Surge Protector: Ethernet 10/100/1000Base-T - RJ-45. Surge Protection: Yes. Peak Current: 10000 A.
Miscellaneous: Marking: Plug and Play, RoHS, ICE 61000-4-2.
Environmental Conditions: Min Operating Temperature: -15 °C. Max Operating Temperature: 40 °C. Allowable Humidity: 40 °C. Operating Temperature: 40 °C. Operating Humidity: 10 - 95% (non-condensing).
Dimensions and Weight: Width: 8.2 cm. Depth: 2.5 cm. Height: 2.5 cm. Weight: 200 g.

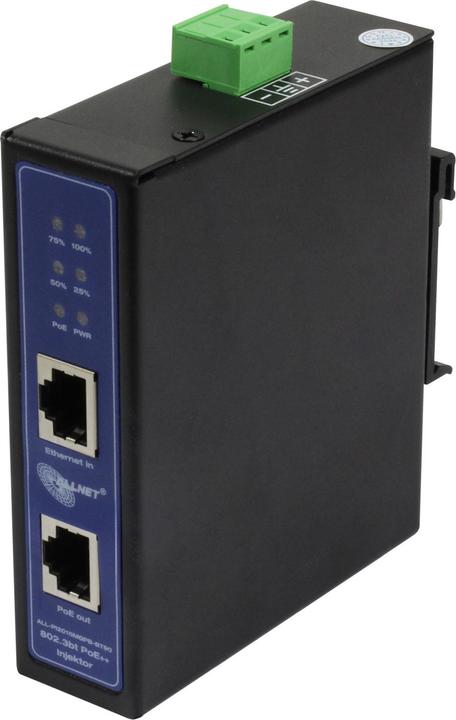

2. Allnet PoE Injector Industrial MultiGigabit - PoE BT with Power Booster (15.4W/30W/90W) - DIN - ALLN
Supports 1x10M/100M/1G/2.5G/5G/10GBase-T Ethernet data input RJ45 port, 1xDC12-57V input power connection, and 1x10M/100M/1G/2.5G/5G/10GBase-T PoE PSE output RJ45 port. Complies with the IEEE 802.3af/at/bt PoE/PoE+/PoE++ PSE standard. Supports PoE power up to 90 watts for PoE++ port. Automatic detection of IEEE 802.3af/at/bt PoE/PoE+/PoE++ end-span/mid-span compliant PD devices, protecting devices from damage due to incorrect installation. LED indicators monitor the status of overall PoE usage in real-time. Remote powering up to 100m. Supports 12-57VDC power input with integrated power booster. Slim IP30 metal housing. Robust design for DIN rail or wall mounting. Supports 6KV surge and ESD protection. Operating temperature from -40 to +80°C. Delivers PoE over all four pairs of a standard Cat cable. This can be done in either end-span (pins 1/2 and 3/6) or mid-span (pins 4/5 and 7/8) mode. At maximum power of 60 to 90 W, all wire pairs are required.
PoE injector
CHF177.–
Allnet PoE Injector Industrial MultiGigabit - PoE BT with Power Booster (15.4W/30W/90W) - DIN - ALLN
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++), 90 W

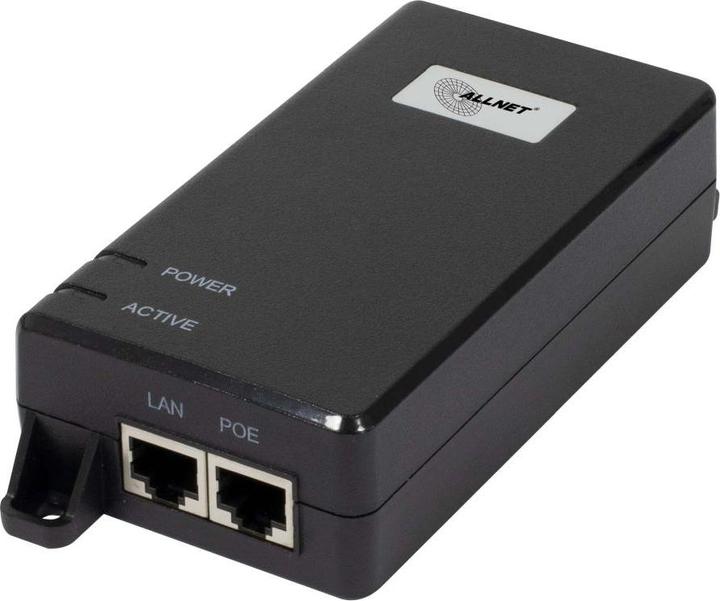

3. Allnet PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G
The ALLNET PoE Injector is a powerful and reliable solution for powering PoE-enabled devices. It supports the IEEE802.3af/at/bt standards and offers an impressive PoE output of up to 60 watts. With speeds of 10/100/1000/2500/5000 Mbps, it ensures stable and fast data transmission over distances of up to 100 meters. Installation is straightforward, as the injector can be operated in plug-and-play mode without the need for complex configuration. The compact plastic housing provides a space-saving solution without compromising durability. The injector is ideal for use in networks where a reliable power supply and high data transfer rates are required.
- Complies with IEEE802.3af/at/bt standards
- Supports speeds of up to 5 Gbps
- Maximum PoE output of 60W
- Plug-and-play installation without configuration
- Compact and robust plastic housing.
PoE injector
CHF58.90
Allnet PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++), 60 W

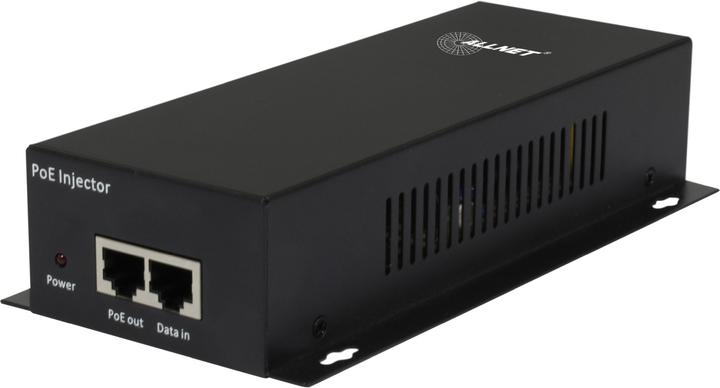

4. Allnet PoE injector MultiGigabit &bull PoE bt 90W &bull 1G/2.5G/5G/10G PoE & PoE bt (15.4W/30W/60W/9
The ALLNET PoE Injector ALL-PI103MG-BT90-10G is a highly advanced PoE injector that offers a maximum output power of 90 W per PoE port. It supports multigigabit speeds ranging from 1 G to 10 G, making it ideal for modern network environments. The injector is housed in a robust metal casing and features an IP20 protection rating, safeguarding it against dust and mechanical impacts. With a wide input voltage range of 100 to 240 VAC and an operating temperature range of -20 °C to +50 °C, it is suitable for various operating conditions. Additionally, the PoE injector is equipped with effective ESD surge protection, which protects connected devices from damage. It meets all relevant safety standards, including FCC, CE, and RoHS, ensuring high reliability and safety during operation. The flexible mounting options allow for easy installation on walls or tables, making it a practical solution for various applications such as PTZ cameras and digital signage.
- Supports 1 Multigigabit 10G PoE Port (1G/2.5G/5G/10G) + 1 10G (1G/2.5G/5G/10G LAN) RJ45 Port
- Supports IEEE802.3af (15.4 W), IEEE802.3at (30 W), and IEEE802.3bt (90 W)
- Input power supply support 100-240 VAC
- Metal casing, IP20 protection rating, operating temperature -20 to 50 °C
- Supports port surge protection: Differential mode 2 kV, Common Mode 6 kV ESD: Contact 6 kV, Air 8 kV.
PoE injector
−14%
CHF90.39 was CHF105.17
Allnet PoE injector MultiGigabit &bull PoE bt 90W &bull 1G/2.5G/5G/10G PoE & PoE bt (15.4W/30W/60W/9
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++), 90 W
5. Allnet Passive Injector Adapter Cable Set DC Hollow Plug Adapter 5.5 mm Straight Plug
The set consists of 2 cable harnesses with a socket for LAN/Ethernet cables, each featuring one DC barrel jack socket and one 5.5 mm / 2.1 mm plug. It supports passive PoE, not true PoE - the power source must be compatible with the device, and the device must have a barrel jack as the power input. Main features: 2 RJ-45 connections, male/female gender, product color white. Technical details: cable color white. Packaging information: quantity per pack 1.
PoE injector
Quantity discount
CHF10.30 per piece for 2 units
Allnet Passive Injector Adapter Cable Set DC Hollow Plug Adapter 5.5 mm Straight Plug
6. Allnet PoE Injector Gigabit & PoE+ 15.4W/30W 2.5 Gbit/Metal Housing
The ALL0489v4 2.5GBASE-T PoE+ Injector provides up to 30 watts of power and a 2.5 Gigabit data connection at any point in the network infrastructure. This device injects direct current over a CAT5e UTP cable, increasing flexibility in positioning a PoE-enabled device when a nearby power source is unavailable. It supports the PoE+ standard (802.3af 15.4W & 802.3at 30W) and provides up to 30W of power for connected PD devices. It can easily connect to high-power devices such as VoIP phones, access points, and IP cameras. The device is plug-and-play with no software configuration required. It supports an operating temperature range of 0 to 45 degrees Celsius and features a metal housing design that is better suited for various environmental applications. It provides a PoE LED status signal that indicates an easily recognizable PoE connection status. Overcurrent and short-circuit protection are also supported to ensure safety. Key features include connections and interfaces.
PoE injector
CHF46.70
Allnet PoE Injector Gigabit & PoE+ 15.4W/30W 2.5 Gbit/Metal Housing
802.3af (PoE), 802.3at (PoE+), 30 W
7. Allnet PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014
The ALLNET PoE Injector Industrial Gigabit, model "ALL-PI2014-I-BT90", is a powerful solution for powering PoE devices over Ethernet cables. With a maximum output of 90 watts, this active PoE injector supports the IEEE802.3af, IEEE802.3at, and LTPoE++ standards, making it ideal for use in demanding network environments. Designed for industrial applications, the injector offers a wide operating temperature range of -40°C to +75°C, making it suitable for various applications. The robust metal housing ensures durability and reliability, while the option for DIN rail and wall mounting allows for flexible installation. With two RJ45 ports for data and power, this injector is an efficient solution for optimizing your network infrastructure.
- Supports PoE power of up to 90W for demanding applications
- Provides comprehensive LED indicators for PoE diagnostics
- Input voltage of 48~57VDC with redundant power supply
- Compatible with 10/100/1000Base-TX for high network speeds
- Suitable for industrial applications with a wide temperature range of -40°C to +75°C.
PoE injector
CHF128.–
Allnet PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++), 90 W
8. Allnet ALL048900V2 Gigabit Ethernet
Power over Ethernet (PoE) is a technology that allows network-capable devices to be powered with electricity as well as data through the network cable. This eliminates the need for a power supply at the device and enables installation in locations where there is no power outlet available. This results in significant savings potential for installation and operating costs. The ALLNET LT PoE products support the IEEE802.3af standard with a power output of 15.4 watts, the IEEE802.3at High Power standard with 30 watts, and the LT PoE standard with 90 watts of power. Active PoE devices are automatically detected by the ALLNET product series and supplied with power according to their individual requirements. By combining switches/injectors, repeaters, and splitters, distances of over 500 meters are possible. Additionally, non-PoE devices at the end of the line can be powered with up to 25 V. Standard CAT6 cables can be used.
9. Allnet PoE Injector Gigabit PoE & PoE+ (15.4W/30W) ALL0488v6
The ALLNET PoE Injector Gigabit PoE & PoE+ (15.4W/30W) ALL0488v6 is a powerful solution for powering PoE-enabled devices via Ethernet cables. With a maximum output of 30 watts, this injector allows for the easy installation of devices such as Wi-Fi access points and VoIP phones in optimal locations without the need for a separate power supply. The injector supports the IEEE 802.3af and IEEE 802.3at standards, making it versatile for various applications. Its compact design and wall-mountable feature make it ideal for different environments. The ALL0488v6 is equipped with two RJ45 Gigabit ports, enabling data transfer speeds of up to 1000 Mbps. This makes it an efficient solution for network installations where both power and data need to be delivered over a single cable.
- Supports PoE standards IEEE 802.3af and IEEE 802.3at
- Maximum PoE output of 30 watts
- Two RJ45 Gigabit ports for high data transfer rates
- Compact design with wall-mountable capability
- Includes 1.5 m power cable for easy installation.
PoE injector
−14%
CHF24.15 was CHF27.95
Allnet PoE Injector Gigabit PoE & PoE+ (15.4W/30W) ALL0488v6
802.3af (PoE), 802.3at (PoE+), 30 W
