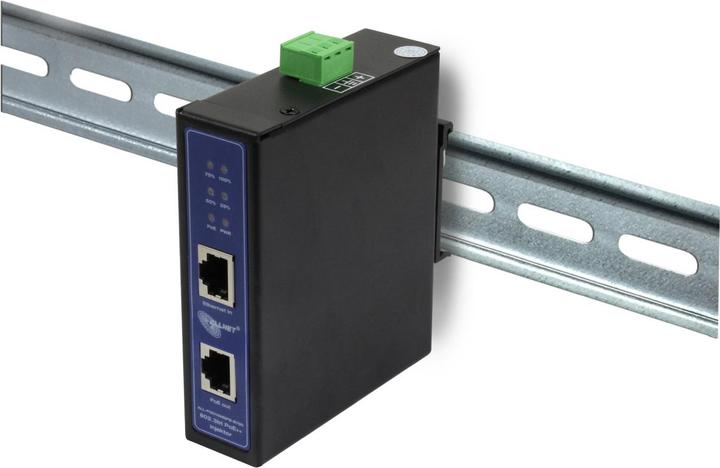

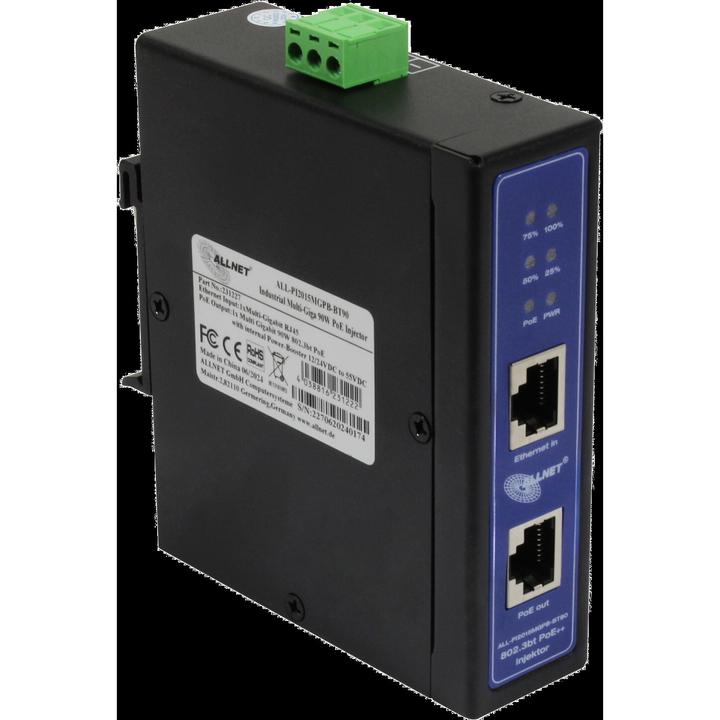

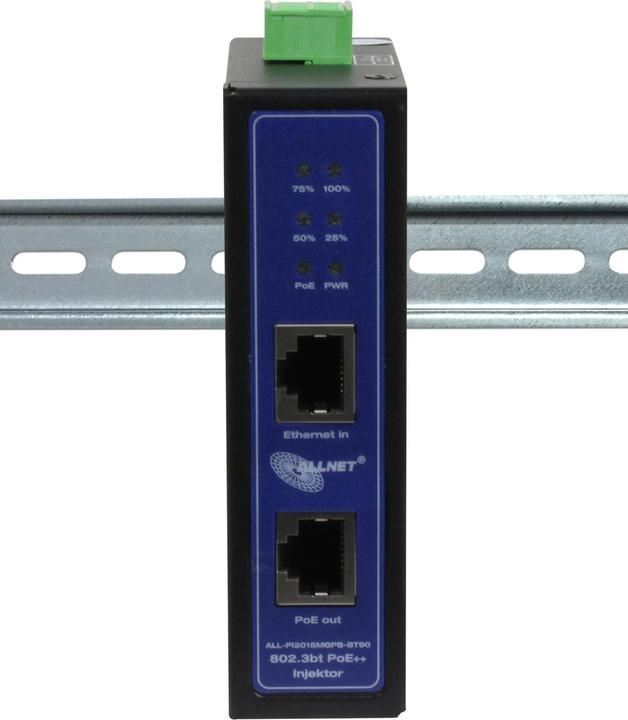

Allnet PoE Injector Industrial MultiGigabit - PoE BT with Power Booster (15.4W/30W/90W) - DIN - ALLN

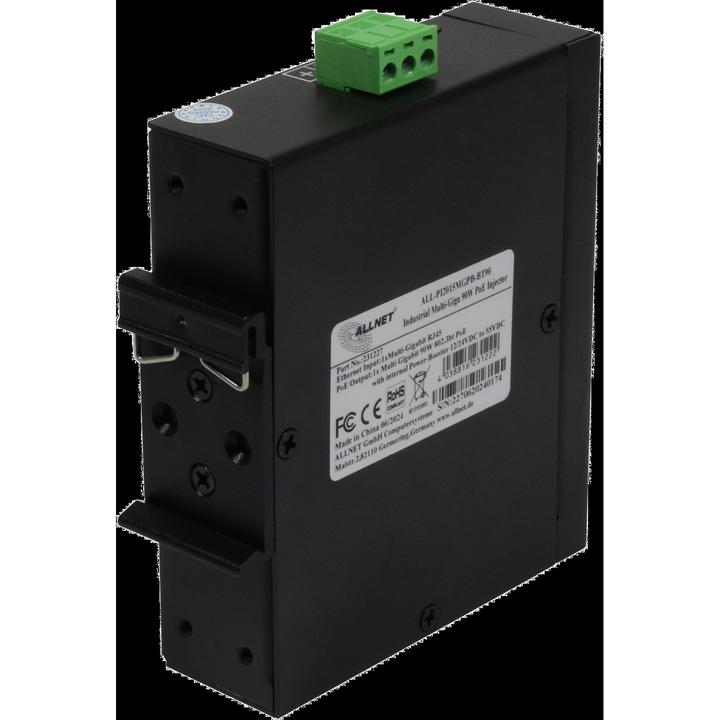

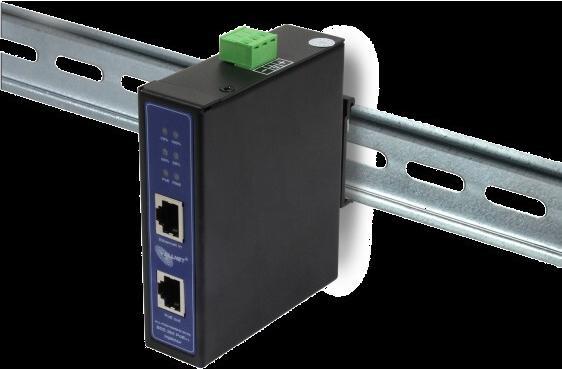

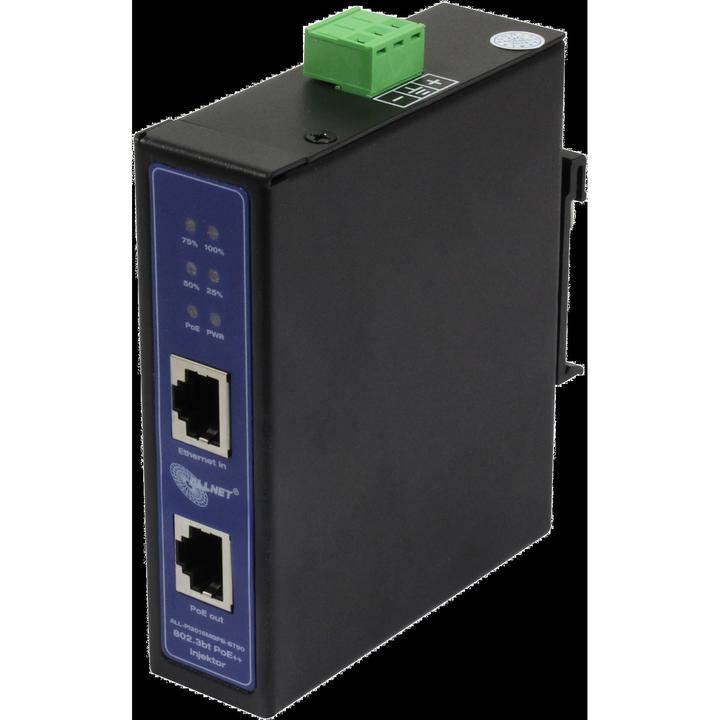

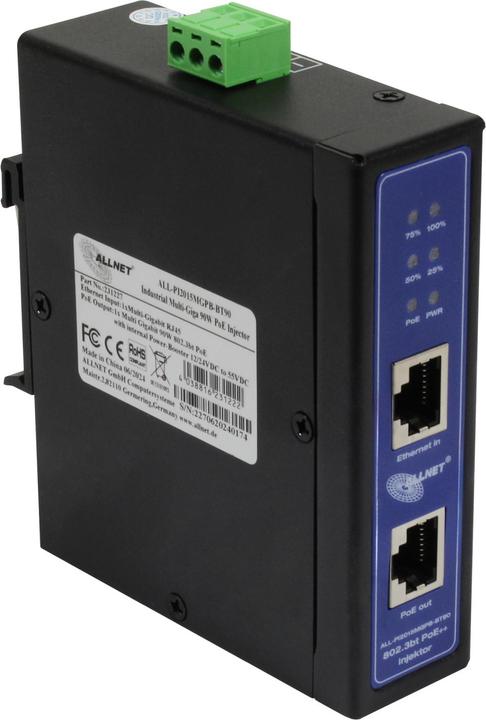

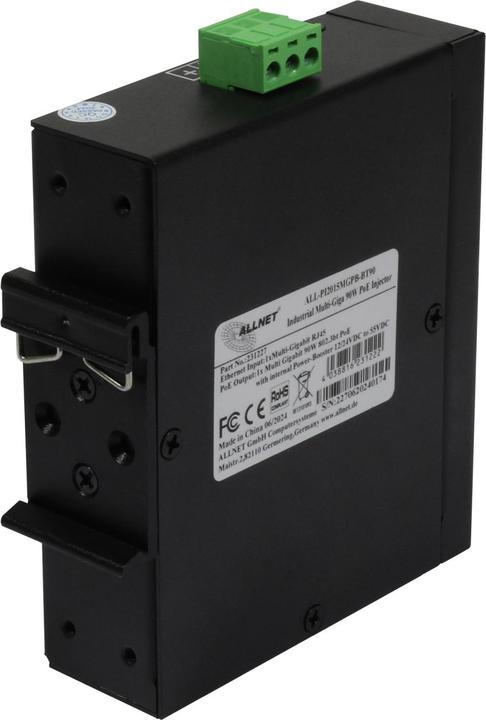

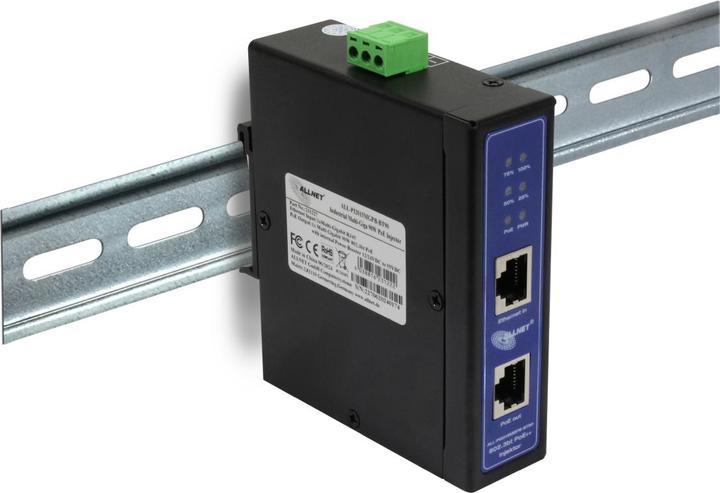

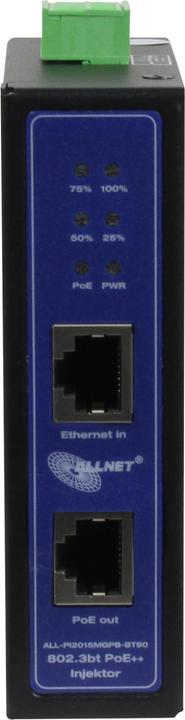

Supports 1x10M/100M/1G/2.5G/5G/10GBase-T Ethernet data input RJ45 port, 1xDC12-57V input power connection, and 1x10M/100M/1G/2.5G/5G/10GBase-T PoE PSE output RJ45 port. Complies with the IEEE 802.3af/at/bt PoE/PoE+/PoE++ PSE standard. Supports PoE power up to 90 watts for PoE++ port. Automatic detection of IEEE 802.3af/at/bt PoE/PoE+/PoE++ end-span/mid-span compliant PD devices, protecting devices from damage due to incorrect installation. LED indicators monitor the status of overall PoE usage in real-time. Remote powering up to 100m. Supports 12-57VDC power input with integrated power booster. Slim IP30 metal housing. Robust design for DIN rail or wall mounting. Supports 6KV surge and ESD protection. Operating temperature from -40 to +80°C. Delivers PoE over all four pairs of a standard Cat cable. This can be done in either end-span (pins 1/2 and 3/6) or mid-span (pins 4/5 and 7/8) mode. At maximum power of 60 to 90 W, all wire pairs are required.
