Best selling Network switches from Alfa Network
This page always stays fresh and updates automatically.
1. Alfa Network Alfa 5-Port Ethernet Switch AGS05-2.5GL

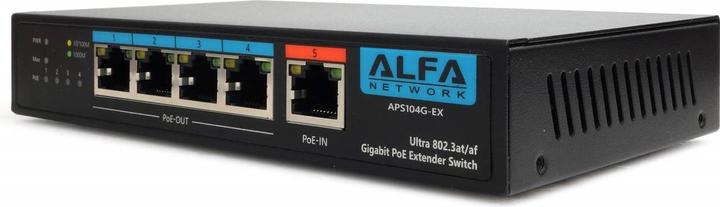

2. Alfa Network APS104G-EX - 60 W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch
APS104G-EX - 60 W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch
The APS104G-EX 4-Port 10/100/1000M 802.3at PoE switch seamlessly meets the demands of high-performance PoE network devices with fast Ethernet connectivity. With a power output of up to 30 W per port, the APS104G-EX supplies PoE-enabled devices over standard Cat. 5E/Cat. 6 cables. By providing power and data over Ethernet from a single device, the APS104G-EX not only simplifies cabling tasks but also extends remote power supply for PoE PD devices (IP cameras, wireless APs, or IP phones) up to a maximum distance of 100 meters.
The APS104G-EX is environmentally friendly and supports the latest energy-saving technologies, including the energy-efficient Ethernet mode (EEE; defined in IEEE 802.3az), to reduce the power consumption of the network system.
Standards
Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network Media: 10BASE-T: UTP cables of categories 3, 4, 5 (≤ 100 m); 100BASE-TX: UTP cables of category 5, 5e (≤ 100 m); 1000BASE-T: UTP cables of category 5e, 6 (≤ 100 m)
Energy Saving: IEEE 802.3az
MAC Address Table: 2K, Auto-Learning, Auto-Aging
Switch Architecture: Store-and-Forward
Switch Fabric: 10 Gbit/s
Flow Control: IEEE 802.3x Pause Frame for Full Duplex; Back Pressure for Half Duplex
Hardware Specifications
Ethernet Ports: 5x 10/100/1000 BASE-T RJ45 Auto-MDI/MDI-X ports
PoE PD Port (Power-In): Port 5, 802.3bt PoE End- and Mid-Span PD compatible, maximum 60 Watts input
PoE Injector (Power-Out): Ports 1 - 4 with 802.3at/af PoE, maximum 30/15.4 Watts output
LED: PWR (green), max. (orange), PoE (orange), 10/100 Mbit/s LNK/ACT (orange), 1000 Mbit/s LNK/ACT (green)
Power Requirements: 802.3bt PoE (optional: DC adapter)
Power over Ethernet
PoE Input Requirement: 802.3bt Ultra PoE
PoE Output Power 802.3af: maximum 15.4 Watts, 802.3at maximum 30.8 Watts
PoE Power Budget...
Network switches
CHF84.90
Alfa Network APS104G-EX - 60 W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch
5 ports

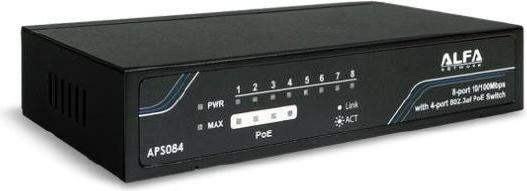

3. Alfa Network APS084 - Desktop Ethernet Switch, 8-Port 10/100 Mbps with 4-Port PoE
Alfa APS084 - Desktop Ethernet Switch, 8-Port 10/100 Mbps with 4-Port PoE
The APS084 is an 8-Port 10/100 Mbps switch with 4-Port PoE that seamlessly meets the demands of high-performance PoE network applications with a fast Ethernet connection. With an output power of up to 60 W, the APS084 powers PoE-enabled devices over Cat. 5E / Cat. 6 cables. Since it delivers both power and data over Ethernet, the APS084 simplifies cabling and extends power to PoE-PD devices (IP cameras, wireless APs, or IP phones) over a distance of up to 100 meters.
The APS084 is environmentally friendly and supports the latest energy-saving technologies, including Energy-Efficient Ethernet mode (EEE; defined in IEEE 802.3az), to reduce the power consumption of the network system. No configuration is necessary; the APS084 automatically detects and determines the required output power for connected devices.
Features:
- 8x 10/100 Mbps Auto-Negotiation RJ-45 ports with 4-Port 802.3af PoE
- Max. 15.4 W per port for 802.3af PD devices
- Max. budget of 60 W with PoE consumption LED
- IEEE 802.3x Flow Control and Backpressure support
- Store and forward, non-blocking wire-speed reception and transmission
- 8x 10/100 Mbps Auto-Negotiation RJ-45 ports with Auto-MDI/MDI-X support
- 2K MAC Address Auto-Learning and Auto-Aging
- Innovative, energy-efficient technology, IEEE 802.3az reduces power consumption at all times
- LED indicators for monitoring power, connection, activity, PoE, and PoE status
Compliance:
- Ethernet standards: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3x (Full-Duplex Flow Control), IEEE 802.3az (Efficient Ethernet)
- Power over Ethernet: 4-Port 802.3af PoE injector (Port 1 – Port 4)
- PoE PIN assignment: PIN 1/2 (+), PIN 3/6 (-)
- PoE output power: 802.3af: Max. 15.4 W per port
- PoE budget: 60 W
Hardware Specifications:
- Ethernet interface: 8x...
Network switches
CHF69.90
Alfa Network APS084 - Desktop Ethernet Switch, 8-Port 10/100 Mbps with 4-Port PoE
8 ports
4. Alfa Network AGS05A - 5-Port Mini Metal Gigabit Switch
ALFA Network AGS05A - 5-Port Mini Metal Gigabit Switch
The AGS05A Gigabit Ethernet switch is designed for easy installation and high performance in an environment where network traffic and the number of users are continuously increasing. With the latest switching technology, the AGS05A can fully support high-speed switching on all ports. This advanced technology allows users to take full advantage of the network load, regardless of the network's demands.
Key Features and Benefits:
Easy installation, maximized use of network performance. The AGS05A requires no configuration; users can simply plug it in and get started without the hassle of setting up the device.
Network Expansion:
The AGS05A is a powerful Gigabit Ethernet solution with the best price-performance ratio. Each connected device has its own full-duplex 2000 Mbps bandwidth, providing users with the best network solution. By connecting an AGS05A to your router or another switch, you can add more computers to your network.
Maximizing Investment:
Set up network solutions for friends, family, or facilities within a bandwidth.
Compact Design:
Small and compact build to integrate the AGS05A anywhere.
Model: AGS05A
Physical Interfaces: 5x 10/100/1000Base-T auto-negotiation Ports
LED Indicators: System: POWER, Port: Link/Activity, 1000M
Performance:
Switching Capacity: 16 Gbps
MAC Address Table: 8K
Packet Buffer Size: 14 Kb
Features: Full-duplex 2000 Mbps bandwidth on each port, Store and Forward switching methods, Broadcast Storm Control, IEEE 802.3x Flow Control for full-duplex and Back-Pressure for half-duplex, Non head-of-line blocking architecture
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x
Power Supply: External power adapter: AC/DC 9 V/1.0 A
Power Consumption: 9...
