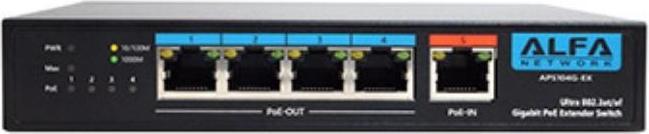

Alfa Network APS104G-EX - 60 W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch

APS104G-EX - 60 W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch

The APS104G-EX 4-Port 10/100/1000M 802.3at PoE switch seamlessly meets the demands of high-performance PoE network devices with fast Ethernet connectivity. With a power output of up to 30 W per port, the APS104G-EX supplies PoE-enabled devices over standard Cat. 5E/Cat. 6 cables. By providing power and data over Ethernet from a single device, the APS104G-EX not only simplifies cabling tasks but also extends remote power supply for PoE PD devices (IP cameras, wireless APs, or IP phones) up to a maximum distance of 100 meters.

The APS104G-EX is environmentally friendly and supports the latest energy-saving technologies, including the energy-efficient Ethernet mode (EEE; defined in IEEE 802.3az), to reduce the power consumption of the network system.

Standards
Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network Media: 10BASE-T: UTP cables of categories 3, 4, 5 (≤ 100 m); 100BASE-TX: UTP cables of category 5, 5e (≤ 100 m); 1000BASE-T: UTP cables of category 5e, 6 (≤ 100 m)
Energy Saving: IEEE 802.3az
MAC Address Table: 2K, Auto-Learning, Auto-Aging
Switch Architecture: Store-and-Forward
Switch Fabric: 10 Gbit/s
Flow Control: IEEE 802.3x Pause Frame for Full Duplex; Back Pressure for Half Duplex

Hardware Specifications
Ethernet Ports: 5x 10/100/1000 BASE-T RJ45 Auto-MDI/MDI-X ports
PoE PD Port (Power-In): Port 5, 802.3bt PoE End- and Mid-Span PD compatible, maximum 60 Watts input
PoE Injector (Power-Out): Ports 1 - 4 with 802.3at/af PoE, maximum 30/15.4 Watts output
LED: PWR (green), max. (orange), PoE (orange), 10/100 Mbit/s LNK/ACT (orange), 1000 Mbit/s LNK/ACT (green)
Power Requirements: 802.3bt PoE (optional: DC adapter)
Power over Ethernet
PoE Input Requirement: 802.3bt Ultra PoE
PoE Output Power 802.3af: maximum 15.4 Watts, 802.3at maximum 30.8 Watts
PoE Power Budget...
