Best selling Network accessories from Exsys
This page always stays fresh and updates automatically.
1. Exsys Ethernt PoE+ Splitter 10/100Mbps 802.3at,12VDC/2A/24W
The Ethernet PoE+ Splitter EX-60320 divides the signal from a PoE power supply (PSE) into data and power, outputting both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs and utilize their power supply. It complies with the PoE+ standard IEEE 802.3at and provides a voltage of 12 VDC with a maximum power of 21 W at the DC connector for powering the device. The compact design as an adapter cable offers extremely flexible application possibilities.
- Separates data and power from a PoE signal to power non-PoE-capable Ethernet devices
- Reduces system cabling, improves system stability and safety, and lowers maintenance costs
- Output voltage at the DC connector: 12 VDC, maximum 21 W
- Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE)
- 10/100Base-TX Ethernet
- Plug and play, no configuration or installation required
- LED status indicator for PoE power supply
- Compact design as a cable adapter
- Housing made of ABS and flame-retardant polycarbonate plastic
- 2 kV isolation protection, protection against short circuit, overcurrent, and overheating.

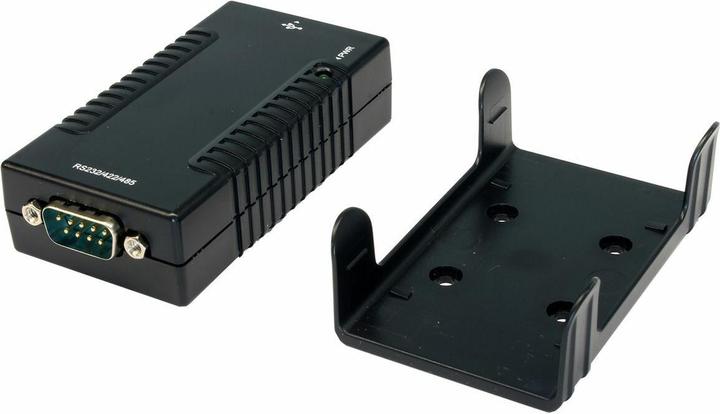

2. Exsys EX-1331-4KVIS, USB 2.0 to
The EX-1331-4KVIS USB 2.0 to Serial RS-232/422/485 in a plastic housing provides a serial RS-232, 422, or 485 High Performance UART 16C550 combo outputs with 15KV ESD surge protection and 4KV optical isolation. It is designed to add an additional serial output in a compact plastic case for desktop computers or notebooks via the USB 2.0 bus. With easy installation, the computer does not need to be opened, and the EX-1331-4KVIS can be installed while the system is running. The included EX-K1552V cable with A-type to B-type connector can be attached to the EX-1331-4KVIS using thumb screws without the need for a screwdriver, preventing the cable from coming loose. Optionally, the EX-1331-4KVIS can be mounted on a DIN rail in a 19” rack using the EX-6099 (DIN-Rail Kit).
3. Exsys RS-232 to RS-232 converter with optical isolation
The EX-47920 RS-232 to RS-232 adapter can be used with any PC, workstation, notebook, or server that has an RS-232 interface, thereby protecting your RS-232 peripheral device from overvoltage and providing optical isolation. The EX-47920 features a DB9 socket that can be directly connected to the PC. The DB9 socket is configured as a DCE port, isolating the three RS-232 signals (TXD, RXD, and GND) from the DB9 connector, which is configured as a DTE. The EX-47920 is compatible with both new and older RS-232 devices. It is easy to install without needing to turn off the PC. Thus, the EX-47920 offers a quick way to upgrade the RS-232 interface with optical isolation and overvoltage protection.
- Supports up to 2.5 kV optical isolation
- Supports up to 15 kV ESD overvoltage protection
- Supports three signals - TXD, RXD, and GND
- DCE RS-232 port: DB9 socket with TXD, RXD, and GND signals
- DTE RS-232 port: DB9 connector with TXD, RXD, and GND signals
- Requires +5V DC external power, which can be supplied with the included power adapter or via the USB port using the USB-to-DC-jack cable
- No drivers needed for all operating systems
- Compact size.
4. Exsys Panel mount adapter RJ45 f-f
The Exsys RJ45 BU-BU mounting adapter is a practical solution for network connections in compact spaces. This adapter allows for easy installation on panels or enclosures and is particularly suitable for applications where space is limited. With its compact design, it provides an efficient way to make digital connections accessible, whether in conference rooms, at workstations, or as a service interface for technicians. The adapter features two RJ45 sockets that ensure reliable data transmission according to CAT.5e standards. Installation is secure with two M3 screws arranged 22 mm apart, requiring a cutout in the panel of 17 x 17 mm. The necessary screws are included in the package, making installation easier.
- Compact design for applications with limited space
- Easy installation on panels or enclosures
- Two RJ45 sockets for reliable data transmission
- Includes mounting accessories (2 M3 screws).
Network accessories
Quantity discount
CHF14.80 per piece for 4 units
Exsys Panel mount adapter RJ45 f-f
5. Exsys EX-1115 10 piece
With the EX-1115, unused RJ-45 sockets can be protected from dirt and other influences. The EX-1115 is inserted into the RJ-45 sockets, ensuring that no foreign objects or dust can enter. If needed, the protective caps can be easily removed.
Features:
- Protective cover for RJ-45 sockets
- Easy to install and remove
- Protects against dust, dirt, and water splashes
Specifications:
- Hardware System: For all RJ-45 sockets
- Material: Rigid plastic
- Operating temperature: 0°C to 55°C
- Storage temperature: -40°C to 75°C
- Relative humidity: 5% to 95%
- Weight: 100 g
Delivery includes:
- 10x EX-1115.
6. Exsys Industrial PoE++ Gigabit Splitter 36W
The Gigabit Ethernet PoE+ Splitter EX-60326 separates the signal from a PoE power supply (PSE) into data and power, outputting both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs and utilize their power supply. It complies with the PoE++ standard IEEE 802.3bt and provides a voltage of 12VDC with a maximum power of 36W at the terminal block for powering the device. Thanks to its robust metal housing and extended operating temperature range of -40°C to 80°C, it is suitable for a variety of applications even in harsh environments. The package includes a pre-assembled DIN rail kit and a wall mount bracket.
Package contents: EX-60326, DIN rail kit (pre-assembled), wall mount kit, manual
Separates data and power from a PoE signal to power non-PoE-capable Ethernet devices.
Output voltage via terminal block: 12VDC, maximum 36W.
Fully compliant with IEEE 802.3af/at/bt Power Over Ethernet (PoE).
10/100/1000Base-T Gigabit Ethernet.
Plug and play, no configuration or installation required.
LED status indicator for power supply and PoE.
Robust, compact metal housing, IP40.
Includes DIN rail kit and wall mount bracket.
Extended operating temperature range of -40°C to +80°C.
7. Exsys Industrial PoE+ Gigabit Splitter 20W
The Gigabit Ethernet PoE+ Splitter EX-60325 separates the signal from a PoE power supply (PSE) into data and power, providing both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs and utilize their power supply. It complies with the PoE+ standard IEEE 802.3at and provides a voltage of 12 VDC with a maximum power of 20 W at the terminal block for powering the device. Thanks to its robust metal housing and extended operating temperature range of -40 °C to 80 °C, it is suitable for a variety of applications even in harsh environments. The package includes a DIN rail kit (pre-assembled) and a wall mounting bracket.
Package contents: EX-60325, DIN-Rail Kit (pre-assembled), wall mounting kit, manual.
Separates data and power from a PoE signal to power non-PoE-capable Ethernet devices. Output voltage via terminal block: 12 VDC, maximum 20 W. Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE). 10/100/1000Base-T Gigabit Ethernet. Plug and Play, no configuration or installation required. LED status indicator for power supply and PoE. Robust, compact metal housing, IP40. Includes DIN rail kit and wall mounting bracket. Extended operating temperature range of -40 °C to +80 °C.
8. Exsys Ethernt PoE++ Splitter 10/100/1000M 802.3bt,24VDC/2A/48W
The Gigabit Ethernet PoE+ Splitter EX-60321 separates the signal from a PoE power supply (PSE) into data and power, providing both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs and utilize their power supply. It complies with the PoE+ standard IEEE 802.3at and provides a voltage of 24 VDC with a maximum power of 30 W at the terminal block for powering the end device. Thanks to its robust metal housing, it is suitable for a variety of applications even in harsh environments. A pre-assembled DIN rail kit is included in the delivery.
- Separates data and power from a PoE signal to power non-PoE-capable Ethernet devices.
- Reduces system cabling, improves system stability and safety, and lowers maintenance costs.
- Output voltage at the DC connector: 24 VDC, maximum 30 W.
- Fully compliant with IEEE 802.3af/at/bt Power Over Ethernet (PoE).
- 10/100/1000Base-TX Ethernet.
- Plug and Play, no configuration or installation required.
- LED status indicator for power supply and PoE.
- Robust, compact metal housing, IP40.
- Includes DIN rail kit.
Network accessories
CHF56.90
Exsys Ethernt PoE++ Splitter 10/100/1000M 802.3bt,24VDC/2A/48W
PoE Splitter
Product order
See all products
